AWH 50G Series

Catalog

CONN HEADER VERT 50POS 2.54MM

Part	Current Rating (Amps)	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Mounting Type	Connector Type	Style	Contact Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Material	Insulation Color	Number of Rows [custom]	Contact Shape	Fastening Type	Features	Number of Positions	Shrouding	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Finish Thickness - Mating	Insulation Material	Pitch - Mating	Pitch - Mating	Color	Pitch	Pitch	Wire Type	Row Spacing	Row Spacing	Contact Finish	Cable Termination

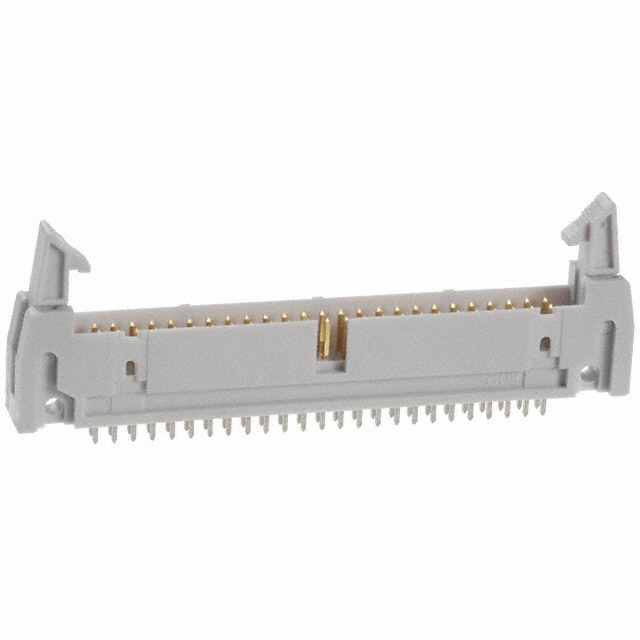

Assmann WSW Components AWH50G-0232-T-R	3 A	Tin	0.13 "	3.3 mm	Gold	Through Hole	Header	Board to Cable/Wire	Male Pin	17 mm	0.669 in	-40 C	105 ░C	UL94 V-0	Brass	Gray	2	Square	Latch Lock/Eject Hooks Long	Keying Slot	50	Shrouded - 4 Wall	All	0.1 in	2.54 mm	Solder	Flash	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm
Assmann WSW Components AWH 50G-E202-IDC						Panel Mount	Header		Male Pin								2			Feed Through	50										Gray	0.1 "	2.54 mm	Ribbon Cable	2.54 mm	0.1 "	Gold	IDC

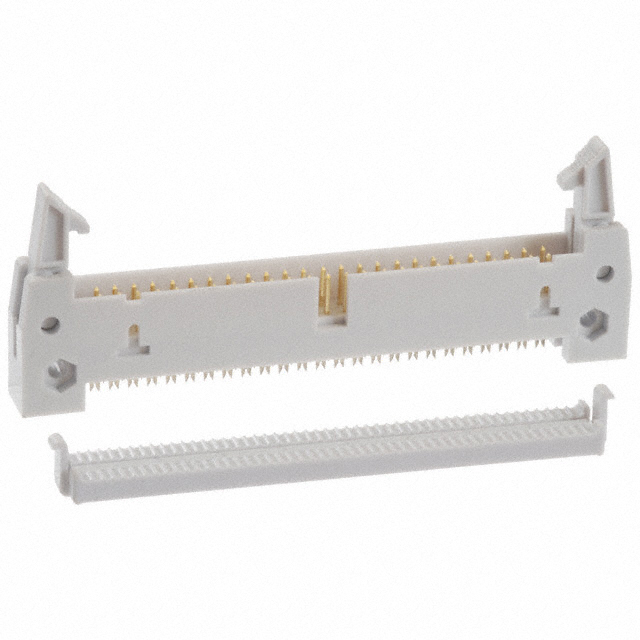

Assmann WSW Components AWH50G-0232-IDC-R						Free Hanging (In-Line)	Header		Male Pin								2		Latch Lock/Eject Hooks Long	Feed Through	50										Gray	0.1 "	2.54 mm	Ribbon Cable	2.54 mm	0.1 "	Gold	IDC

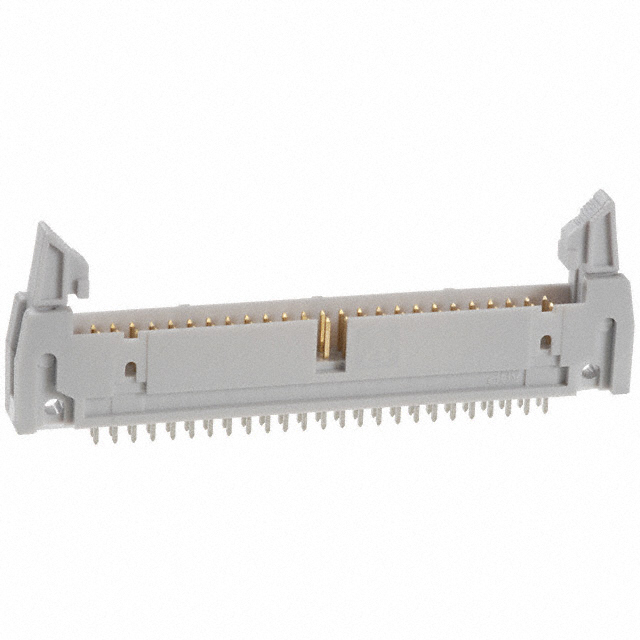

Assmann WSW Components AWH50G-0222-T-R	3 A	Tin	0.13 "	3.3 mm	Gold	Through Hole	Header	Board to Cable/Wire	Male Pin	17 mm	0.669 in	-40 C	105 ░C	UL94 V-0	Brass	Gray	2	Square	Latch Lock/Eject Hooks	Keying Slot	50	Shrouded - 4 Wall	All	0.1 in	2.54 mm	Solder	Flash	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm
Assmann WSW Components AWH50G-E232-IDC-R						Panel Mount	Header		Male Pin								2		Latch Lock/Eject Hooks Long	Feed Through	50										Gray	0.1 "	2.54 mm	Ribbon Cable	2.54 mm	0.1 "	Gold	IDC

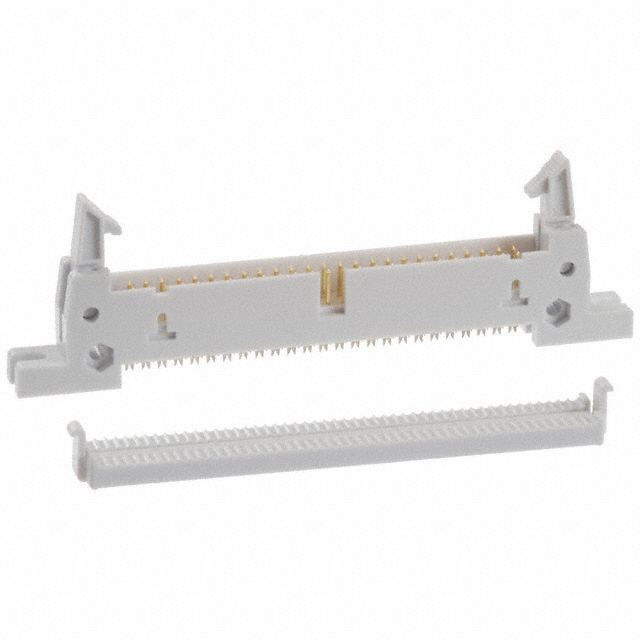

Assmann WSW Components AWH 50G-E232-IDC						Panel Mount	Header		Male Pin								2		Latch Lock/Eject Hooks Long	Feed Through	50										Gray	0.1 "	2.54 mm	Ribbon Cable	2.54 mm	0.1 "	Gold	IDC

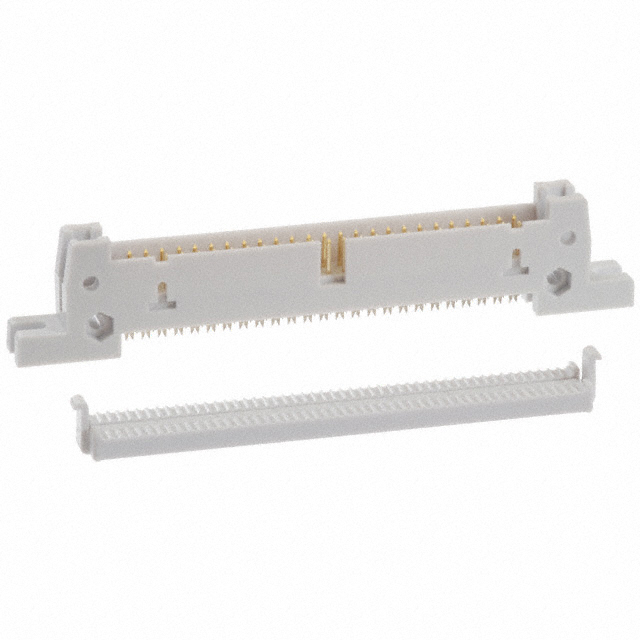

Assmann WSW Components AWH50G-E202-IDC-R						Panel Mount	Header		Male Pin								2			Feed Through	50										Gray	0.1 "	2.54 mm	Ribbon Cable	2.54 mm	0.1 "	Gold	IDC
