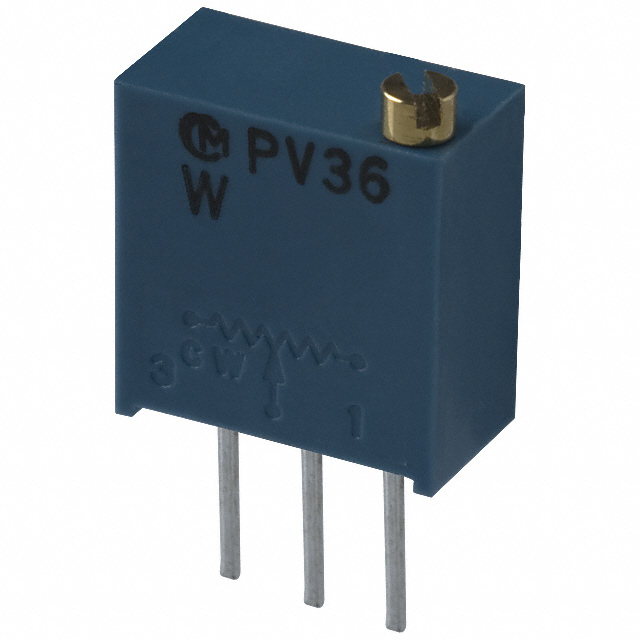

PV36W Series

Catalog

TRIMMER, MULTI TURN, CERMET, TOP ADJUST, 50 OHM, THROUGH HOLE, 25 TURNS

Part	Temperature Coefficient	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Resistive Material	Resistance	Number of Turns	Adjustment Type	Power (Watts)	Power (Watts)	Tolerance	Termination Style
Bourns Inc. PV36W500C01B00	150 ppm/°C	Through Hole	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	Cermet	50 Ohms	25	Top Adjustment	0.5 W	0.5 W	10 %	PC Pins
Bourns Inc. PV36W203A01B00	100 ppm/°C	Through Hole	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	Cermet	20 kOhms	25	Top Adjustment	0.5 W	0.5 W	10 %	PC Pins
Bourns Inc. PV36W253C01B00	100 ppm/°C	Through Hole	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	Cermet	25 kOhms	25	Top Adjustment	0.5 W	0.5 W	10 %	PC Pins
Bourns Inc. PV36W503A01B00	100 ppm/°C	Through Hole	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	Cermet	50000 Ohms	25	Top Adjustment	0.5 W	0.5 W	10 %	PC Pins
Bourns Inc. PV36W105C01B00	100 ppm/°C	Through Hole	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	Cermet	1 MOhms	25	Top Adjustment	0.5 W	0.5 W	10 %	PC Pins
Bourns Inc. PV36W102C01B00	100 ppm/°C	Through Hole	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	Cermet	1000 Ohms	25	Top Adjustment	0.5 W	0.5 W	10 %	PC Pins
Bourns Inc. PV36W204C01B00	100 ppm/°C	Through Hole	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	Cermet	200000 Ohms	25	Top Adjustment	0.5 W	0.5 W	10 %	PC Pins
Bourns Inc. PV36W500A01B00	150 ppm/°C	Through Hole	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	Cermet	50 Ohms	25	Top Adjustment	0.5 W	0.5 W	10 %	PC Pins
Bourns Inc. PV36W201A01B00	100 ppm/°C	Through Hole	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	Cermet	200 Ohms	25	Top Adjustment	0.5 W	0.5 W	10 %	PC Pins
Bourns Inc. PV36W201C01B00	100 ppm/°C	Through Hole	9.6 mm	5 mm	0.197 "	0.378 in	Rectangular - Face	Cermet	200 Ohms	25	Top Adjustment	0.5 W	0.5 W	10 %	PC Pins
