3E Series

Manufacturer: TE Connectivity Corcom Filters

Catalog

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Connector Style	Current Rating - Filter	Filter Type	Approval Agency	Connector Type	Termination	Termination	Termination	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Current Rating - Appliance Inlet	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC	Inductance	Termination Style	Frequency - Operating [Max]	Frequency - Operating [Min]	Applications	Current	Panel Cutout Dimensions	Features
TE Connectivity Corcom Filters 3EC2	30.48 mm	22.86 mm	Flange Panel Mount Right Angle	IEC 320-C14	3 A	Filtered (EMI RFI) - Commercial	CSA UL VDE	Receptacle Male Blades	6.3 mm	Quick Connect	0.25 "	120 VAC	250 VAC	3 A

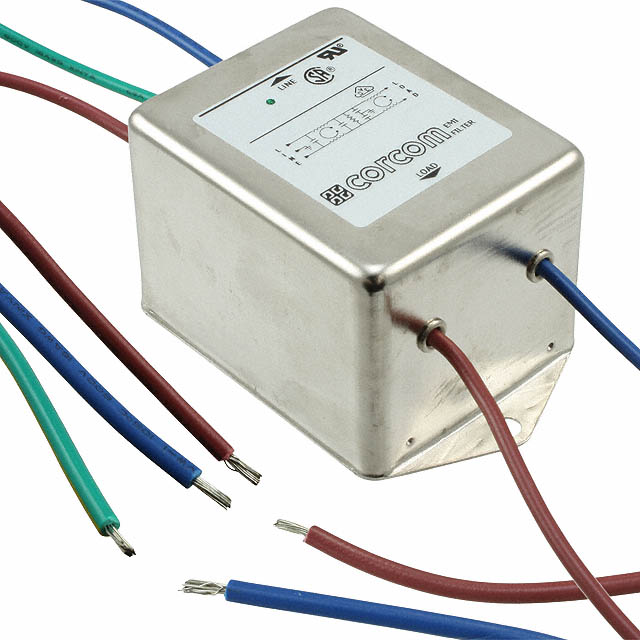

TE Connectivity Corcom Filters 3EQ3			Chassis Mount			Single Phase	CSA UR VDE								Two Stage	40 °C	-10 °C	250 V	32.18 mH	Wire Leads	60 Hz	50 Hz	General Purpose	3 A

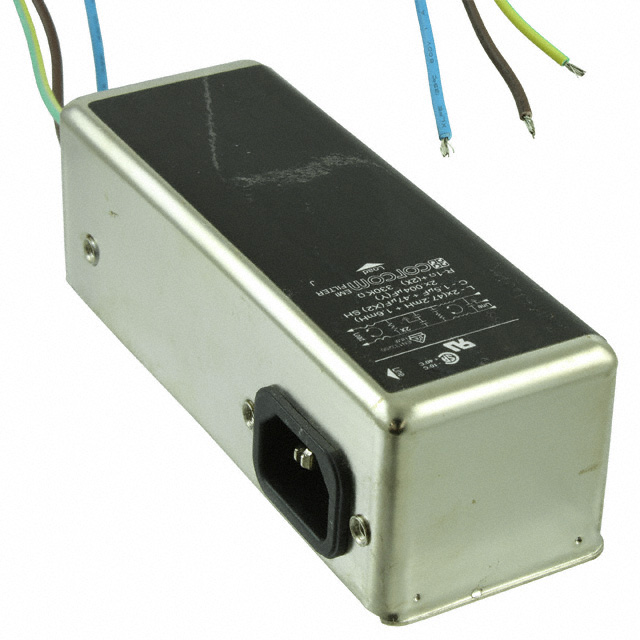

TE Connectivity Corcom Filters 3EQ8			Chassis Mount			Single Phase	CSA UR VDE								Single Stage	40 °C	-10 °C	250 V		IEC 320-C14 Wire Leads	60 Hz	50 Hz	General Purpose	3 A
TE Connectivity Corcom Filters 3ED1			Flange Panel Mount	IEC 320-C14	3 A	Filtered (EMI RFI) - Commercial	CSA UL VDE	Receptacle Male Blades	6.3 mm	Quick Connect	0.25 "	120 VAC	250 VAC	3 A											Variable Size	Front or Rear Side Mount
TE Connectivity Corcom Filters 3EP7M	32.89 mm	23.11 mm	Bulkhead	IEC 320-C14	3 A	Filtered (EMI RFI) - Commercial	CSA SEV UL VDE	Receptacle Male Blades	6.3 mm	Quick Connect	0.25 "	120 VAC	250 VAC	3 A

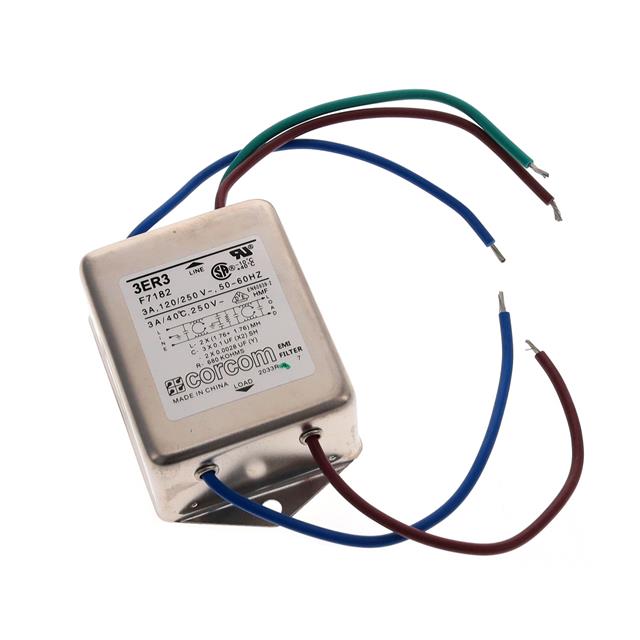

TE Connectivity Corcom Filters 3ER3			Chassis Mount			Single Phase	CSA UR VDE								Two Stage	40 °C	-10 °C	250 V	3.52 mH	Wire Leads	60 Hz	50 Hz	General Purpose	3 A

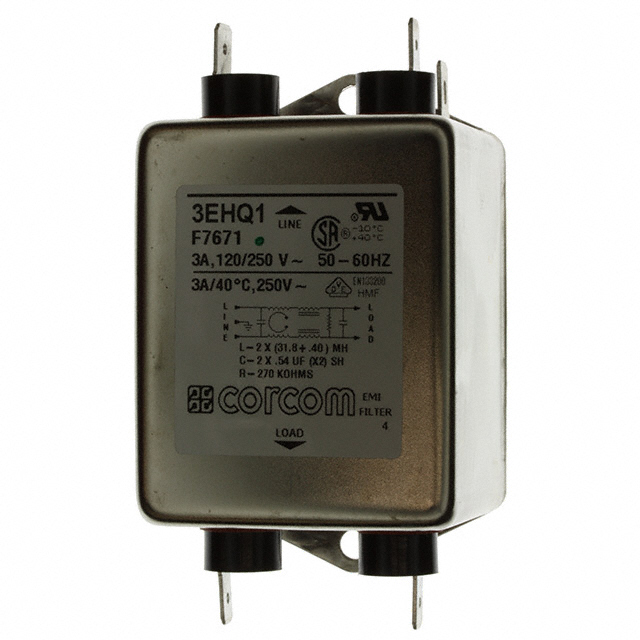

TE Connectivity Corcom Filters 3EHQ1			Chassis Mount			Single Phase	CSA UR VDE								Two Stage	40 °C	-10 °C	250 V	32.18 mH	Quick Connect	60 Hz	50 Hz	General Purpose	3 A

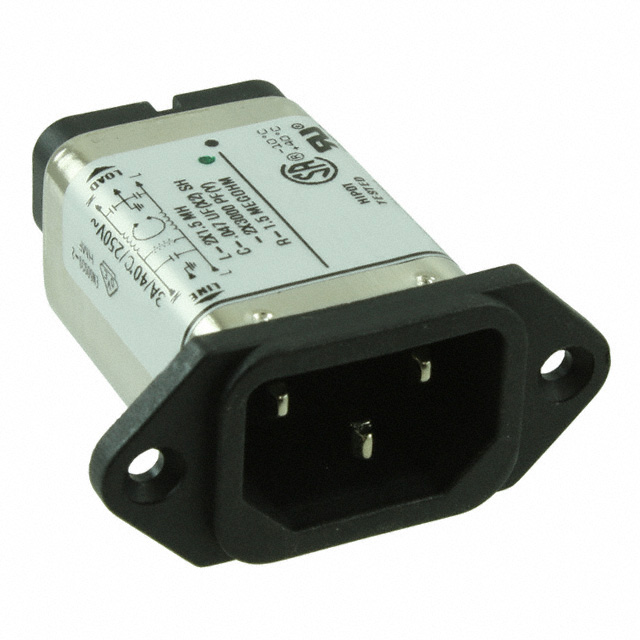

TE Connectivity Corcom Filters 3EEB1			Flange Panel Mount	IEC 320-C14	3 A	Filtered (EMI RFI) - Commercial	CSA UL VDE	Receptacle Male Blades	6.3 mm	Quick Connect	0.25 "	120 VAC	250 VAC	3 A											Variable Size	Front or Rear Side Mount

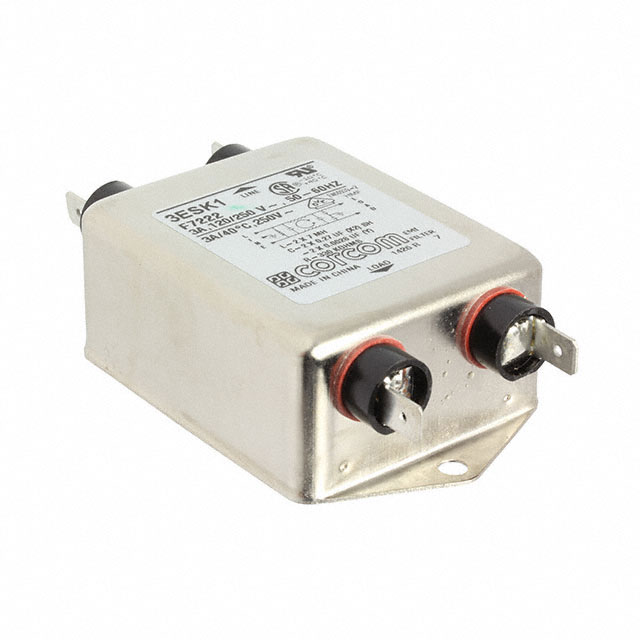

TE Connectivity Corcom Filters 3ESK1			Chassis Mount			Single Phase	CSA UR VDE								Single Stage	40 °C	-10 °C	250 V	7.06 mH	Quick Connect	60 Hz	50 Hz	General Purpose	3 A
TE Connectivity Corcom Filters 3EEB2	30.48 mm	22.86 mm	Flange Panel Mount Right Angle	IEC 320-C14	3 A	Filtered (EMI RFI) - Commercial	CSA UL VDE	Receptacle Male Blades	6.3 mm	Quick Connect	0.25 "	120 VAC	250 VAC	3 A
