PML-D2 Series

Catalog

AC/DC CONVERTER 24V 5V 100W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Applications	Current - Output 2	Efficiency	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Type	Features	Voltage - Output 2	Current - Output 1	Power (Watts)	Voltage - Output 1

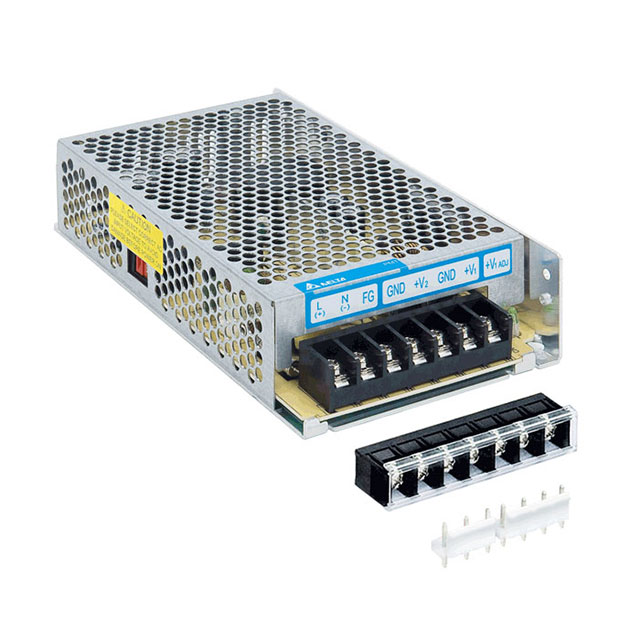

Delta Electronics PML-D2V100W1AG	70 °C	-10 °C	3000 V	ITE (Commercial)	3 A	84 %	CB CCC CE cURus TUV	88 VAC 176 VAC	132 VAC 264 VAC	2	38 mm	1.5 in	97 mm	3.82 in	178 mm	7.01 in	Chassis Mount	Open Frame	Adjustable Output	5 V	3.5 A	100 W	24 V

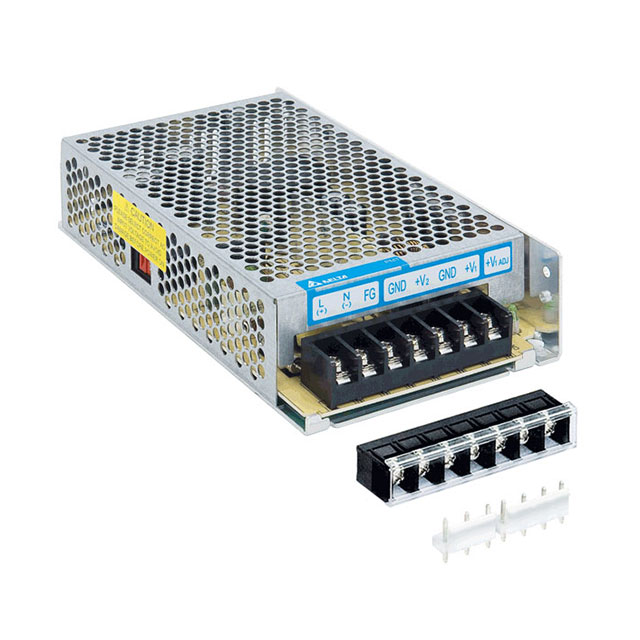

Delta Electronics PML-D2V100W1AH	70 °C	-10 °C	3000 V	ITE (Commercial)	3 A	84 %	CB CCC CE cURus TUV	88 VAC 176 VAC	132 VAC 264 VAC	2	38 mm	1.5 in	97 mm	3.82 in	178 mm	7.01 in	Chassis Mount	Open Frame	Adjustable Output	5 V	3.5 A	100 W	24 V
Delta Electronics PML-D2V100W1AA	70 °C	-10 °C	3000 V	ITE (Commercial)	3 A	84 %	CB CCC CE cURus TUV	88 VAC 176 VAC	132 VAC 264 VAC	2	38 mm	1.5 in	97 mm	3.82 in	178 mm	7.01 in	Chassis Mount	Open Frame	Adjustable Output	5 V	3.5 A	100 W	24 V
