79104 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

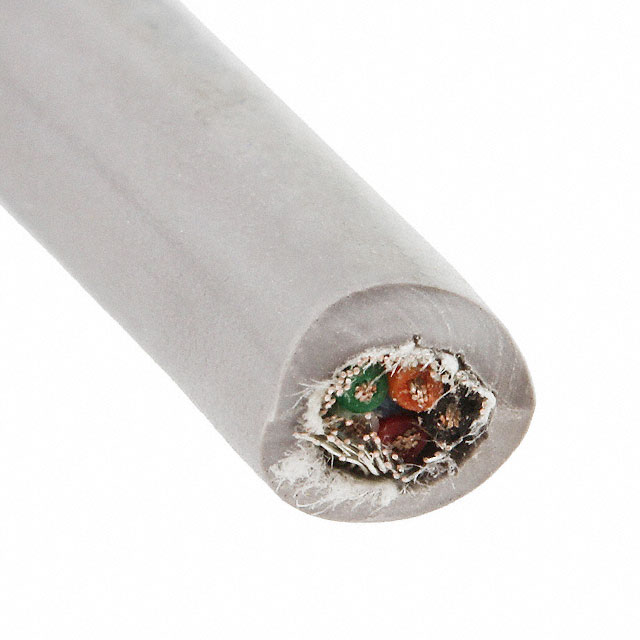

CABLE 5CON 20AWG SLATE SHLD 100'
| Part | Shield Coverage | Shield Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Conductor Insulation | Features | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Jacket (Insulation) Material | Jacket Color | Voltage | Cable Type | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | Braid | 0.25 " | 6.35 mm | 100 ft | 30.5 m | Copper Tinned | 10 | 30 AWG | ISO 10993 | Polyphenylene Ether Modified (mPPE) | Biological Compatibility | -40 C | 105 ░C | 0.035 in | 0.889 mm | 20 AWG | Polyphenylene Ether Modified (mPPE) | Slate | 600 V | Multi-Conductor | 5 | ||
ALPHA WIRE | 85 % | Copper Tinned | Braid | 0.25 " | 6.35 mm | Copper Tinned | 10 | 30 AWG | ISO 10993 | Polyphenylene Ether Modified (mPPE) | Biological Compatibility | -40 C | 105 ░C | 0.035 in | 0.889 mm | 20 AWG | Polyphenylene Ether Modified (mPPE) | Slate | 600 V | Multi-Conductor | 5 | 304.8 m | 1000 ft |
