EGG.0K Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 9P GOLD SLDR CUP

Part	Shielding	Orientation [custom]	Number of Positions	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Primary Material	Insert Material	Shell Material	Mounting Type	Contact Finish - Mating	Mounting Feature	Current Rating (Amps)	Fastening Type	Shell Size - Insert	Color	Connector Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Termination	Shell Size - Insert [custom]
LEMO EGG.0K.309.KLL	Shielded	G	9	IP66 IP68	1.5 Ám	59 Áin	UL94 V-0	Metal	Polyetheretherketone (PEEK)	Brass	Panel Mount	Gold	Bulkhead - Rear Side Nut	2 A	Push-Pull	309	Black	Receptacle Female Sockets	Bronze	200 °C	-55 C
LEMO EGG.0K.901.CLK	Shielded	G	2	IP66 IP68			UL94 V-0	Metal	Polyetheretherketone (PEEK)	Brass	Panel Mount	Gold	Bulkhead - Rear Side Nut	10 A	Push-Pull	302	Silver	Receptacle Female Sockets	Alumel Chromel	200 °C	-55 C	Chrome
LEMO EGG.0K.302.CLL	Shielded	G	2	IP66 IP68	1.5 Ám	59 Áin	UL94 V-0	Metal	Polyetheretherketone (PEEK)	Brass	Panel Mount	Gold	Bulkhead - Rear Side Nut	10 A	Push-Pull	302	Silver	Receptacle Female Sockets	Bronze	200 °C	-55 C	Chrome
LEMO EGG.0K.302.CYM	Shielded	G	2	IP66 IP68	1.5 Ám	59 Áin	UL94 V-0	Metal	Polyetheretherketone (PEEK)	Brass	Panel Mount	Gold	Bulkhead - Rear Side Nut	10 A	Push-Pull	302	Silver	Receptacle Female Sockets	Bronze	200 °C	-55 C	Chrome	Crimp
LEMO EGG.0K.307.CLL	Shielded	G	7	IP66 IP68	1.5 Ám	59 Áin	UL94 V-0	Metal	Polyetheretherketone (PEEK)	Brass	Panel Mount	Gold	Bulkhead - Rear Side Nut	2.5 A	Push-Pull		Silver	Receptacle Female Sockets	Bronze	200 °C	-55 C	Chrome		307
LEMO EGG.0K.306.KLL	Shielded	G	6	IP66 IP68	1.5 Ám	59 Áin	UL94 V-0	Metal	Polyetheretherketone (PEEK)	Brass	Panel Mount	Gold	Bulkhead - Rear Side Nut	2.5 A	Push-Pull	306	Black	Receptacle Female Sockets	Bronze	200 °C	-55 C
LEMO EGG.0K.309.CLN	Shielded	G	9	IP66 IP68	1.5 Ám	59 Áin	UL94 V-0	Metal	Polyetheretherketone (PEEK)	Brass	Panel Mount Through Hole	Gold	Bulkhead - Rear Side Nut	2 A	Push-Pull	309	Silver	Receptacle Female Sockets	Bronze	200 °C	-55 C	Chrome	Solder
LEMO EGG.0K.304.CLL	Shielded	G	4	IP66 IP68	1.5 Ám	59 Áin	UL94 V-0	Metal	Polyetheretherketone (PEEK)	Brass	Panel Mount	Gold	Bulkhead - Rear Side Nut	7 A	Push-Pull	304	Silver	Receptacle Female Sockets	Bronze	200 °C	-55 C	Chrome

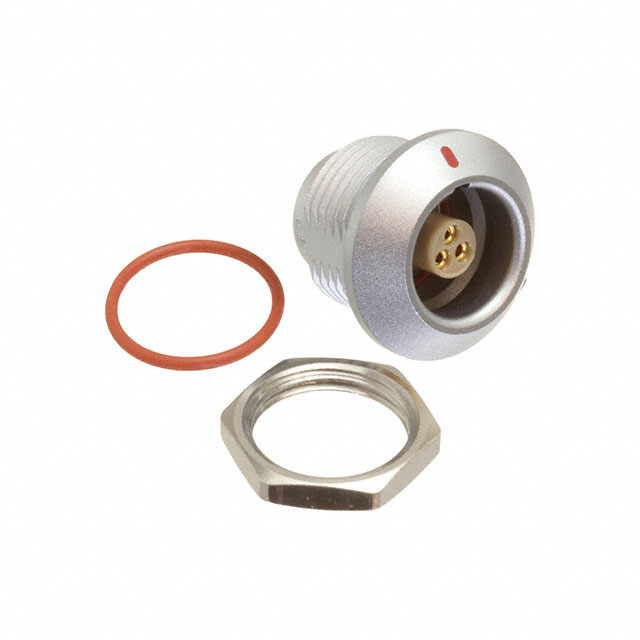

LEMO EGG.0K.303.CLL	Shielded	G		IP66 IP68	1.5 Ám	59 Áin	UL94 V-0	Metal	Polyetheretherketone (PEEK)	Brass	Panel Mount	Gold	Bulkhead - Rear Side Nut	8 A	Push-Pull	303	Silver	Receptacle Female Sockets	Bronze	200 °C	-55 C	Chrome
LEMO EGG.0K.303.CYM	Shielded	G		IP66 IP68	1.5 Ám	59 Áin	UL94 V-0	Metal	Polyetheretherketone (PEEK)	Brass	Panel Mount	Gold	Bulkhead - Rear Side Nut	8 A	Push-Pull	303	Silver	Receptacle Female Sockets	Bronze	200 °C	-55 C	Chrome	Crimp
