1348A Series
Manufacturer: Belden Inc.
Beta
⌘K

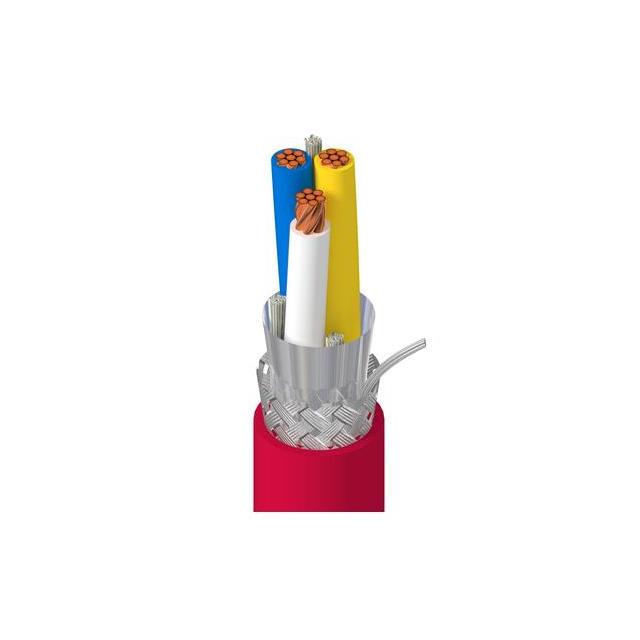

CABLE 3COND 20AWG RED SHLD
| Part | Shield Material | Shield Coverage | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket Color | Length | Length | Features | Wire Gauge | Conductor Material | Number of Conductors | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 78 % 100 % | Foam High Density Polyethylene (FHDPE) | 7.7 mm | 0.303 in | 300 VDC | Braid Foil | 0.035 in | 0.889 mm | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Red | 304.8 m | 1000 ft | Drain Wire | 20 AWG | Copper Bare | 3 | Multi-Conductor | -30 ░C | 60 °C | CC-Link/LT |
