GRB260B Series
Manufacturer: CW Industries
Beta
⌘K

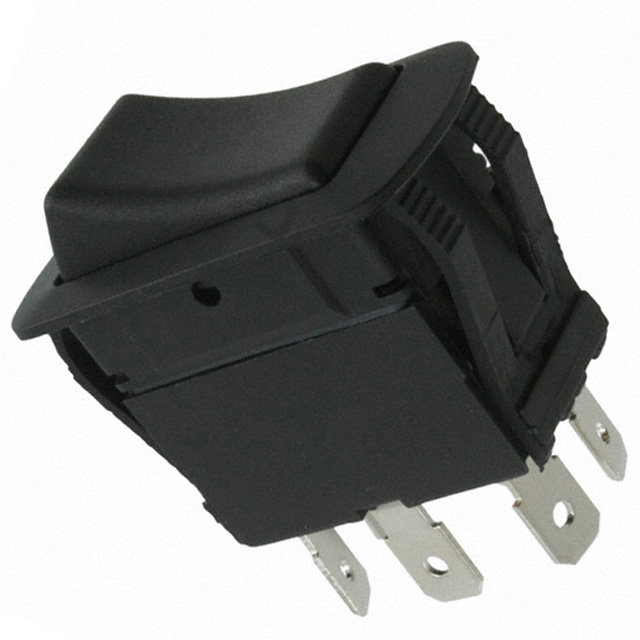

SWITCH ROCKER DPDT 20A 125V
| Part | Mechanical Life | Current Rating (Amps) | Actuator Type | Voltage Rating - AC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage Rating - DC | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Termination Style | Actuator Marking | Switch Function | Circuit | Mounting Type | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 100000 Cycles | 20 A 21 A | Concave (Curved) | 125 V | 21.2 mm | 36.6 mm | 14 V | cULus ENEC | 85 °C | -20 ░C | IP56 - Dust Protected Water Resistant | Quick Connect - 0.250" (6.3mm) | No Marking | On-On | DPDT | Panel Mount Snap-In | Black |
