NPPC321 Series

Catalog

CONN HDR 32POS 0.1 GOLD PCB R/A

Part	Contact Shape	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Finish Thickness - Mating	Number of Positions Loaded	Connector Type	Fastening Type	Material Flammability Rating	Number of Rows	Contact Finish - Post	Contact Type	Mounting Type	Pitch - Mating	Pitch - Mating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Termination	Insulation Height	Insulation Height	Insulation Color
Sullins Connector Solutions NPPC321LGBN-RC	Square	Flash	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	All	Header	Push-Pull	UL94 V-0	1	Gold	Female Socket	Right Angle Through Hole	0.1 "	2.54 mm	250 V	-40 C	105 ░C	3 A	0.124 in	3.15 mm	Gold	Solder	0.1 in	2.54 mm	Black
Sullins Connector Solutions NPPC321KFXD-RC	Square	Flash	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	All	Header Top or Bottom Entry	Push-Pull	UL94 V-0	1	Gold	Female Socket	Surface Mount	0.1 "	2.54 mm	250 V	-40 C	105 ░C	3 A			Gold	Solder	0.28 in	7.1 mm

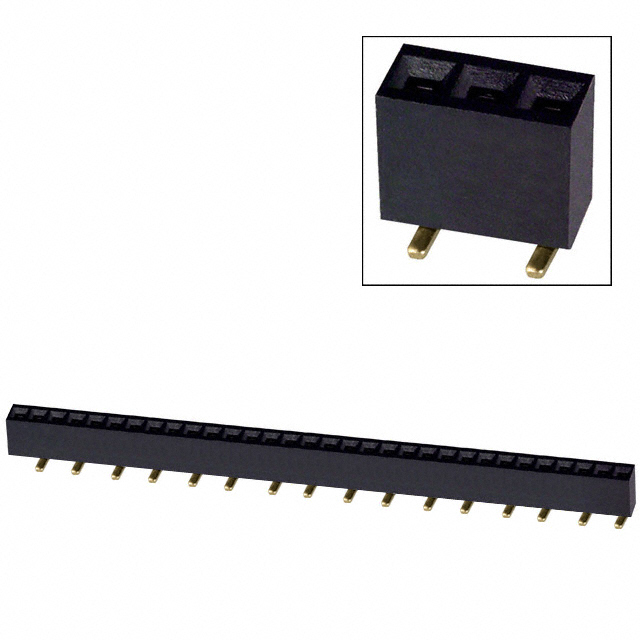

Sullins Connector Solutions NPPC321KFXC-RC	Square	Flash	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	All	Header Top or Bottom Entry	Push-Pull	UL94 V-0	1	Gold	Female Socket	Surface Mount	0.1 "	2.54 mm	250 V	-40 C	105 ░C	3 A			Gold	Solder	0.28 in	7.1 mm	Black
