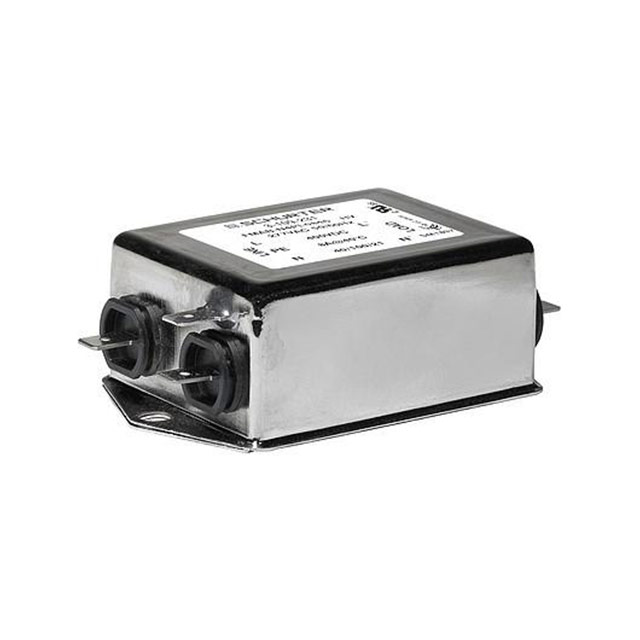

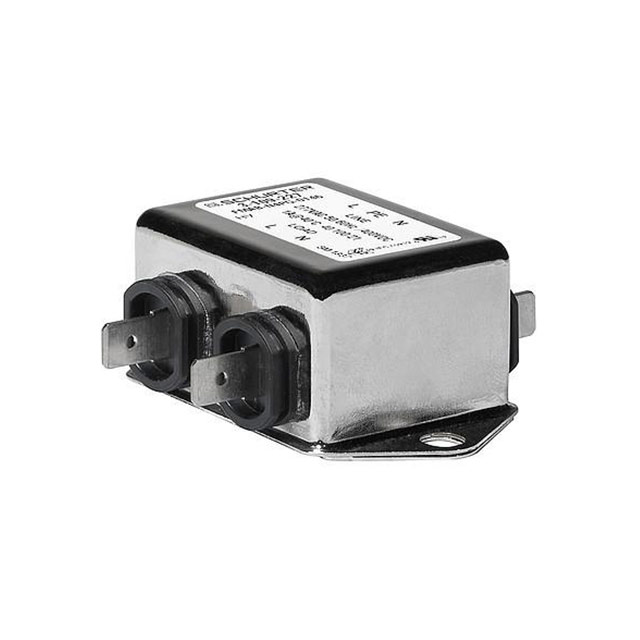

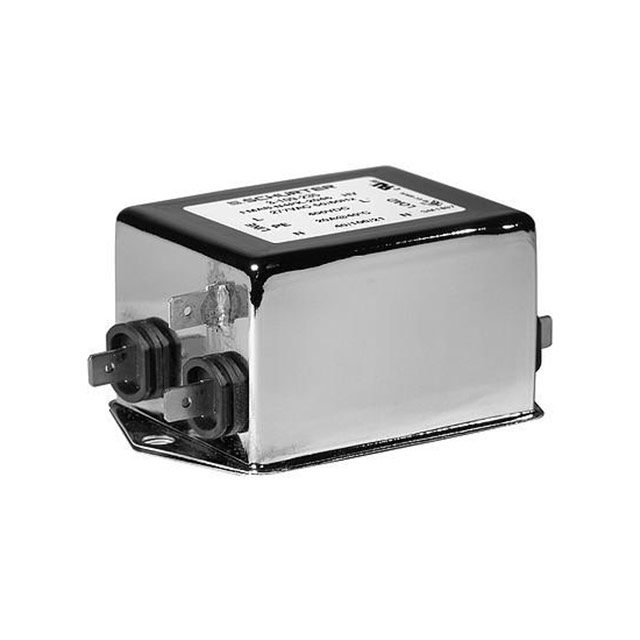

FMAB Series

Catalog

LINE FILTER 277V/400VDC 277VAC

Part	Voltage - Rated AC	Applications	Termination Style	Current	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated DC [Max]	Voltage - Rated DC [Min]	Mounting Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Approval Agency	Configuration	Filter Type
SCHURTER Inc. FMAB-N4PG-0146	277 V	General Purpose	Quick Connect	1 A	-40 C	100 °C	400 V	277 V	Chassis Mount	60 Hz	50 Hz	cURus ENEC VDE	Single Stage	Single Phase
SCHURTER Inc. FMAB-N6PK-2046	277 V	Medical	Quick Connect	20 A	-40 C	100 °C	400 V	277 V	Chassis Mount	60 Hz	50 Hz	cURus ENEC VDE	Single Stage	Single Phase
SCHURTER Inc. FMAB-N7PH-0646	277 V	Medical	Quick Connect	6 A	-40 C	100 °C	400 V	277 V	Chassis Mount	60 Hz	50 Hz	cURus ENEC VDE	Single Stage	Single Phase
SCHURTER Inc. FMAB-N6PI-1246	277 V	Medical	Quick Connect	12 A	-40 C	100 °C	400 V	277 V	Chassis Mount	60 Hz	50 Hz	cURus ENEC VDE	Single Stage	Single Phase
SCHURTER Inc. FMAB-N7PH-0446	277 V	Medical	Quick Connect	4 A	-40 C	100 °C	400 V	277 V	Chassis Mount	60 Hz	50 Hz	cURus ENEC VDE	Single Stage	Single Phase
SCHURTER Inc. FMAB-N7PK-2046	277 V	Medical	Quick Connect	20 A	-40 C	100 °C	400 V	277 V	Chassis Mount	60 Hz	50 Hz	cURus ENEC VDE	Single Stage	Single Phase
SCHURTER Inc. FMAB-N6PH-0446	277 V	Medical	Quick Connect	4 A	-40 C	100 °C	400 V	277 V	Chassis Mount	60 Hz	50 Hz	cURus ENEC VDE	Single Stage	Single Phase
SCHURTER Inc. FMAB-N7PG-0146	277 V	Medical	Quick Connect	1 A	-40 C	100 °C	400 V	277 V	Chassis Mount	60 Hz	50 Hz	cURus ENEC VDE	Single Stage	Single Phase
SCHURTER Inc. FMAB-N4PH-0446	277 V	General Purpose	Quick Connect	4 A	-40 C	100 °C	400 V	277 V	Chassis Mount	60 Hz	50 Hz	cURus ENEC VDE	Single Stage	Single Phase
SCHURTER Inc. FMAB-N7PI-0846	277 V	Medical	Quick Connect	8 A	-40 C	100 °C	400 V	277 V	Chassis Mount	60 Hz	50 Hz	cURus ENEC VDE	Single Stage	Single Phase
