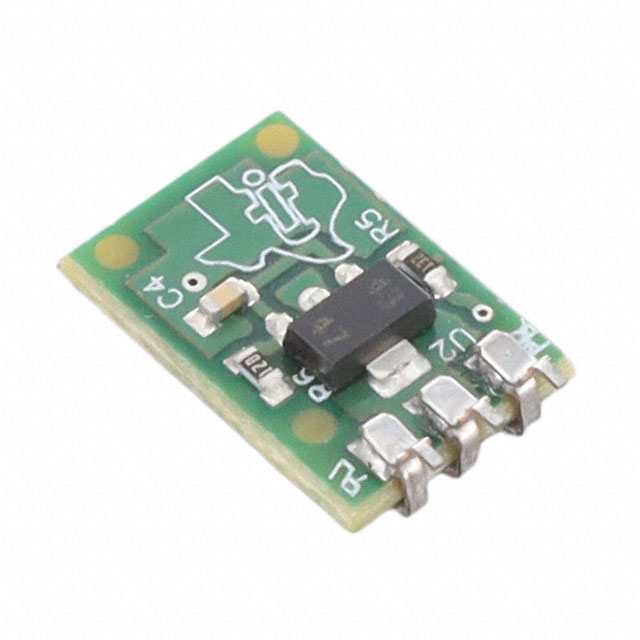

TPS76901-EP Series

Enhanced product, ultra-low power 100-mA low-dropout voltage regular

Catalog

Enhanced product, ultra-low power 100-mA low-dropout voltage regular

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Quiescent (Iq)	Mounting Type	Voltage - Output (Max) [Max]	Package / Case	Current - Output	Supplier Device Package	Output Configuration	Voltage - Input (Max) [Max]	PSRR	Voltage - Output (Min/Fixed)	Number of Regulators	Output Type	Control Features	Protection Features
Texas Instruments TPS76901SDBVTEP	-55 °C	150 °C	28 µA	Surface Mount	4.5 V	SC-74A SOT-753	100 mA	SOT-23-5	Positive	10 V	60 dB	1.2 V	1	Adjustable	Enable	Over Current Over Temperature Reverse Polarity

Catalog

Enhanced product, ultra-low power 100-mA low-dropout voltage regular

Key Features

• 100-mA Low-Dropout RegulatorAvailable in Adjustable VersionsOnly 335-µA Quiescent Current With 100 mAat 150°C1-µA Quiescent Current in Standby ModeDropout Voltage Typically 71 mV at 100 mAOver Current LimitationAPPLICATIONSDown-Hole DrillingHigh Temperature EnvironmentsAPPLICATIONSControlled BaselineOne Assembly/Test SiteOne Fabrication SiteAvailable in Extreme (–55°C/150°C) Temperature Range(1)Extended Product Life CycleExtended Product-Change NotificationProduct TraceabilityTexas Instruments’ high temperature products utilizehighly optimized silicon (die) solutions with design andprocess enhancements to maximize performance overextended temperatures.(1)Custom temperature ranges available100-mA Low-Dropout RegulatorAvailable in Adjustable VersionsOnly 335-µA Quiescent Current With 100 mAat 150°C1-µA Quiescent Current in Standby ModeDropout Voltage Typically 71 mV at 100 mAOver Current LimitationAPPLICATIONSDown-Hole DrillingHigh Temperature EnvironmentsAPPLICATIONSControlled BaselineOne Assembly/Test SiteOne Fabrication SiteAvailable in Extreme (–55°C/150°C) Temperature Range(1)Extended Product Life CycleExtended Product-Change NotificationProduct TraceabilityTexas Instruments’ high temperature products utilizehighly optimized silicon (die) solutions with design andprocess enhancements to maximize performance overextended temperatures.(1)Custom temperature ranges available

Description

The TPS76901 low-dropout (LDO) voltage regulator offers the benefits of low dropout voltage, ultralow-power operation, and miniaturized packaging. This regulator features low dropout voltages and ultralow quiescent current compared to conventional LDO regulators. The TPS76901 is ideal for micropower operations and where board space is at a premium. A combination of new circuit design and process innovation has enabled the usual PNP pass transistor to be replaced by a PMOS pass element. Because the PMOS pass element behaves as a low-value resistor, the dropout voltage is very low, and is directly proportional to the load current. Since the PMOS pass element is a voltage-driven device, the quiescent current is ultralow (28 µA maximum) and is stable over the entire range of output load current (0 mA to 100 mA). Intended for use in portable systems such as laptops and cellular phones, the ultralow-dropout voltage feature and ultralow-power operation result in a significant increase in system battery operating life. The TPS76901 also features a logic-enabled sleep mode to shut down the regulator, reducing quiescent current to 1 µA, typical at TJ= 25°C. The TPS76901 is a variable version programmable over the range of 1.2 V to 4.5 V. The TPS76901 low-dropout (LDO) voltage regulator offers the benefits of low dropout voltage, ultralow-power operation, and miniaturized packaging. This regulator features low dropout voltages and ultralow quiescent current compared to conventional LDO regulators. The TPS76901 is ideal for micropower operations and where board space is at a premium. A combination of new circuit design and process innovation has enabled the usual PNP pass transistor to be replaced by a PMOS pass element. Because the PMOS pass element behaves as a low-value resistor, the dropout voltage is very low, and is directly proportional to the load current. Since the PMOS pass element is a voltage-driven device, the quiescent current is ultralow (28 µA maximum) and is stable over the entire range of output load current (0 mA to 100 mA). Intended for use in portable systems such as laptops and cellular phones, the ultralow-dropout voltage feature and ultralow-power operation result in a significant increase in system battery operating life. The TPS76901 also features a logic-enabled sleep mode to shut down the regulator, reducing quiescent current to 1 µA, typical at TJ= 25°C. The TPS76901 is a variable version programmable over the range of 1.2 V to 4.5 V.
