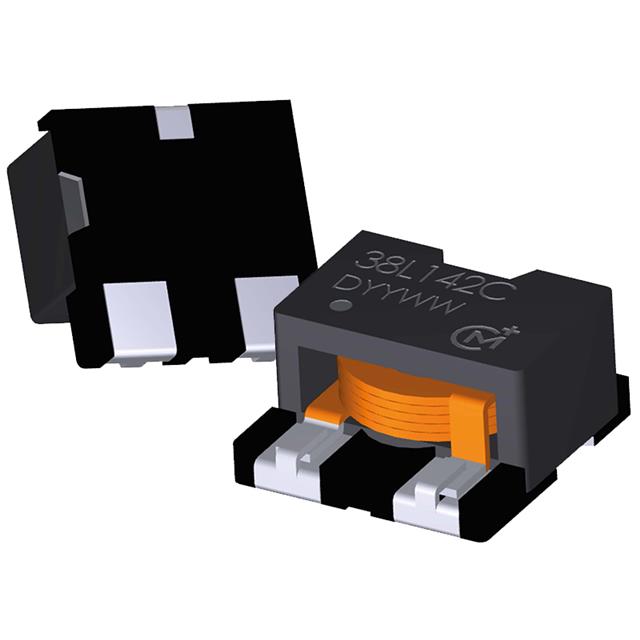

38L Series

Power Inductors - SMD 7.2 UH 5.3A

Manufacturer: Murata Electronics

Catalog

Power Inductors - SMD 7.2 UH 5.3A

Catalog

Power Inductors - SMD 7.2 UH 5.3A

Part	Type	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Shielding	Current - Saturation (Isat)	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Inductance	DC Resistance (DCR)
Murata Electronics 38L432C	Wirewound	6.8 A	5.6 mm	0.22 in	Surface Mount	Unshielded	8.8 A	100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm	Nonstandard	9.7 mOhm	130 °C	-40 C	20 %	4.3 µH
Murata Electronics 38L882C	Wirewound	4.8 A	5.6 mm	0.22 in	Surface Mount	Unshielded	5.9 A	100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm	Nonstandard	19.6 mOhm	130 °C	-40 C	20 %	8.8 µH
Murata Electronics 38L322C	Wirewound	7.8 A	5.6 mm	0.22 in	Surface Mount	Unshielded	10 A	100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm	Nonstandard		130 °C	-40 C	20 %	3.2 µH	6.8 mOhm
Murata Electronics 38L801C	Wirewound	16 A	5.6 mm	0.22 in	Surface Mount	Unshielded	20 A	100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm	Nonstandard	2.5 mOhm	130 °C	-40 C	20 %	800 nH
Murata Electronics 38L361C	Wirewound	18 A	5.6 mm	0.22 in	Surface Mount	Unshielded	27 A	100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm	Nonstandard	1.8 mOhm	130 °C	-40 C	30 %	360 nH
Murata Electronics 38L572C	Wirewound	5.8 A	5.6 mm	0.22 in	Surface Mount	Unshielded		100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm	Nonstandard	11.9 mOhm	130 °C	-40 C	20 %	5.7 µH
Murata Electronics 38L222C	Wirewound	9.6 A	5.6 mm	0.22 in	Surface Mount	Unshielded		100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm	Nonstandard	5 mOhm	130 °C	-40 C	20 %	2.2 µH
Murata Electronics 38L722C	Wirewound	5.3 A	5.6 mm	0.22 in	Surface Mount	Unshielded	6.6 A	100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm	Nonstandard	15.5 mOhm	130 °C	-40 C	20 %	7.2 µH
