MAX480 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC OPAMP GP 1 CIRCUIT 8SOIC

Part	Voltage - Input Offset	Current - Input Bias	Voltage - Supply Span (Max) [Max]	Slew Rate	Voltage - Supply Span (Min) [Min]	Supplier Device Package	Mounting Type	Amplifier Type	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output / Channel	Package / Case	Package / Case [y]	Package / Case [x]	Package / Case	Package / Case	On-State Resistance (Max) [Max]	Supplier Device Package [x]	Supplier Device Package [y]	Charge Injection	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Switch Circuit	Current - Leakage (IS(off)) (Max)	Number of Circuits [custom]	Multiplexer/Demultiplexer Circuit	Crosstalk	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel-to-Channel Matching (ΔRon)
Analog Devices Inc./Maxim Integrated MAX480ESA	25 çV	1 nA	36 V	0.012 V/µs	1.6 V	8-SOIC	Surface Mount	General Purpose	1	85 °C	-40 °C	5 mA	8-SOIC	3.9 mm	0.154 in
Analog Devices Inc./Maxim Integrated MAX480CPA	25 çV	1 nA	36 V	0.012 V/µs	1.6 V	8-PDIP	Through Hole	General Purpose	1	70 °C	0 °C	5 mA	8-DIP			0.3 in	7.62 mm
Analog Devices Inc./Maxim Integrated MAX480EPA	25 çV	1 nA	36 V	0.012 V/µs	1.6 V	8-PDIP	Through Hole	General Purpose	1	85 °C	-40 °C	5 mA	8-DIP			0.3 in	7.62 mm

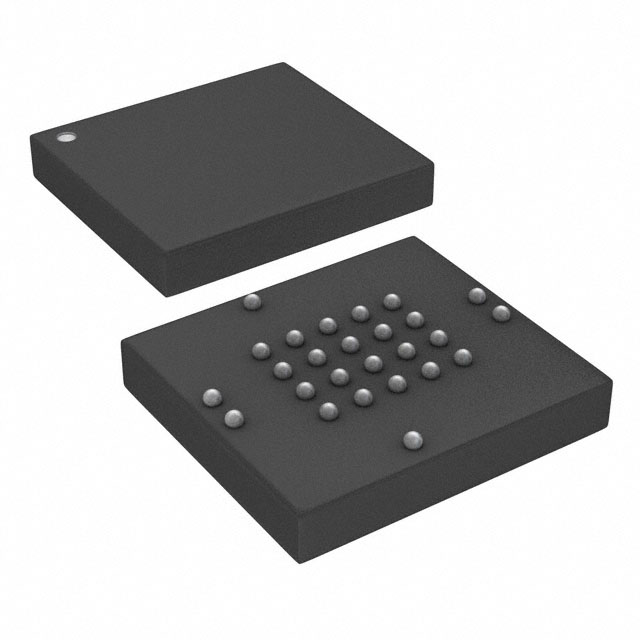

Analog Devices Inc./Maxim Integrated MAX4800CXZ						72-CSBGA	Surface Mount			70 °C	0 °C		26-LFBGA CSBGA					38 Ohm	6	5.35	820 pC	5 µs	5 µs	SPST - NO	4 µA	8	1:1	-80 dB	2.7 V	13.2 V	18 pF	18 pF	1.9 Ohm
Analog Devices Inc./Maxim Integrated MAX4800CXZ-T						72-CSBGA	Surface Mount			70 °C	0 °C		26-LFBGA CSBGA					38 Ohm	6	5.35	820 pC	5 µs	5 µs	SPST - NO	4 µA	8	1:1	-80 dB	2.7 V	13.2 V	18 pF	18 pF	1.9 Ohm
Analog Devices Inc./Maxim Integrated MAX480CSA	25 çV	1 nA	36 V	0.012 V/µs	1.6 V	8-SOIC	Surface Mount	General Purpose	1	70 °C	0 °C	5 mA	8-SOIC	3.9 mm	0.154 in
