CES-0802 Series

Catalog

SWITCH SLIDE DIP SPST 0.1A 6V

Part	Washable	Contact Material	Body Material	Electrical Life	Circuit	Height Above Board	Height Above Board	Voltage Rating	Current Rating (Amps)	Number of Positions	Mounting Type	Pitch [x]	Pitch	Pitch [x]	Contact Finish	Termination Style	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Actuator Level

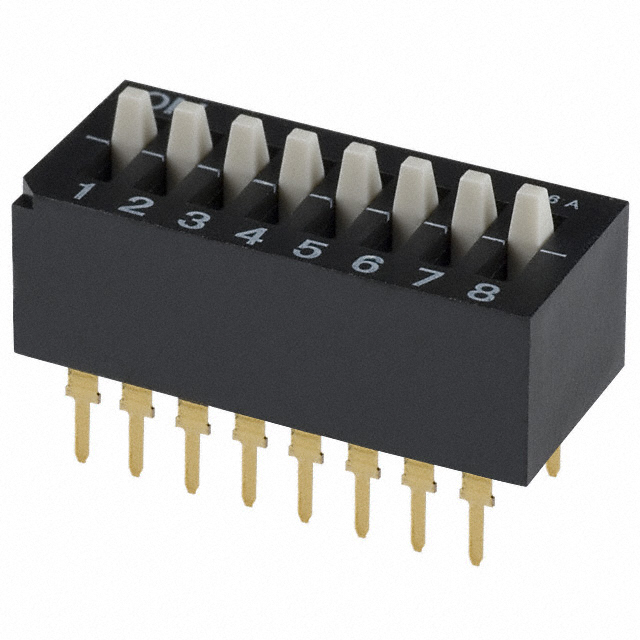

Nidec Components Corporation CES-0802MC		Copper Alloy	Polyphenylene Sulfide (PPS)	1000 Cycles	SPST	12 mm	0.472 in	6 VDC	100 mA	8	Through Hole	0.1 in	Full	2.54 mm	Gold	PC Pin	Slide (Standard)	85 °C	-40 °C	22.9 mm	0.902 "	Raised
Nidec Components Corporation CES-0802C		Copper Alloy	Polyphenylene Sulfide (PPS)	1000 Cycles	SPST	12 mm	0.472 in	6 VDC	100 mA	8	Through Hole	0.1 in	Full	2.54 mm	Gold	PC Pin	Slide (Standard)	85 °C	-40 °C	22.9 mm	0.902 "	Raised
