34146 Series

Catalog

PG R 22-16 COMM 22-18 MIL 10

Part	Wire Gauge [Max]	Wire Gauge [Min]	Insulation	Color	Terminal Type	Contact Finish	Features	Stud/Tab Size	Mounting Type	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Contact Material	Width - Outer Edges [y]	Width - Outer Edges [y]	Material - Insulation	Termination	Thickness	Thickness	Length - Overall [x]	Length - Overall [x]
TE Connectivity Raychem Cable Protection 2-34146-1	22 AWG	16 AWG	Insulated	Red	Circular	Tin	Serrated Termination	10 Stud	Free Hanging (In-Line)	0.14 in	0.105 in	3.56 mm	2.67 mm	Copper	7.14 mm	0.281 in	Poly-Vinyl Chloride (PVC)	Crimp	0.031 in	0.79 mm	0.809 in	20.55 mm

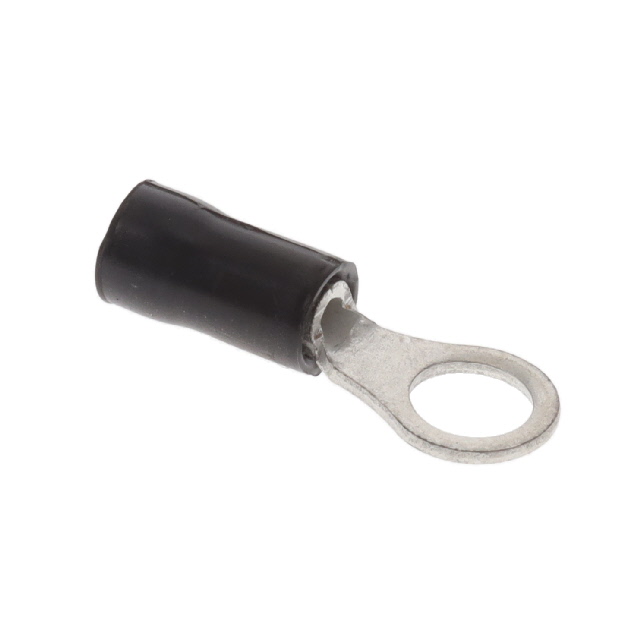

TE Connectivity Raychem Cable Protection 2-34146-5	22 AWG	16 AWG	Insulated	Black	Circular	Tin	Serrated Termination	10 Stud	Free Hanging (In-Line)	0.14 in	0.105 in	3.56 mm	2.67 mm	Copper	7.14 mm	0.281 in	Poly-Vinyl Chloride (PVC)	Crimp	0.031 in	0.79 mm	0.809 in	20.55 mm

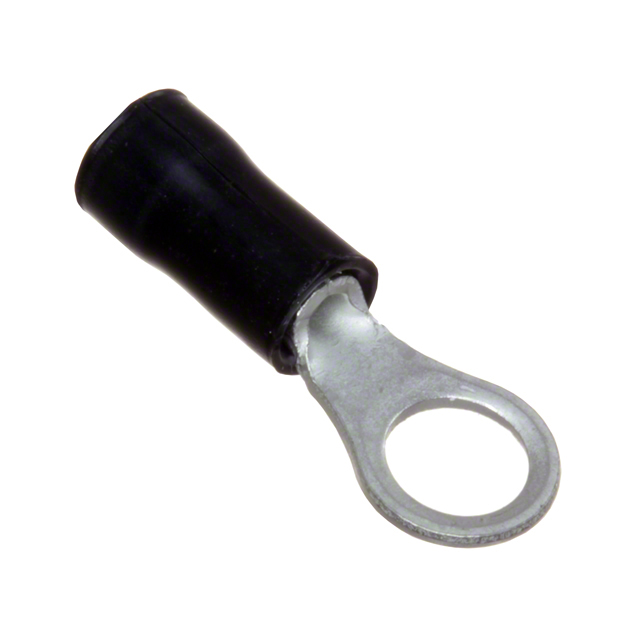

TE Connectivity Raychem Cable Protection 2-34146-4	22 AWG	16 AWG	Insulated	Black	Circular	Tin	Serrated Termination	10 Stud	Free Hanging (In-Line)	0.14 in	0.105 in	3.56 mm	2.67 mm	Copper	7.14 mm	0.281 in	Poly-Vinyl Chloride (PVC)	Crimp	0.031 in	0.79 mm	0.809 in	20.55 mm
