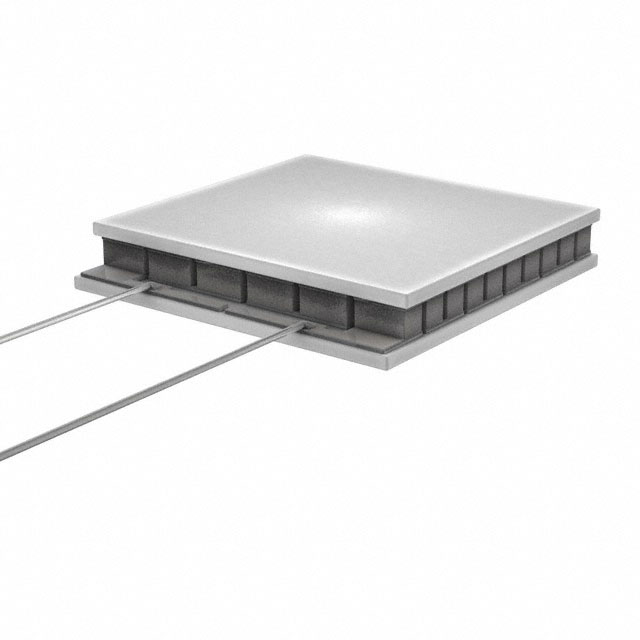

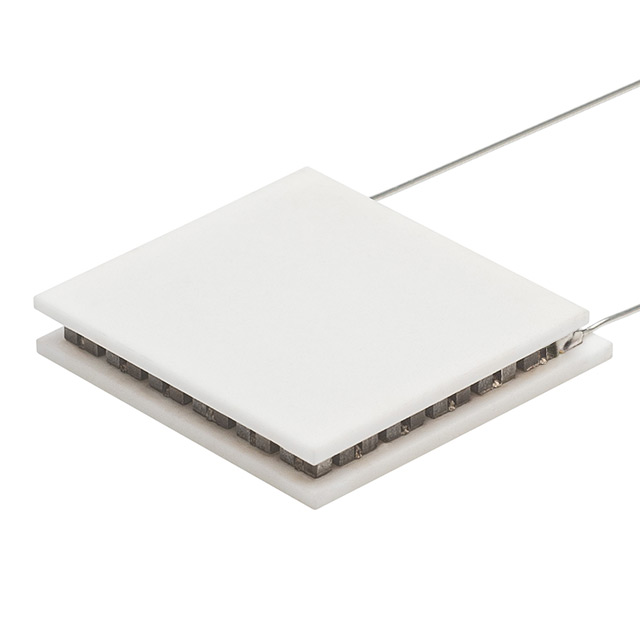

430040 Series

Catalog

HOT20,65,F2A,1312,11,EP,W2.25

Part	Voltage - Max [Max]	Features	Operating Temperature	Height [z]	Current - Max [Max]	Qmax @ Th	Size / Dimension [y]	Size / Dimension [x]	Delta Tmax @ Th	Resistance	Number of Stages

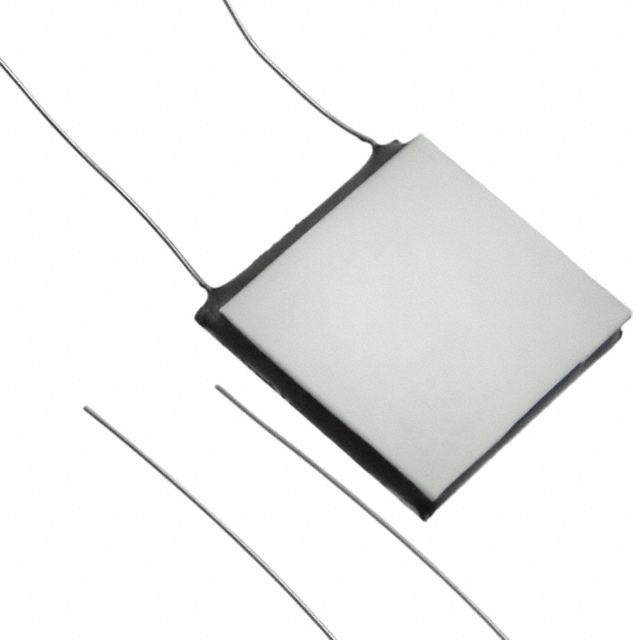

Laird Thermal Systems, Inc. 430040-512	7.4 V	Lead Wires Sealed - Epoxy	175 °C	2.18 mm	2 A	8.9 W	13.16 mm	13.16 mm	67 °C	3.39 Ohms	1

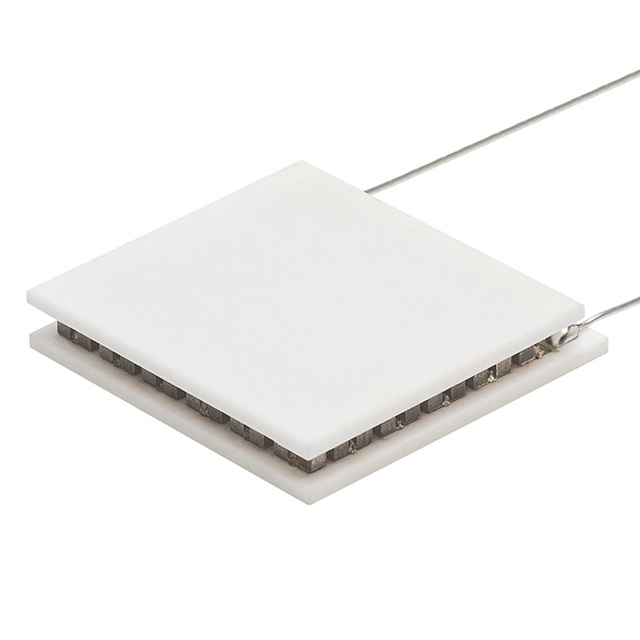

Laird Thermal Systems, Inc. 430040-514	7.4 V	Lead Wires Sealed - Silicone RTV	175 °C	2.18 mm	2 A	8.9 W	13.16 mm	13.16 mm	67 °C	3.39 Ohms	1
Laird Thermal Systems, Inc. 430040-513	7.4 V	Lead Wires Non-Sealed	175 °C	2.18 mm	2 A	8.9 W	13.16 mm	13.16 mm	67 °C	3.39 Ohms	1
