282809 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

(1-282809-2) TERMI-BLOK PLUG STACKING 12P.1

Part	Wire Strip Length [Max]	Wire Strip Length [Min]	Contact Material	Pitch [x]	Pitch [x]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Insulation Height	Insulation Height	Screw Size	Positions Per Level	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Number of Levels	Termination Style	Type	Material Flammability Rating	Torque - Screw	Torque - Screw	Number of Positions	Contact Mating Finish	Color	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Features
TE Connectivity Raychem Cable Protection 1-282809-2	7.5 mm	6 mm	Phosphor Bronze	10.16 mm	0.4 in	30 AWG	12 AWG	0.61 in	15.49 mm	M3	12	Free Hanging (In-Line)	-40 °C	110 °C	3 mm˛	0.05 mm˛	1	Screw - Rising Cage Clamp	Plug Female Sockets	UL94 V-0	0.79 Nm	7 Lb-In	12	Tin	Green

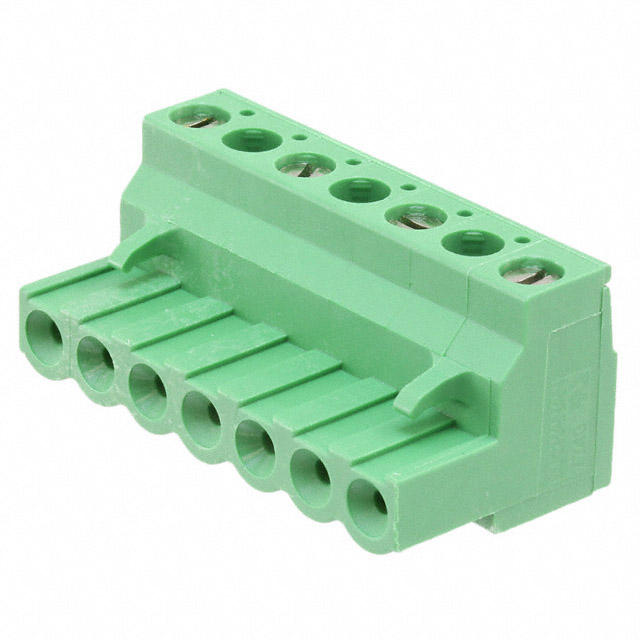

TE Connectivity Raychem Cable Protection 282809-4	7.5 mm	6 mm	Phosphor Bronze	10.16 mm	0.4 in	30 AWG	12 AWG	0.61 in	15.49 mm	M3	4	Free Hanging (In-Line)	-40 °C	110 °C			1	Screw - Rising Cage Clamp	Plug Female Sockets	UL94 V-0	0.79 Nm	7 Lb-In	4	Tin	Green	0.05 mm²	3 mm²
TE Connectivity Raychem Cable Protection 1-282809-1	7.5 mm	6 mm	Phosphor Bronze	10.16 mm	0.4 in	30 AWG	12 AWG	0.61 in	15.49 mm	M3	11	Free Hanging (In-Line)	-40 °C	110 °C	3 mm˛	0.05 mm˛	1	Screw - Rising Cage Clamp	Plug Female Sockets	UL94 V-0	0.79 Nm	7 Lb-In	11	Tin	Green	0.05 mm²	3 mm²

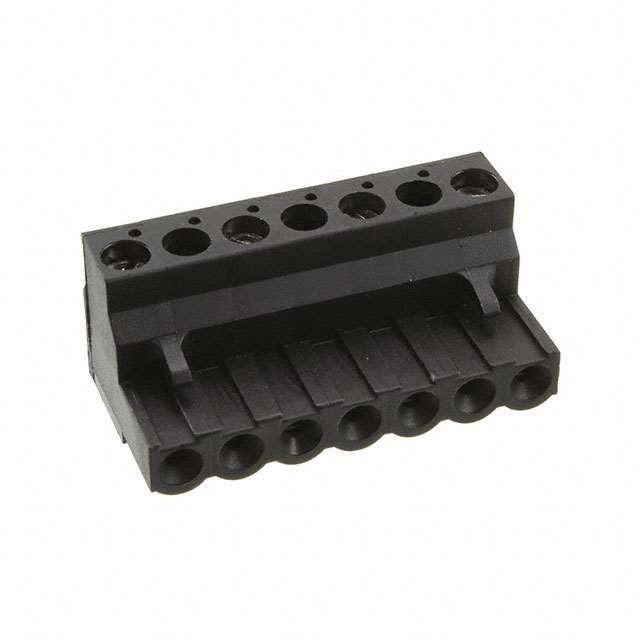

TE Connectivity Raychem Cable Protection 1-282809-5	7.5 mm	6 mm	Phosphor Bronze	10.16 mm	0.4 in	30 AWG	12 AWG	0.61 in	15.49 mm	M3	4	Free Hanging (In-Line)	-40 °C	110 °C			1	Screw - Rising Cage Clamp	Plug Female Sockets	UL94 V-0	0.79 Nm	7 Lb-In	4	Tin	Black	0.05 mm²	3 mm²	Positions Stamped Retention Latches (Non-Wire Side)
TE Connectivity Raychem Cable Protection 282809-6	7.5 mm	6 mm	Phosphor Bronze	10.16 mm	0.4 in	30 AWG	12 AWG	0.61 in	15.49 mm	M3	6	Free Hanging (In-Line)	-40 °C	110 °C			1	Screw - Rising Cage Clamp	Plug Female Sockets	UL94 V-0	0.79 Nm	7 Lb-In	6	Tin	Green	0.05 mm²	3 mm²
TE Connectivity Raychem Cable Protection 282809-9	7.5 mm	6 mm	Phosphor Bronze	10.16 mm	0.4 in	30 AWG	12 AWG	0.61 in	15.49 mm	M3	9	Free Hanging (In-Line)	-40 °C	110 °C			1	Screw - Rising Cage Clamp	Plug Female Sockets	UL94 V-0	0.79 Nm	7 Lb-In	9	Tin	Green	0.05 mm²	3 mm²
