LMV791 Series

Catalog

IC OPAMP GP 1 CIRCUIT SOT23-THIN

Part	Package / Case	Current - Output / Channel	Voltage - Supply Span (Max) [Max]	Voltage - Input Offset	Current - Input Bias	Voltage - Supply Span (Min) [Min]	Gain Bandwidth Product	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply	Slew Rate	Number of Circuits	Supplier Device Package	Amplifier Type	Output Type	Mounting Type	Operating Temperature	Current - Output / Channel [custom]
Texas Instruments LMV791MK	SOT-23-6 Thin TSOT-23-6	60 mA	5.5 V	100 çV	0.1 pA	1.8 V	17 MHz	125 °C	-40 °C	1.15 mA	11.5 V/µs	1	SOT-23-THIN	General Purpose	Rail-to-Rail	Surface Mount
Texas Instruments LMV791MKX/NOPB	SOT-23-6 Thin TSOT-23-6	60 mA	5.5 V	100 çV	0.1 pA	1.8 V	17 MHz	125 °C	-40 °C	1.15 mA	11.5 V/µs	1	SOT-23-THIN	General Purpose	Rail-to-Rail	Surface Mount

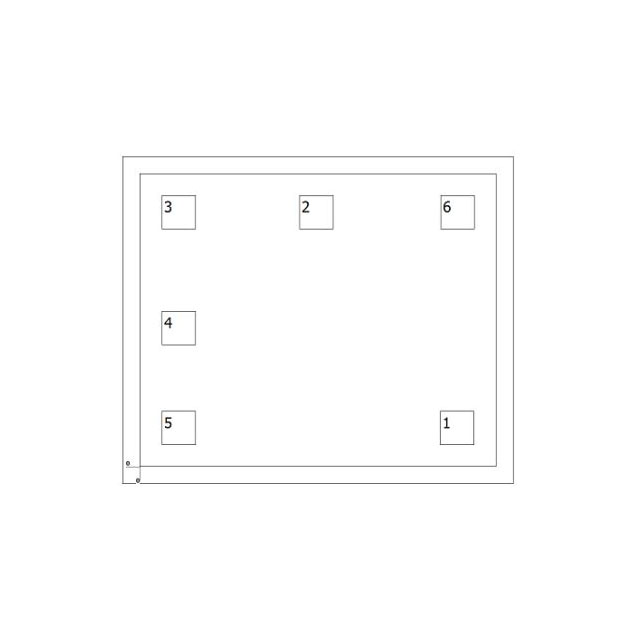

Texas Instruments LMV791TDA1	Die			1.35 mV	1 pA		17 MHz			1.15 mA	9.5 V/µs	1	Die	CMOS	Rail-to-Rail	Surface Mount	25 °C	21 mA
Texas Instruments LMV791MK/NOPB	SOT-23-6 Thin TSOT-23-6	60 mA	5.5 V	100 çV	0.1 pA	1.8 V	17 MHz	125 °C	-40 °C	1.15 mA	11.5 V/µs	1	SOT-23-THIN	General Purpose	Rail-to-Rail	Surface Mount
Texas Instruments LMV791TDA2	Die			1.35 mV	1 pA		17 MHz			1.15 mA	9.5 V/µs	1	Die	CMOS	Rail-to-Rail	Surface Mount	25 °C	21 mA
