PLCC Series

Manufacturer: Adam Tech

Catalog

PLCC SOCKET 84P SMT

Part	Current Rating (Amps)	Contact Resistance	Material Flammability Rating	Termination Post Length	Termination Post Length	Pitch - Post	Pitch - Post	Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Termination	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Features	Pitch - Mating	Pitch - Mating	Contact Material - Post	Contact Material - Mating	Housing Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination Post Length [x]	Termination Post Length [x]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]

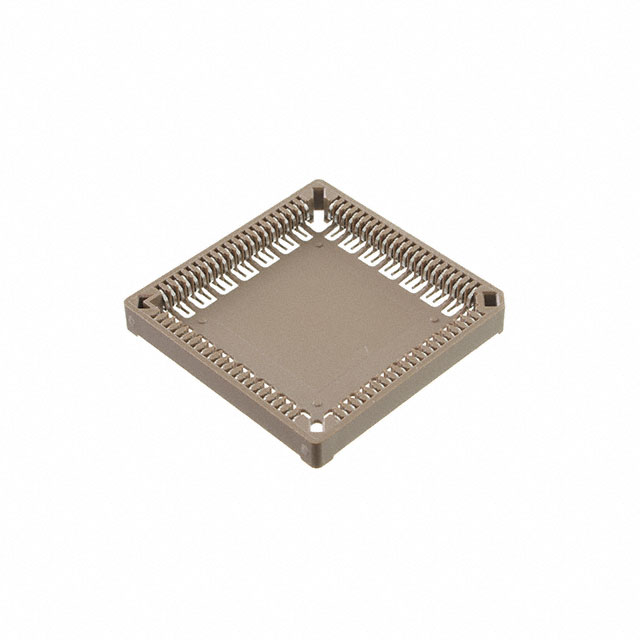

Adam Tech PLCC-84-AT-SMT	1 A	30 mOhm	UL94 V-0	0.008 in	2.03 mm	0.05 in	1.27 mm	PLCC	Surface Mount	-55 C	105 ░C	Tin	Solder	2.03 µm	80 µin	Closed Frame	1.27 mm	0.05 in	Phosphor Bronze	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	2.03 µm	80 µin

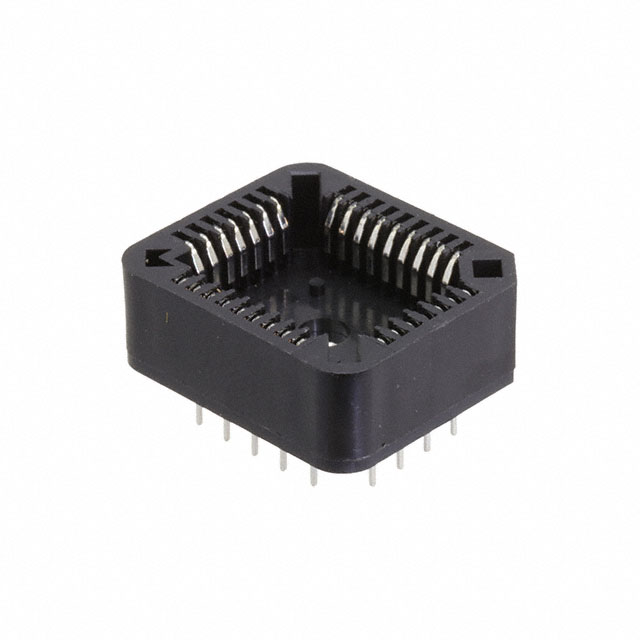

Adam Tech PLCC-32-AT	1 A	30 mOhm	UL94 V-0			0.1 in	2.54 mm	PLCC	Through Hole	-55 C	105 ░C	Tin	Solder	2.03 µm	80 µin	Closed Frame	1.27 mm	0.05 in	Phosphor Bronze	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	2.03 µm	80 µin	3.2 mm	0.126 in	32	7 9	2

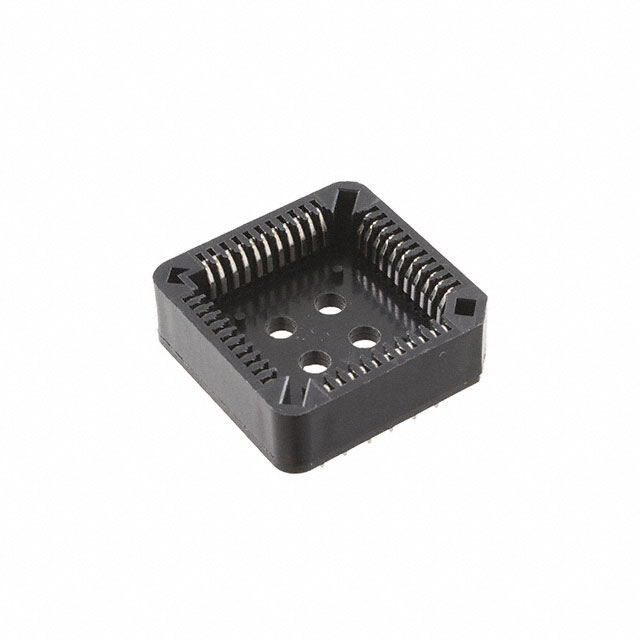

Adam Tech PLCC-44-AT	1 A	30 mOhm	UL94 V-0			0.1 in	2.54 mm	PLCC	Through Hole	-55 C	105 ░C	Tin	Solder	2.03 µm	80 µin	Closed Frame	1.27 mm	0.05 in	Phosphor Bronze	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	2.03 µm	80 µin	3.2 mm	0.126 in	44	11	4

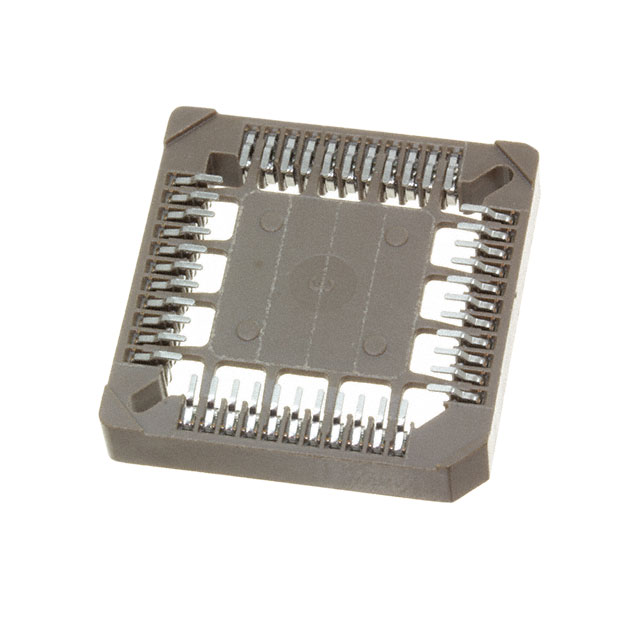

Adam Tech PLCC-44-AT-SMT	1 A	30 mOhm	UL94 V-0	0.008 in	2.03 mm	0.05 in	1.27 mm	PLCC	Surface Mount	-55 C	105 ░C	Tin	Solder	2.03 µm	80 µin	Closed Frame	1.27 mm	0.05 in	Phosphor Bronze	Phosphor Bronze	Thermoplastic	2.03 µm	80 µin			44	11	4
Adam Tech PLCC-68-AT	1 A	30 mOhm	UL94 V-0			0.1 in	2.54 mm	PLCC	Through Hole	-55 C	105 ░C	Tin	Solder	2.03 µm	80 µin	Closed Frame	1.27 mm	0.05 in	Phosphor Bronze	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	2.03 µm	80 µin	3.2 mm	0.126 in				4	17	68
Adam Tech PLCC-32-AT-SMT	1 A	30 mOhm	UL94 V-0	0.008 in	2.03 mm	0.05 in	1.27 mm	PLCC	Surface Mount	-55 C	105 ░C	Tin	Solder	2.03 µm	80 µin	Closed Frame	1.27 mm	0.05 in	Phosphor Bronze	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	2.03 µm	80 µin			32	7 9	2

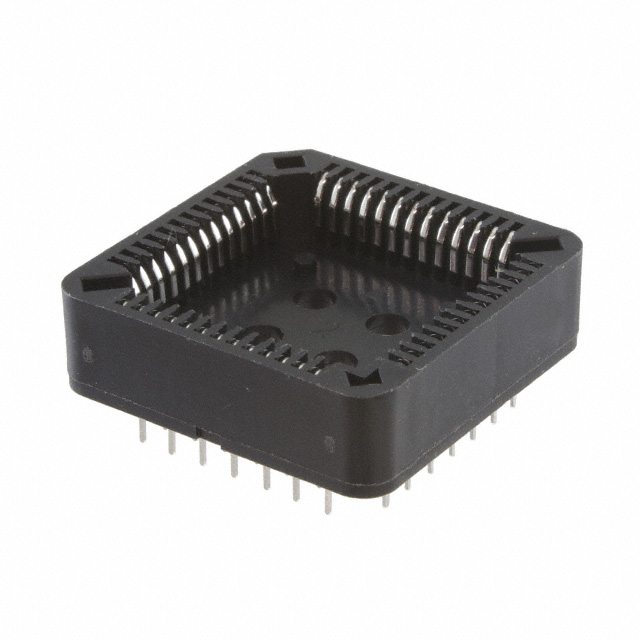

Adam Tech PLCC-52-AT	1 A	30 mOhm	UL94 V-0			0.1 in	2.54 mm	PLCC	Through Hole	-55 C	105 ░C	Tin	Solder	2.03 µm	80 µin	Closed Frame	1.27 mm	0.05 in	Phosphor Bronze	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	2.03 µm	80 µin	3.2 mm	0.126 in	52						4 x 13
Adam Tech PLCC-20-AT	1 A	30 mOhm	UL94 V-0			0.1 in	2.54 mm	PLCC	Through Hole	-55 C	105 ░C	Tin	Solder	2.03 µm	80 µin	Closed Frame	1.27 mm	0.05 in	Phosphor Bronze	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	2.03 µm	80 µin	3.2 mm	0.126 in	20							5	4
