SFW30S Series

Catalog

CONN FFC FPC VERT 30POS 1MM SMD

Part	Housing Color	Mating Cycles	Contact Finish	Mounting Type	FFC, FCB Thickness	Number of Positions	Termination	Housing Material	Connector/Contact Type	Pitch	Pitch	Voltage Rating	Flat Flex Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Height Above Board [z]	Height Above Board [z]	Contact Material	Actuator Material	Features	Actuator Color	Locking Feature	Cable End Type	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]

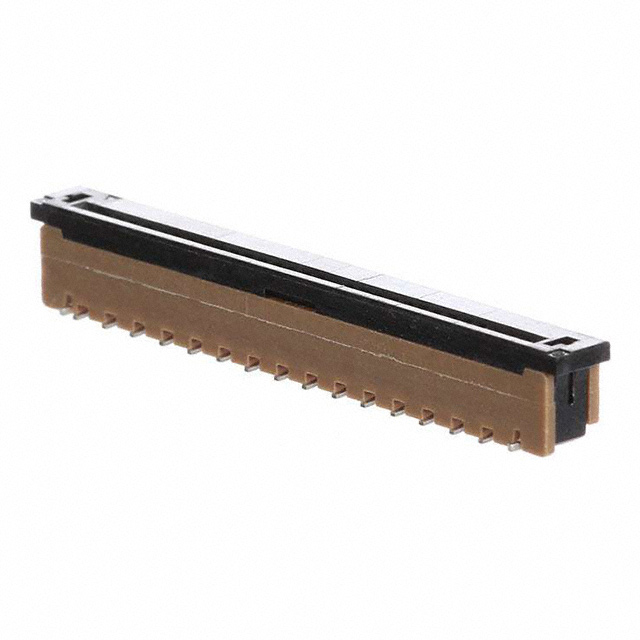

Amphenol ICC (FCI) SFW30S-2STME1LF	Brown	20	Tin	Surface Mount	0.33 mm	30	Solder	Glass Filled Thermoplastic	Contacts Vertical - 1 Sided	1 mm	0.039 in	100 V	FFC FPC	UL94 V-0	-55 C	105 ░C	0.209 in	5.3 mm	Phosphor Bronze	Thermoplastic Glass Filled	Positions 5 6 7 8 and 13 Molded Closed Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW30S-2STE9LF	Brown	20	Tin	Surface Mount		30	Solder	Glass Filled Thermoplastic	Contacts Vertical - 1 Sided	1 mm	0.039 in	100 V	FFC FPC	UL94 V-0	-55 C	85 °C	0.209 in	5.3 mm	Phosphor Bronze	Thermoplastic Glass Filled		Black	Slide Lock	Straight Tapered	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW30S-2STAE1LF	Brown	20	Gold	Right Angle Surface Mount	0.33 mm	30	Solder	Polyphenylene Sulfide (PPS) Glass Filled	Contacts Top	1 mm	0.039 in	100 V	FPC	UL94 V-0	-55 C	105 ░C	0.106 in	2.7 mm	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled		Black	Slide Lock	Tapered
