2309390 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

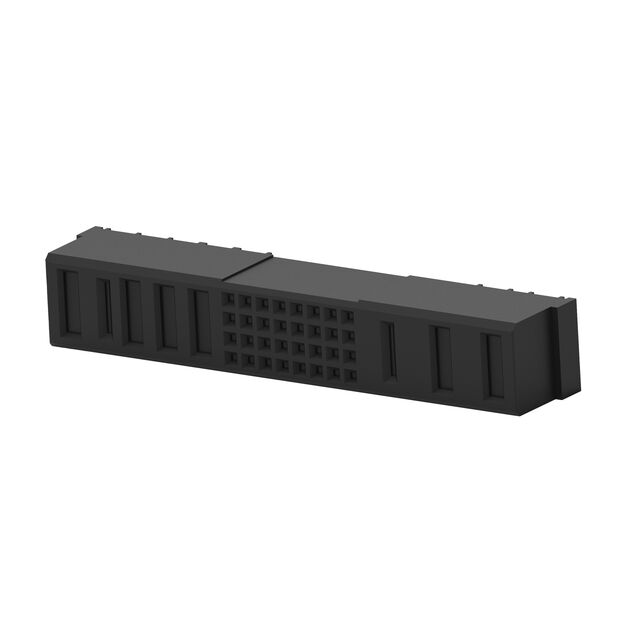

VERT RECPT, MULTI-BEAM XLE, VITA
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Pitch [x] | Pitch [x] | Mounting Type | Material Flammability Rating | Connector Style | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Number of Positions Loaded | Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 125 °C | -40 °C | 8 | 32 | 2.54 mm | 0.1 in | Through Hole | UL94 V-0 | Multi-Beam | Gold | 50 µin | 1.27 µm | Receptacle Female Sockets | All | Press-Fit | 40 |
