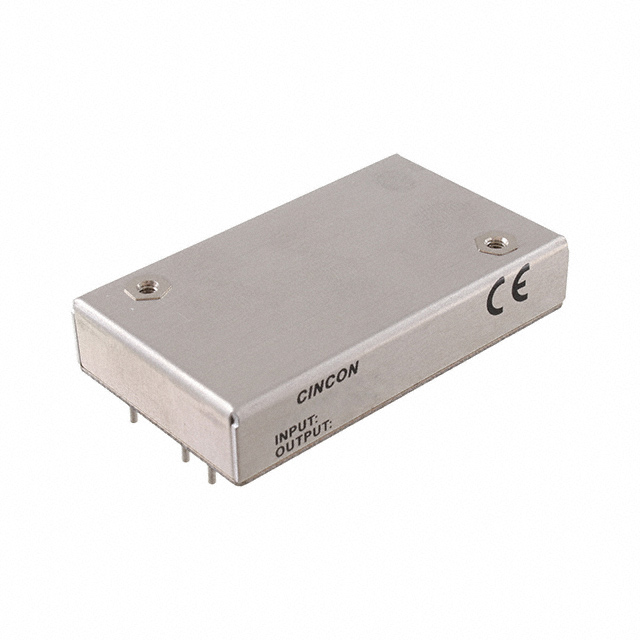

ECLB75W Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 75W 18-75VIN 5VOUT 15A

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Output 1	Current - Output (Max) [Max]	Power (Watts)	Features	Efficiency	Voltage - Input (Max) [Max]	Control Features	Voltage - Isolation	Mounting Type	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Voltage - Input (Min) [Min]	Approval Agency	Type	Standard Number	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Cincon Electronics Co. LTD ECLB75W-48S05	-40 °C	85 °C	7-DIP Module 6 Leads	5 V	15 A	75 W	Remote On/Off	92 %	75 V	Active High Enable	2250 VDC	Through Hole	ITE (Commercial)	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm	1	18 V	CE	Isolated Module	62368-1

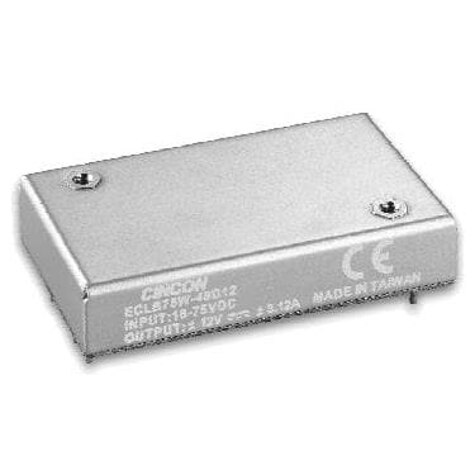

Cincon Electronics Co. LTD ECLB75W-48D15N	-40 °C	85 °C	7-DIP Module	15 V		75 W	Remote On/Off	91.5 %	75 V	Active Low Enable	2250 VDC	Through Hole	ITE (Commercial)	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm	2	18 V	CE	Isolated Module	62368-1	-15 V	2.5 A	2.5 A
Cincon Electronics Co. LTD ECLB75W-48D12	-40 °C	85 °C	7-DIP Module	12 V		75 W	Remote On/Off	91 %	75 V	Active High Enable	2250 VDC	Through Hole	ITE (Commercial)	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm	2	18 V	CE	Isolated Module	62368-1	-12 V		3.12 A	3.12 A
Cincon Electronics Co. LTD ECLB75W-24S12	-40 °C	85 °C	7-DIP Module 6 Leads	12 V	6.25 A	75 W	Remote On/Off	92 %	36 V	Active High Enable	2250 VDC	Through Hole	ITE (Commercial)	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm	1	9 V	CE	Isolated Module	62368-1
Cincon Electronics Co. LTD ECLB75W-24S15	-40 °C	85 °C	7-DIP Module 6 Leads	15 V		75 W	Remote On/Off	92 %	36 V	Active High Enable	2250 VDC	Through Hole	ITE (Commercial)	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm	1	9 V	CE	Isolated Module	62368-1				5 A
Cincon Electronics Co. LTD ECLB75W-24D12	-40 °C	85 °C	7-DIP Module	12 V		75 W	Remote On/Off	91 %	36 V	Active High Enable	2250 VDC	Through Hole	ITE (Commercial)	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm	2	9 V	CE	Isolated Module	62368-1	-12 V		3.12 A	3.12 A
Cincon Electronics Co. LTD ECLB75W-48S15	-40 °C	85 °C	7-DIP Module 6 Leads	15 V		75 W	Remote On/Off	92 %	75 V	Active High Enable	2250 VDC	Through Hole	ITE (Commercial)	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm	1	18 V	CE	Isolated Module	62368-1				5 A
Cincon Electronics Co. LTD ECLB75W-24D15	-40 °C	85 °C	7-DIP Module	15 V		75 W	Remote On/Off	91 %	36 V	Active High Enable	2250 VDC	Through Hole	ITE (Commercial)	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm	2	9 V	CE	Isolated Module	62368-1	-15 V	2.5 A	2.5 A
Cincon Electronics Co. LTD ECLB75W-48D24	-40 °C	85 °C	7-DIP Module	24 V		75 W	Remote On/Off	91.5 %	75 V	Active High Enable	2250 VDC	Through Hole	ITE (Commercial)	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm	2	18 V	CE	Isolated Module	62368-1	-24 V			1.56 A
Cincon Electronics Co. LTD ECLB75W-48D15	-40 °C	85 °C	7-DIP Module	15 V		75 W	Remote On/Off	91.5 %	75 V	Active High Enable	2250 VDC	Through Hole	ITE (Commercial)	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm	2	18 V	CE	Isolated Module	62368-1	-15 V	2.5 A	2.5 A
