MSI2577 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

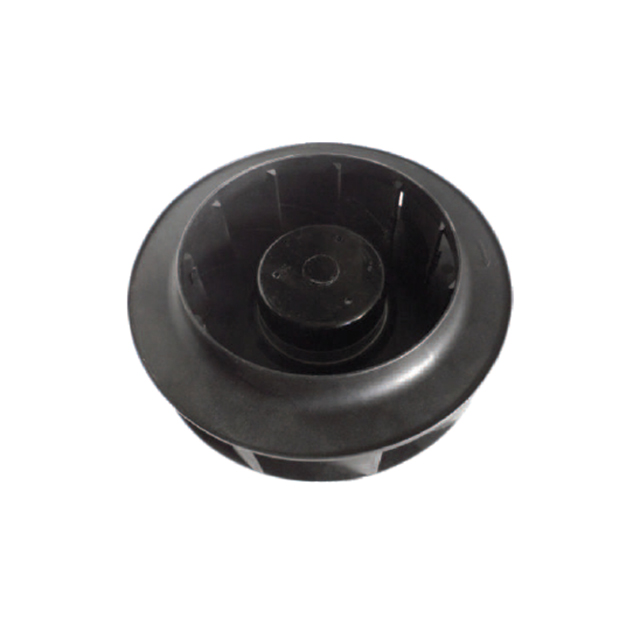

FAN IMP MTRZD 250X77.3MM 24VDC
| Part | Current Rating (Amps) | Material - Blade | Voltage - Rated | Static Pressure | Static Pressure | Termination | Bearing Type | Noise | Air Flow | Air Flow | Fan Type | Width [x] | Features | Weight [custom] | Weight [custom] | Approval Agency | RPM | Size / Dimension [diameter] | Size / Dimension | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | 7.2 A | Plastic | 24 VDC | 3.365 in H2O | 838.2 Pa | 2 Wire Leads | Ball | 76 dB(A) | 716 CFM | 20.05 m³/min | Motorized Impellers | 77.3 mm | Auto Restart | 2 kg | 4.4 lbs | CE cUL TUV UL | 2800 RPM | 250 mm | Round | ||
Mechatronics Fan Group | 7.2 A | Plastic | 24 VDC | 3.365 in H2O | 838.2 Pa | 3 Wire Leads | Ball | 76 dB(A) | 716 CFM | 20.05 m³/min | Motorized Impellers | 77.3 mm | Auto Restart Speed Sensor (Tach) | 2 kg | 4.4 lbs | CE cUL TUV UL | 2800 RPM | 250 mm | Round | ||
Mechatronics Fan Group | 7.2 A | Plastic | 24 VDC | 3.365 in H2O | 838.2 Pa | 4 Wire Leads | Ball | 76 dB(A) | 716 CFM | 20.05 m³/min | Motorized Impellers | 77.3 mm | Auto Restart PWM Control Speed Sensor (Tach) | 2 kg | 4.4 lbs | CE cUL TUV UL | 2800 RPM | 250 mm | Round | ||
Mechatronics Fan Group | 7.2 A | Plastic | 24 VDC | 3.365 in H2O | 838.2 Pa | 3 Wire Leads | Ball | 76 dB(A) | 716 CFM | 20.05 m³/min | Motorized Impellers | 77.3 mm | Auto Restart Speed Sensor (Tach) Voltage Control | CE cUL TUV UL | 2800 RPM | 250 mm | Round | 2 kg | 4.5 lbs | ||
Mechatronics Fan Group | 3.9 A | Plastic | 48 VDC | 3.365 in H2O | 838.2 Pa | 2 Wire Leads | Ball | 76 dB(A) | 716 CFM | 20.05 m³/min | Motorized Impellers | 77.3 mm | Auto Restart | 2 kg | 4.4 lbs | CE cUL TUV UL | 2800 RPM | 250 mm | Round | ||
Mechatronics Fan Group | 3.9 A | Plastic | 48 VDC | 3.365 in H2O | 838.2 Pa | 3 Wire Leads | Ball | 76 dB(A) | 716 CFM | 20.05 m³/min | Motorized Impellers | 77.3 mm | Auto Restart Speed Sensor (Tach) Voltage Control | CE cUL TUV UL | 2800 RPM | 250 mm | Round | 2 kg | 4.5 lbs | ||
Mechatronics Fan Group | 3.9 A | Plastic | 48 VDC | 3.365 in H2O | 838.2 Pa | 4 Wire Leads | Ball | 76 dB(A) | 716 CFM | 20.05 m³/min | Motorized Impellers | 77.3 mm | Auto Restart PWM Control Speed Sensor (Tach) | 2 kg | 4.4 lbs | CE cUL TUV UL | 2800 RPM | 250 mm | Round | ||
Mechatronics Fan Group | 7.2 A | Plastic | 24 VDC | 3.365 in H2O | 838.2 Pa | 3 Wire Leads | Ball | 76 dB(A) | 716 CFM | 20.05 m³/min | Motorized Impellers | 77.3 mm | Auto Restart Locked Rotor Sensor | 2 kg | 4.4 lbs | CE cUL TUV UL | 2800 RPM | 250 mm | Round | ||
Mechatronics Fan Group | 3.9 A | Plastic | 48 VDC | 3.365 in H2O | 838.2 Pa | 3 Wire Leads | Ball | 76 dB(A) | 716 CFM | 20.05 m³/min | Motorized Impellers | 77.3 mm | Auto Restart Speed Sensor (Tach) | 2 kg | 4.4 lbs | CE cUL TUV UL | 2800 RPM | 250 mm | Round | ||
Mechatronics Fan Group | 3.9 A | Plastic | 48 VDC | 3.365 in H2O | 838.2 Pa | 3 Wire Leads | Ball | 76 dB(A) | 716 CFM | 20.05 m³/min | Motorized Impellers | 77.3 mm | Auto Restart Locked Rotor Sensor | 2 kg | 4.4 lbs | CE cUL TUV UL | 2800 RPM | 250 mm | Round |
