PFA.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 7POS GOLD CRIMP

Part	Termination	Backshell Material, Plating	Number of Positions	Shell Finish	Shell Size - Insert	Insert Material	Fastening Type	Mounting Type	Ingress Protection	Shell Material	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Material	Features	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Mounting Feature	Material Flammability Rating	Shielding	Current Rating (Amps)	Color	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
LEMO PFA.1B.307.CYMD72Z	Crimp	Brass Chrome	7	Chrome	307	Polyetheretherketone (PEEK)	Push-Pull	Free Hanging (In-Line) Panel Mount	IP50	Brass	A	59 Áin	1.5 Ám	Receptacle Female Sockets	Bronze	Backshell	Gold	0.244 in 0.283 in	6.2 mm 7.2 mm	-55 °C	250 °C	Metal	Front and Rear Side Nut	UL94 V-0	Shielded	7 A	Silver
LEMO PFA.1B.314.CLLD62Z		Brass Chrome	14	Chrome	314	Polyetheretherketone (PEEK)	Push-Pull	Free Hanging (In-Line) Panel Mount	IP50	Brass	A	59 Áin	1.5 Ám	Receptacle Female Sockets	Bronze	Backshell	Gold			-55 °C	250 °C	Metal	Front and Rear Side Nut	UL94 V-0	Shielded	2 A	Silver	6.2 mm	5.2 mm	0.205 in	0.244 in

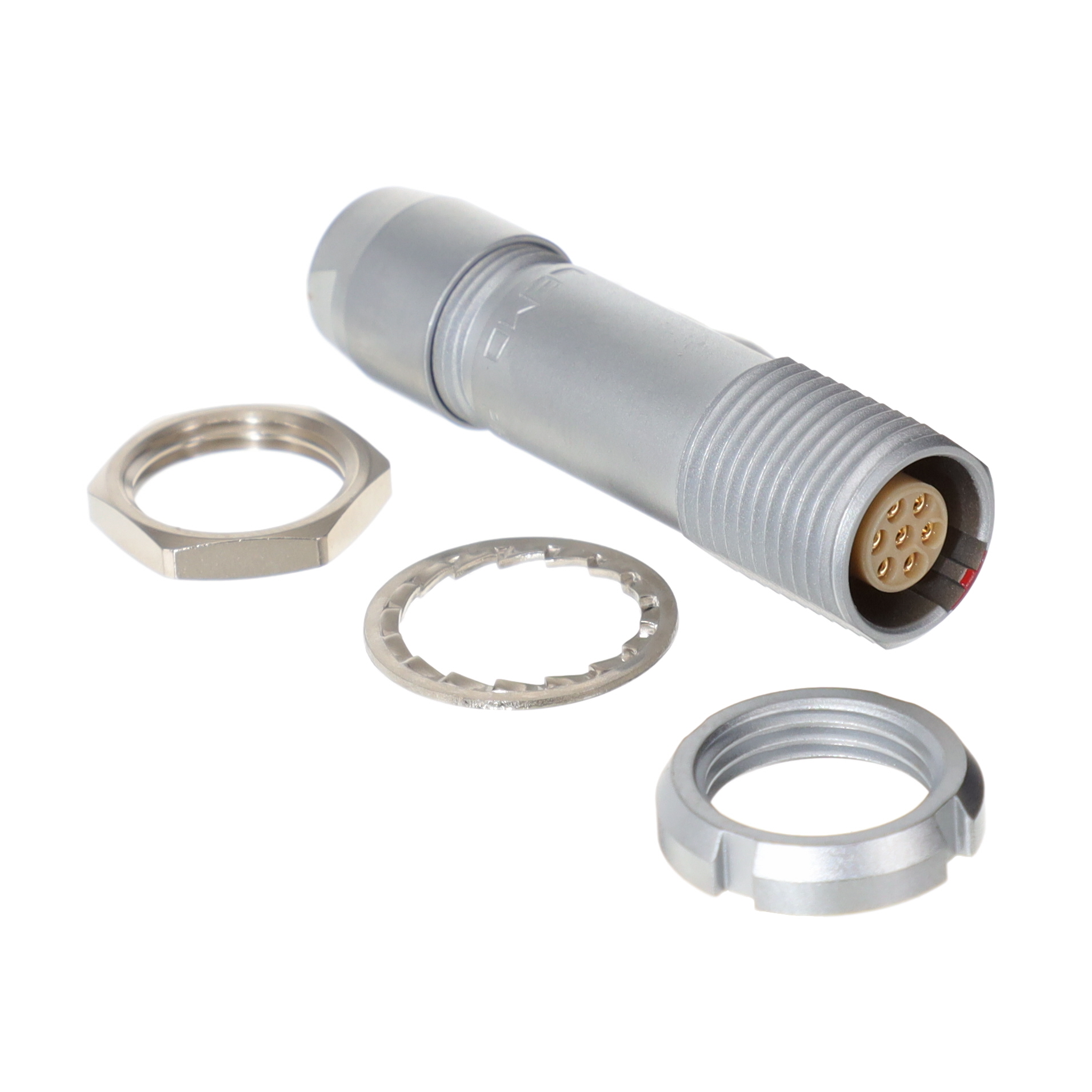

LEMO PFA.1B.307.CLLD52		Brass Chrome	7	Chrome	307	Polyetheretherketone (PEEK)	Push-Pull	Free Hanging (In-Line) Panel Mount	IP50	Brass	A	59 Áin	1.5 Ám	Receptacle Female Sockets	Bronze	Backshell	Gold			-55 °C	250 °C	Metal	Front and Rear Side Nut	UL94 V-0	Shielded	7 A	Silver					0.165 in 0.205 in	4.2 mm	5.2 mm
LEMO PFA.1B.314.CLLD72Z		Brass Chrome	14	Chrome	314	Polyetheretherketone (PEEK)	Push-Pull	Free Hanging (In-Line) Panel Mount	IP50	Brass	A	59 Áin	1.5 Ám	Receptacle Female Sockets	Bronze	Backshell	Gold	0.244 in 0.283 in	6.2 mm 7.2 mm	-55 °C	250 °C	Metal	Front and Rear Side Nut	UL94 V-0	Shielded	2 A	Silver
LEMO PFA.1B.308.CYMD72	Crimp	Brass Chrome	8	Chrome	308	Polyetheretherketone (PEEK)	Push-Pull	Free Hanging (In-Line) Panel Mount	IP50	Brass	A	59 Áin	1.5 Ám	Receptacle Female Sockets	Bronze	Backshell	Gold	0.244 in 0.283 in	6.2 mm 7.2 mm	-55 °C	250 °C	Metal	Front and Rear Side Nut	UL94 V-0	Shielded	5 A	Silver
LEMO PFA.1B.307.CYMD52Z	Crimp	Brass Chrome	7	Chrome	307	Polyetheretherketone (PEEK)	Push-Pull	Free Hanging (In-Line) Panel Mount	IP50	Brass	A	59 Áin	1.5 Ám	Receptacle Female Sockets	Bronze	Backshell	Gold			-55 °C	250 °C	Metal	Front and Rear Side Nut	UL94 V-0	Shielded	7 A	Silver					0.165 in 0.205 in	4.2 mm	5.2 mm
