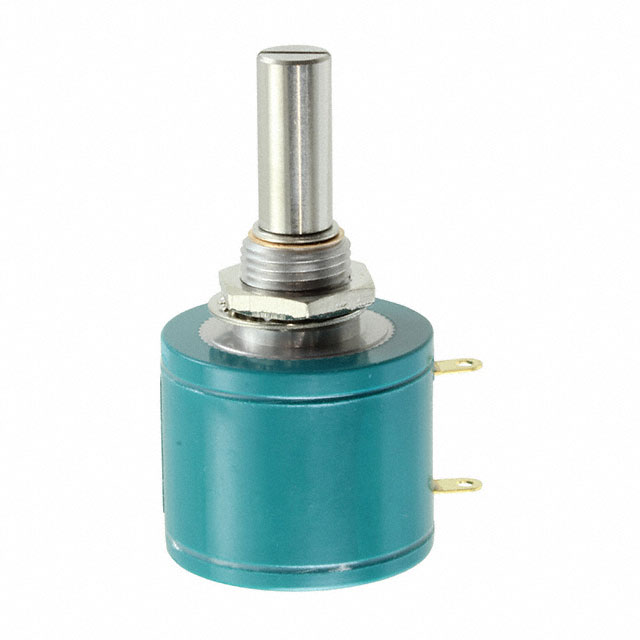

M22L10 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
ROTARY POTENTIOMETER, 1 GANG, 10TURN ROHS COMPLIANT: YES
| Part | Size - Body [diameter] | Size - Body [diameter] | Mounting Type | Built in Switch | Rotation | Temperature Coefficient | Actuator Length [x] | Actuator Length [x] | Resistance (Ohms) | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Bushing Thread | Features | Power (Watts) | Number of Gangs | Tolerance | Adjustment Type | Taper | Number of Turns | Actuator Type | Resistive Material | Termination Style | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 22.2 mm | 0.874 " | Panel Mount | None | 3600 ° | 50 ppm/░C | 0.906 in | 23 mm | 1k | 6 mm | 0.236 in | M9 x 0.75 | Long Life | 2 W | 1 | 5 % | User Defined | Linear | 10 | Slotted | Wirewound | Solder Lug | |
Nidec Components Corporation | 22.2 mm | 0.874 " | Panel Mount | None | 3600 ° | 50 ppm/░C | 0.906 in | 23 mm | 6 mm | 0.236 in | M9 x 0.75 | Long Life | 2 W | 1 | 5 % | User Defined | Linear | 10 | Slotted | Wirewound | Solder Lug | 2 kOhms |
