SDF-S25 Series
Manufacturer: NorComp Inc.
Beta
⌘K
D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 25 CONTACTS, DB, SOLDER CUP
| Part | Dielectric Material | Color | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Style | Mounting Type | Flange Feature | Ingress Protection | Material Flammability Rating | Number of Positions | Connector Type | Shell Material, Finish | Contact Finish | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Number of Rows [custom] | Contact Type | Contact Finish Thickness | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

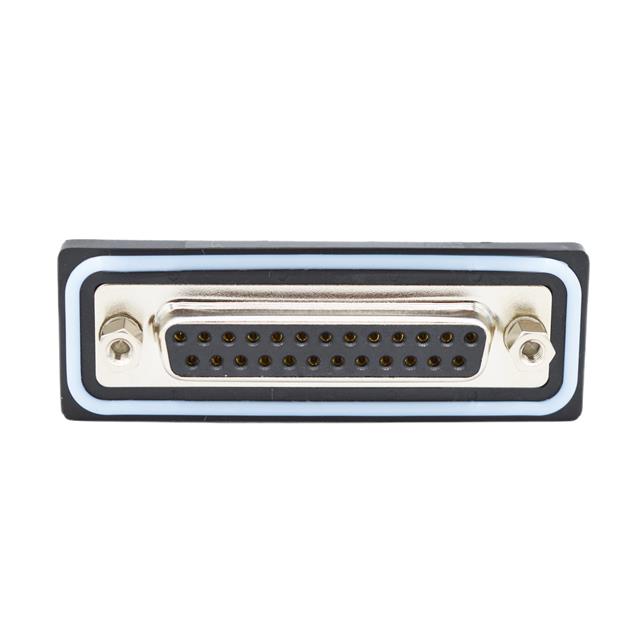

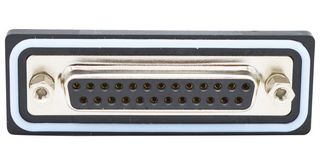

 NorComp Inc. | Polybutylene Terephthalate (PBT) | Black | Brass | 85 °C | -25 °C | D-Sub | Panel Mount | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | UL94 V-0 | 25 | Receptacle Female Sockets | Nickel Plated Steel | Gold | 5 A | B DB | 3 | 2 | Signal | Flash | |||

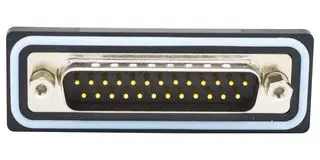

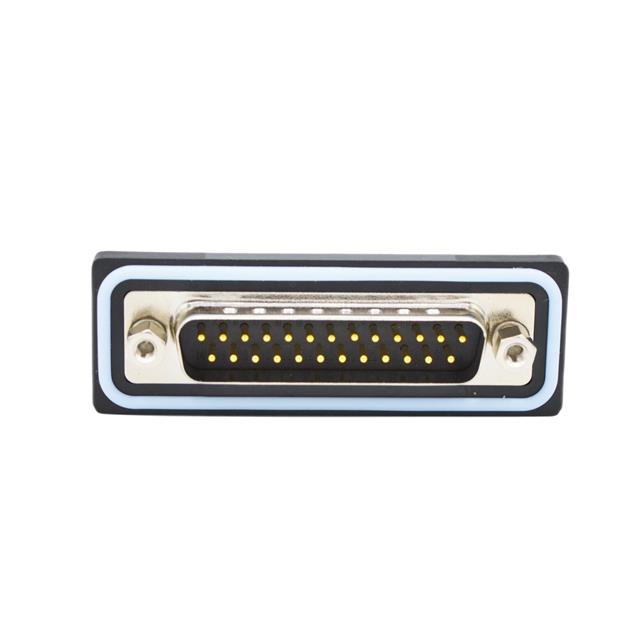

 NorComp Inc. | Polybutylene Terephthalate (PBT) | Black | Brass | 85 °C | -25 °C | D-Sub | Panel Mount | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | UL94 V-0 | 25 | Plug Male Pins | Nickel Plated Steel | Gold | 5 A | B DB | 3 | 2 | Signal | Flash | Grounding Indents | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Black | Brass | 85 °C | -25 °C | D-Sub | Panel Mount | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | UL94 V-0 | 25 | Receptacle Female Sockets | Nickel Plated Steel | Gold | 5 A | B DB | 3 | 2 | Signal | 30 Áin | 0.76 Ám | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Black | Brass | 85 °C | -25 °C | D-Sub | Panel Mount | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | UL94 V-0 | 25 | Plug Male Pins | Nickel Plated Steel | Gold | 5 A | B DB | 3 | 2 | Signal | Grounding Indents | 30 Áin | 0.76 Ám |
