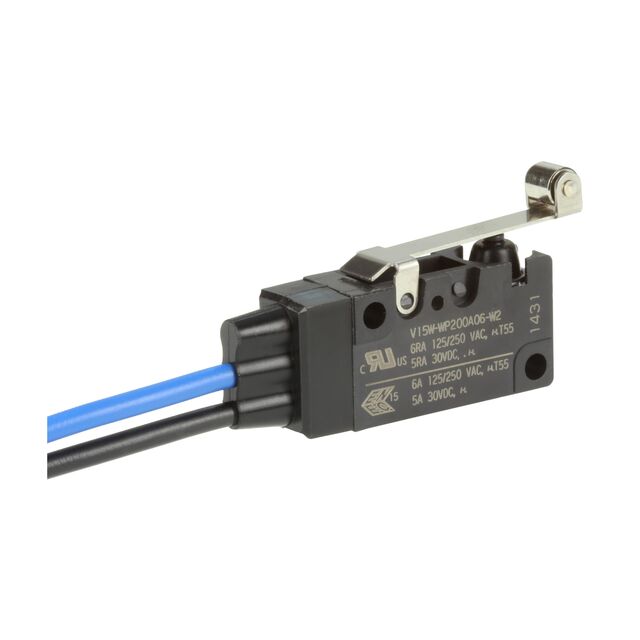

V15W-W Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH BASIC
| Part | Release Force | Mechanical Life | Current Rating (Amps) | Operating Position | Operating Position | Overtravel [custom] | Overtravel [custom] | Voltage Rating - AC | Voltage Rating - DC | Mounting Type | Differential Travel | Differential Travel | Switch Function | Pretravel | Pretravel | Operating Force | Termination Style | Ingress Protection | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | |||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions | |||||||||||||||||||||||
 Honeywell Sensing and Productivity Solutions | 20 gf | 1000000 Cycles | 5 A | 20.6 mm | 0.812 in | 0.051 " | 1.3 mm | 125 V | 30 V | Chassis Mount | 1.2 mm | 0.047 in | Off-Mom | 0.125 in | 3.2 mm | 120 gf | Wire Leads | IP67 - Dust Tight Waterproof | 10000 Cycles | 85 °C | -40 C | Lever Roller | SPST-NO |
