207158 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER VERT 6POS 5MM

Part	Current Rating (Amps)	Termination	Number of Positions	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Contact Shape	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Mounting Type	Style	Insulation Height	Insulation Height	Insulation Color	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Finish - Post	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Features	Contact Type	Contact Material	Contact Finish - Mating

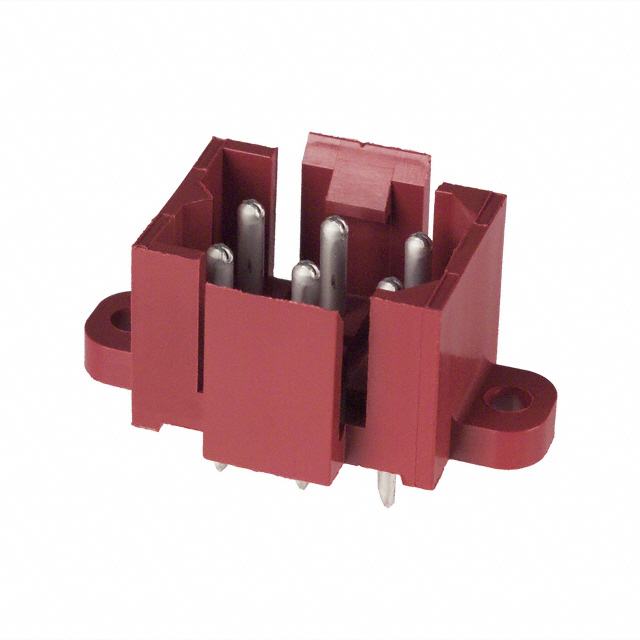

TE Connectivity Raychem Cable Protection 207158-1	7.5 A	Solder	6	Header	0.181 in	4.6 mm	UL94 V-0	130 °C	-55 °C	Automotive General Purpose Industrial	Circular	Shrouded - 4 Wall	150 Áin	3.81 Ám	600 V	Through Hole	Board to Board Cable	0.464 in	11.79 mm	Black Red	All	5 mm	0.197 "	Nylon Polyamide (PA)	Tin	Latch Lock	5 mm	0.197 in	150 Áin	3.81 Ám	2	Mounting Flange	Male Pin	Brass

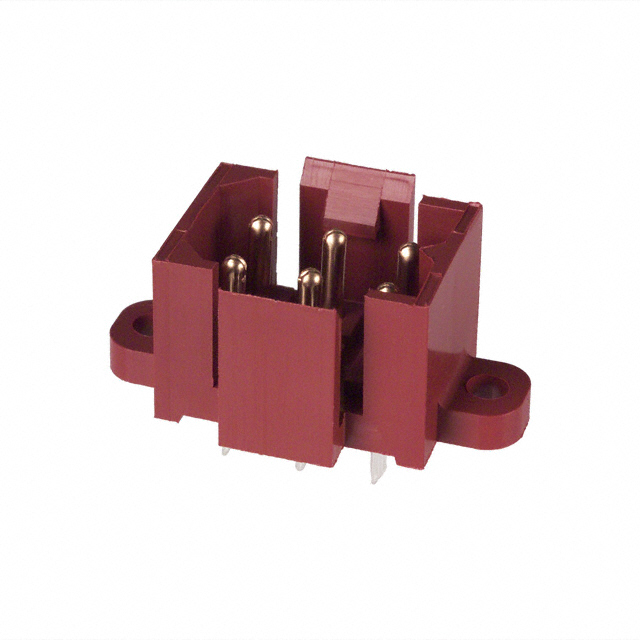

TE Connectivity Raychem Cable Protection 1-207158-0	7.5 A	Solder	6	Header	0.181 in	4.6 mm	UL94 V-0	130 °C	-55 °C	Automotive General Purpose Industrial	Circular	Shrouded - 4 Wall	150 Áin	3.81 Ám	600 V	Through Hole	Board to Board Cable	0.464 in	11.79 mm	Black Red	All	5 mm	0.197 "	Nylon Polyamide (PA)	Tin	Latch Lock	5 mm	0.197 in	30 Áin	0.76 Ám	2	Mounting Flange	Male Pin	Brass	Gold PdNi +Gold
TE Connectivity Raychem Cable Protection 207158-7	7.5 A	Solder	6	Header	0.181 in	4.6 mm	UL94 V-0	130 °C	-55 °C	Automotive General Purpose Industrial	Circular	Shrouded - 4 Wall	150 Áin	3.81 Ám	600 V	Through Hole	Board to Board Cable	0.464 in	11.79 mm	Black Red	All	5 mm	0.197 "	Nylon Polyamide (PA)	Tin	Latch Lock	5 mm	0.197 in	150 Áin	3.81 Ám	2	Mounting Flange	Male Pin	Brass
TE Connectivity Raychem Cable Protection 207158-4	7.5 A	Solder	6	Header	0.181 in	4.6 mm	UL94 V-0	130 °C	-55 °C	Automotive General Purpose Industrial	Circular	Shrouded - 4 Wall	150 Áin	3.81 Ám	600 V	Through Hole	Board to Board Cable	0.464 in	11.79 mm	Black Red	All	5 mm	0.197 "	Nylon Polyamide (PA)	Tin	Latch Lock	5 mm	0.197 in	30 Áin	0.76 Ám	2		Male Pin	Brass	Gold

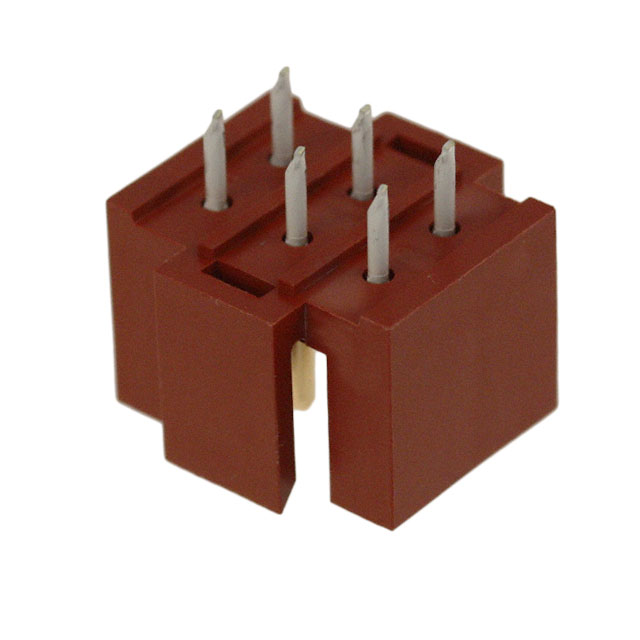

TE Connectivity Raychem Cable Protection 1-207158-1	7.5 A	Solder	6	Header	0.181 in	4.6 mm	UL94 V-0	130 °C	-55 °C	Automotive General Purpose Industrial	Circular	Shrouded - 4 Wall	150 Áin	3.81 Ám	600 V	Through Hole	Board to Board Cable	0.464 in	11.79 mm	Black Red	All	5 mm	0.197 "	Nylon Polyamide (PA)	Tin	Latch Lock	5 mm	0.197 in	30 Áin	0.76 Ám	2		Male Pin	Brass	Gold
