6501FE Series
Manufacturer: Belden Inc.
Beta
⌘K

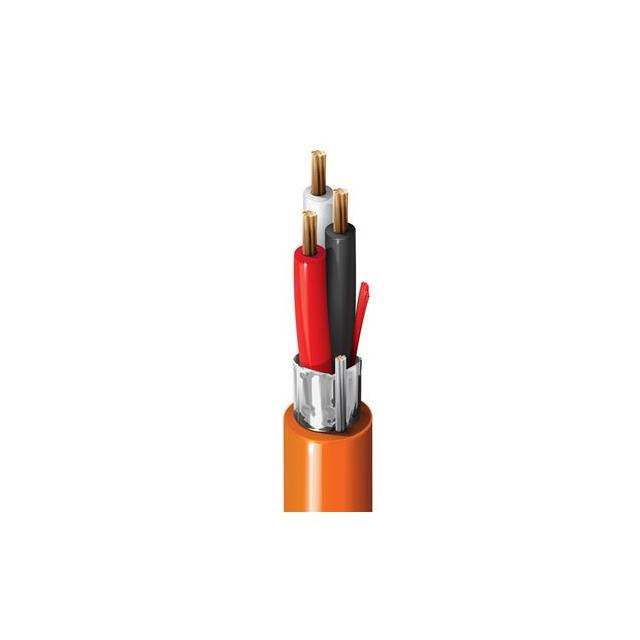

CABLE 3COND 22AWG NATURAL
| Part | Shield Coverage | Shield Material | Conductor Insulation | Jacket Color | Voltage | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Ratings | Cable Type | Wire Gauge | Features | Jacket (Insulation) Material | Length | Length | Usage | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Low Smoke Poly-Vinyl Chloride (LSPVC) | Natural | 300 VDC | Foil | 0.135 in | 3.43 mm | 0.381 mm | 0.015 in | UL Style CMP | Multi-Conductor | 22 AWG | Drain Wire Rip Cord | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 304.8 m | 1000 ft | Security Sound | 3 | 75 ░C | 0 °C | 30 AWG | 7 | Copper Bare |
 Belden Inc. | 100 % | Aluminum | Low Smoke Poly-Vinyl Chloride (LSPVC) | Natural | 300 VDC | Foil | 0.135 in | 3.43 mm | 0.381 mm | 0.015 in | UL Style CMP | Multi-Conductor | 22 AWG | Drain Wire Rip Cord | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 304.8 m | 1000 ft | Security Sound | 3 | 75 ░C | 0 °C | 30 AWG | 7 | Copper Bare |
