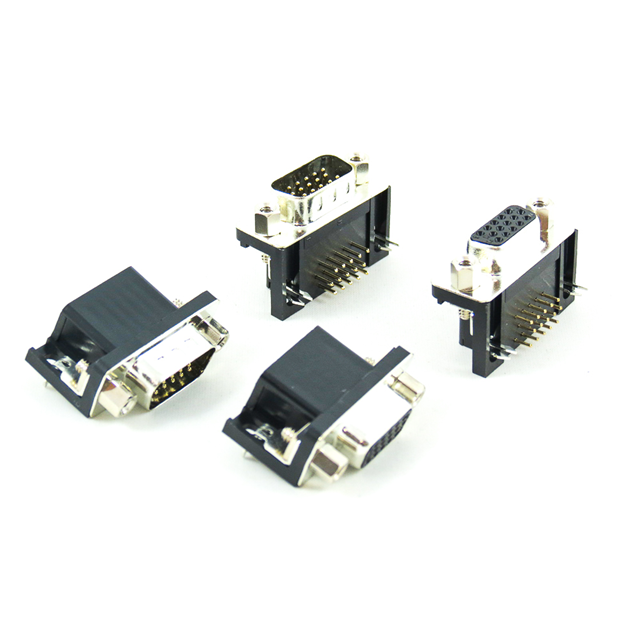

7916-26 Series
Manufacturer: Oupiin
Beta
⌘K
CONN D-SUB HD PLUG 26P R/A SLDR
| Part | Number of Rows [custom] | Backset Spacing | Backset Spacing | Termination | Color | Connector Type | Contact Material | Contact Finish | Mounting Type | Shell Material, Finish | Flange Feature | Flange Feature | Features | Dielectric Material | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Type | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Shell Material, Finish [custom] | Shell Material, Finish [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | 3 | 8.89 mm | 0.35 in | Solder | Black | Plug Male Pins | Brass | Gold | Right Angle Through Hole | Nickel Plated Steel | Housing/Shell | 4-40 | Board Lock Grounding Indents | Polybutylene Terephthalate (PBT) | UL94 V-0 | -55 C | 105 ░C | 26 | Signal | D-Sub High Density | 2 | DA A | ||
 Oupiin | 3 | 8.89 mm | 0.35 in | Solder | Black | Receptacle Female Sockets | Brass | Gold | Right Angle Through Hole | Nickel Plated Steel | Housing/Shell | 4-40 | Board Lock | Polybutylene Terephthalate (PBT) | UL94 V-0 | -55 C | 105 ░C | 26 | Signal | D-Sub High Density | 2 | DA A | ||
Oupiin | 3 | 8.89 mm | 0.35 in | Solder | Black | Receptacle Female Sockets | Copper Alloy | Gold | Right Angle Through Hole | Housing/Shell | 4-40 | Board Lock | Polyester Thermoplastic Glass Filled | UL94 V-0 | -55 C | 105 ░C | 26 | Signal | D-Sub High Density | 2 | DA A | Nickel Plated | Metal |
