770966 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

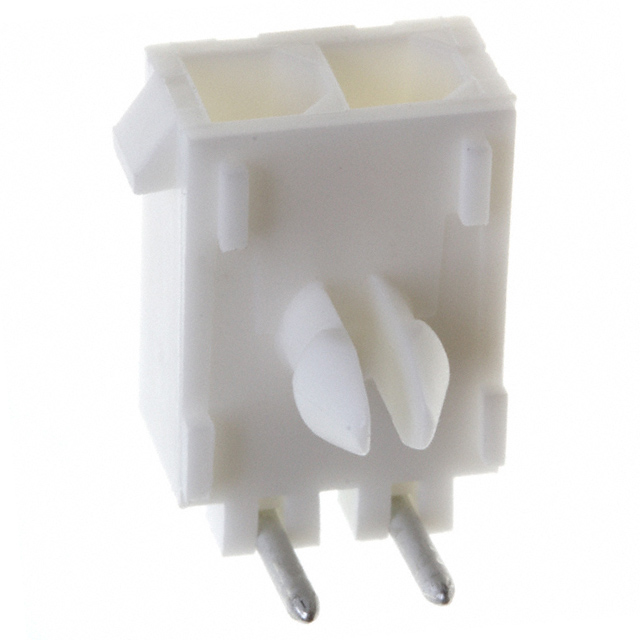

CONN HEADER R/A 2POS 4.14MM
| Part | Applications | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Material Flammability Rating | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Connector Type | Termination | Current Rating (Amps) | Voltage Rating | Style | Pitch - Mating | Pitch - Mating | Insulation Color | Features | Shrouding | Insulation Material | Number of Positions | Number of Positions Loaded | Mounting Type | Fastening Type | Contact Material | Contact Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | 3.81 Ám | 5.72 mm | 0.225 in | UL94 V-0 | 1 | 0.76 Ám | 30 Áin | Gold | Circular | -20 ░C | 105 ░C | 3.68 mm | 0.145 in | Header | Solder | Varies by Wire Gauge | 600 VAC | Board to Cable/Wire | 0.163 in | 4.14 mm | White | Board Lock | Shrouded - 4 Wall | Nylon Polyamide (PA) | 2 | All | Right Angle Through Hole | Locking Ramp | Brass | Male Pin | Tin-Lead |
