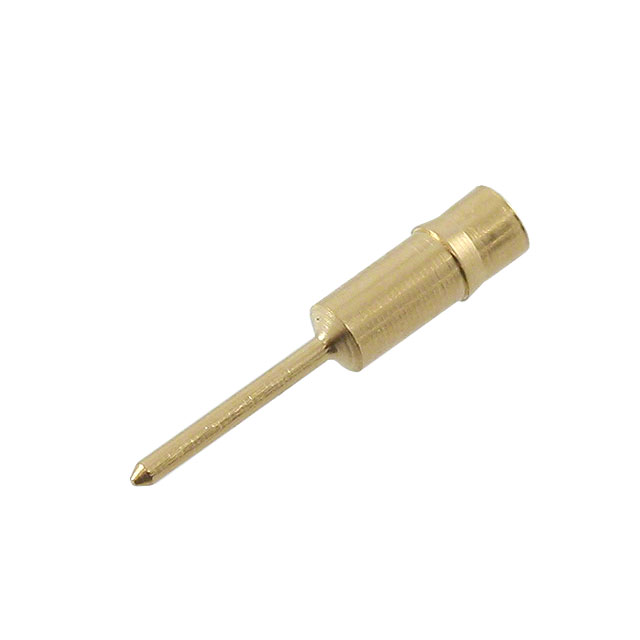

8114-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Min] [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Square Pin Size	Accepts Square Pin Size	Length - Overall [x]	Length - Overall [x]	Contact Finish	Contact Material	Tail Diameter [diameter]	Tail Diameter [diameter]	Socket Depth [z]	Socket Depth [z]
Mill-Max Manufacturing Corp. 8114-0-15-80-16-27-04-0	-55 C	125 °C	Standard Tail	30 Áin	0.76 Ám	Press-Fit	0.051 in	1.3 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	1.65 mm	0.065 in	0.025 in	0.64 mm	0.37 in	9.4 mm	Gold	Beryllium Copper	0.51 mm	0.02 in	3.81 mm	0.15 in
Mill-Max Manufacturing Corp. 8114-0-15-01-16-14-04-0	-55 C	125 °C	Standard Tail	10 Áin	0.25 Ám	Press-Fit	0.051 in	1.3 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	1.65 mm	0.065 in	0.025 in	0.64 mm	0.37 in	9.4 mm	Gold	Beryllium Copper	0.51 mm	0.02 in	3.81 mm	0.15 in
Mill-Max Manufacturing Corp. 8114-0-15-01-16-27-04-0	-55 C	125 °C	Standard Tail	30 Áin	0.76 Ám	Press-Fit	0.051 in	1.3 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	1.65 mm	0.065 in	0.025 in	0.64 mm	0.37 in	9.4 mm	Gold	Beryllium Copper	0.51 mm	0.02 in	3.81 mm	0.15 in
Mill-Max Manufacturing Corp. 8114-0-15-80-16-80-04-0	-55 C	125 °C	Standard Tail	200 Áin	5.08 Ám	Press-Fit	0.051 in	1.3 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	1.65 mm	0.065 in	0.025 in	0.64 mm	0.37 in	9.4 mm	Tin	Beryllium Copper	0.51 mm	0.02 in	3.81 mm	0.15 in
Mill-Max Manufacturing Corp. 8114-0-15-15-16-27-04-0	-55 C	125 °C	Standard Tail	30 Áin	0.76 Ám	Press-Fit	0.051 in	1.3 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	1.65 mm	0.065 in	0.025 in	0.64 mm	0.37 in	9.4 mm	Gold	Beryllium Copper	0.51 mm	0.02 in	3.81 mm	0.15 in
Mill-Max Manufacturing Corp. 8114-0-15-15-16-14-04-0	-55 C	125 °C	Standard Tail	10 Áin	0.25 Ám	Press-Fit	0.051 in	1.3 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	1.65 mm	0.065 in	0.025 in	0.64 mm	0.37 in	9.4 mm	Gold	Beryllium Copper	0.51 mm	0.02 in	3.81 mm	0.15 in
