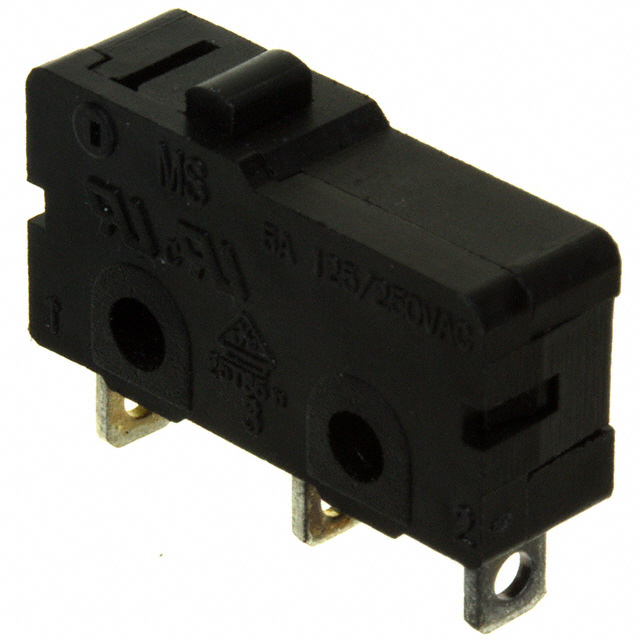

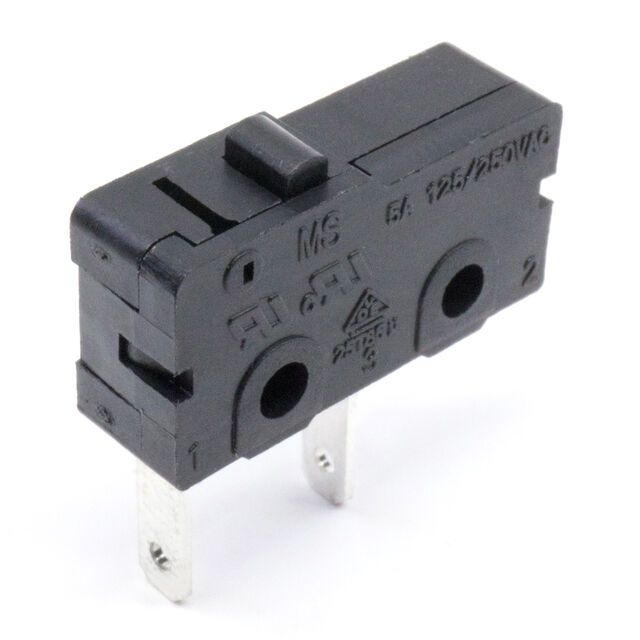

MS0850500 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SNAP ACTION SPDT 5A 125V
| Part | Mechanical Life | Pretravel | Pretravel | Operating Force | Electrical Life | Termination Style | Current Rating (Amps) | Switch Function | Circuit | Mounting Type | Release Force | Voltage Rating - AC | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Operating Position | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 1000000 Cycles | 1.1 mm | 0.043 in | 80 gf | 50000 Cycles | Quick Connect - 0.110" (2.8mm) | 5 A | On-Mom | SPDT | Chassis Mount | 25 gf | 125 V | Round (Pin Plunger) | 85 °C | -25 °C | 8.5 mm | 0.335 " |
