XS5C Series
Ethernet Cables / Networking Cables 5M Cable 2End Conn. M12 Right Angle Both
Manufacturer: Omron Automation and Safety
Catalog
Ethernet Cables / Networking Cables 5M Cable 2End Conn. M12 Right Angle Both
Beta
⌘K
Ethernet Cables / Networking Cables 5M Cable 2End Conn. M12 Right Angle Both
Ethernet Cables / Networking Cables 5M Cable 2End Conn. M12 Right Angle Both
Ethernet Cables / Networking Cables 5M Cable 2End Conn. M12 Right Angle Both
| Part | Number of Positions | Primary Material | Current Rating (Amps) | Ingress Protection | Termination | Connector Type | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Material Flammability Rating | Shell Finish | Shell Size - Insert | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Insert Material | Shell Material | Orientation | Mounting Type | Color | Fastening Type | Backshell Material, Plating | Features | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Type | Housing Color | Note | Contact Shape | Contact Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 5 | Metal | 4 A | IP67 - Dust Tight Waterproof | Screw | Receptacle Female Sockets | 6 mm | 0.236 in | 5 mm | 0.197 in | UL94 V-0 | Nickel | M12-5 | 16 Áin | 0.41 Ám | Gold | Polybutylene Terephthalate (PBT) | Zinc Alloy | Keyed | Free Hanging (In-Line) | Black Silver | Push-Twist | Polybutylene Terephthalate (PBT) | Backshell Coupling Nut | -25 °C | 70 °C | |||||||
Omron Automation and Safety | 4 | IP67 - Dust Tight Waterproof | Receptacle Housing | UL94 V-0 | Nickel | M12-4 | Polybutylene Terephthalate Resin (PBT) | Zinc Alloy | Keyed | Free Hanging (In-Line) | Bayonet Lock | Backshell Coupling Nut | -25 °C | 70 °C | Unshielded | For Female Sockets | Silver | Contacts Not Included | Circular | Crimp | |||||||||||||
 Omron Automation and Safety | 4 | Metal | 4 A | IP67 - Dust Tight Waterproof | Screw | Receptacle Female Sockets | 8 mm | 0.315 in | 7 mm | 0.276 " | UL94 V-0 | Nickel | M12-4 | 16 Áin | 0.41 Ám | Gold | Polybutylene Terephthalate (PBT) | Zinc Alloy | Keyed | Free Hanging (In-Line) | Black Silver | Push-Twist | Polybutylene Terephthalate (PBT) | Backshell Coupling Nut | -25 °C | 70 °C | |||||||
Omron Automation and Safety | 4 | Metal | 4 A | IP67 - Dust Tight Waterproof | Screw | Receptacle Female Sockets | 6 mm | 0.236 in | 5 mm | 0.197 in | UL94 V-0 | Nickel | M12-4 | 16 Áin | 0.41 Ám | Gold | Polybutylene Terephthalate (PBT) | Zinc Alloy | Keyed | Free Hanging (In-Line) | Black Silver | Push-Twist | Polybutylene Terephthalate (PBT) | Backshell Coupling Nut | -25 °C | 70 °C | |||||||

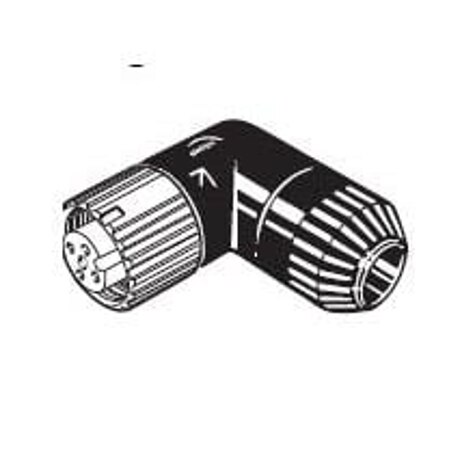

 Omron Automation and Safety | 4 | Metal | 4 A | IP67 - Dust Tight Waterproof | Screw | Receptacle Female Sockets | 4 mm | 0.157 in | 3 mm | 0.118 in | UL94 V-0 | Nickel | M12-4 | 16 Áin | 0.41 Ám | Gold | Polybutylene Terephthalate (PBT) | Zinc Alloy | Keyed | Free Hanging (In-Line) Right Angle | Black Silver | Push-Twist | Polybutylene Terephthalate (PBT) | Backshell Coupling Nut | -25 °C | 70 °C | |||||||
Omron Automation and Safety | 5 | Metal | 4 A | IP67 - Dust Tight Waterproof | Screw | Receptacle Female Sockets | 5 mm | 0.197 in | 4 mm | 0.157 in | UL94 V-0 | Nickel | M12-5 | 16 Áin | 0.41 Ám | Gold | Polybutylene Terephthalate (PBT) | Zinc Alloy | Keyed | Free Hanging (In-Line) | Black Silver | Push-Twist | Polybutylene Terephthalate (PBT) | Backshell Coupling Nut | -25 °C | 70 °C | |||||||
 Omron Automation and Safety | 4 | Metal | 4 A | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | 4 mm | 0.157 in | 3 mm | 0.118 in | UL94 V-0 | Nickel | M12-4 | 16 Áin | 0.41 Ám | Gold | Polybutylene Terephthalate (PBT) | Zinc Alloy | Keyed | Free Hanging (In-Line) Right Angle | Black Silver | Push-Twist | Polybutylene Terephthalate (PBT) | Backshell Coupling Nut | -25 °C | 70 °C | Brass | |||||||
 Omron Automation and Safety | 4 | IP67 - Dust Tight Waterproof | Receptacle Housing | UL94 V-0 | Nickel | M12-4 | Polybutylene Terephthalate Resin (PBT) | Zinc Alloy | Keyed | Free Hanging (In-Line) | Bayonet Lock | Backshell Coupling Nut | -25 °C | 70 °C | Unshielded | For Female Sockets | Silver | Contacts Not Included | Circular | Crimp | |||||||||||||
Omron Automation and Safety | 4 | Metal | 4 A | IP67 - Dust Tight Waterproof | Screw | Receptacle Female Sockets | 7 mm | 0.276 " | 6 mm | 0.236 in | UL94 V-0 | Nickel | M12-4 | 16 Áin | 0.41 Ám | Gold | Polybutylene Terephthalate (PBT) | Zinc Alloy | Keyed | Free Hanging (In-Line) | Black Silver | Push-Twist | Polybutylene Terephthalate (PBT) | Backshell Coupling Nut | -25 °C | 70 °C | |||||||
 Omron Automation and Safety | 4 | IP67 - Dust Tight Waterproof | Receptacle Housing | UL94 V-0 | Nickel | M12-4 | Polybutylene Terephthalate Resin (PBT) | Zinc Alloy | Keyed | Free Hanging (In-Line) Right Angle | Bayonet Lock | Backshell Coupling Nut | -25 °C | 70 °C | Unshielded | For Female Sockets | Silver | Contacts Not Included | Circular | Crimp |
