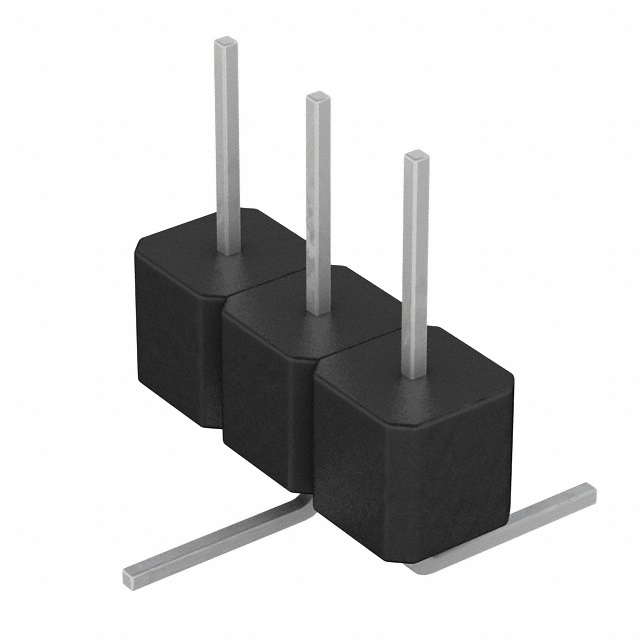

GTC03 Series

Catalog

CONN HEADER SMD R/A 3POS 2.54MM

Part	Contact Finish - Post	Termination	Contact Finish - Mating	Contact Type	Number of Rows	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Fastening Type	Style	Insulation Color	Shrouding	Current Rating (Amps)	Insulation Material	Insulation Height	Insulation Height	Material Flammability Rating	Contact Shape	Mounting Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating
Sullins Connector Solutions GTC03SGSN-M89	Tin-Lead	Solder	Tin-Lead	Male Pin	1	Phosphor Bronze	0.1 in	2.54 mm	2.54 çm	100 çin	Header	Push-Pull	Board to Board Cable	Black	Unshrouded	3 A	Nylon 9T Polyamide (PA9T)	3.56 mm	0.14 in	UL94 V-0	Square	Surface Mount Right Angle	600 V	125 °C	-65 ░C	All	0.318 "	8.08 mm	2.54 µm	100 µin
Sullins Connector Solutions GTC03SABN-M30	Tin-Lead	Solder	Tin-Lead	Male Pin	1	Phosphor Bronze	0.1 in	2.54 mm	2.54 çm	100 çin	Header	Push-Pull	Board to Board Cable	Black	Unshrouded	3 A	Nylon 9T Polyamide (PA9T)	2.54 mm	0.1 in	UL94 V-0	Square	Surface Mount	600 V	125 °C	-65 ░C	All	0.23 in		2.54 µm	100 µin	5.84 mm
