ELG108M Series
Manufacturer: KEMET
Beta
⌘K
ELECTROLYTIC CAPACITOR, SNAP-IN, ELG SERIES, 1000 F, 20%, 200 V, 35 MM, 0.09 OHM ROHS COMPLIANT: YES
| Part | Package / Case | Size / Dimension [diameter] | Size / Dimension [diameter] | Applications | Voltage - Rated | ESR (Equivalent Series Resistance) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Ripple Current @ Low Frequency | Lead Spacing | Lead Spacing | Operating Temperature [Max] | Operating Temperature [Min] | Lifetime @ Temp. | Polarization | Tolerance | Ripple Current @ High Frequency | Capacitance | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

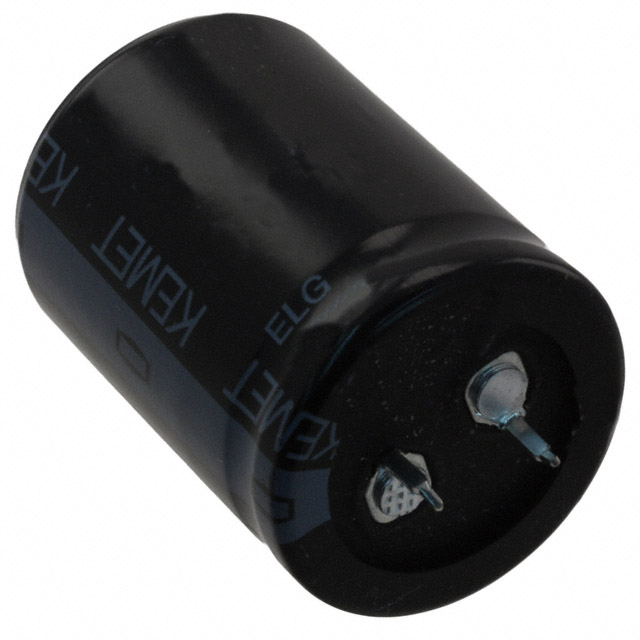

 KEMET | Radial Can - Snap-In | 1.378 " | 35 mm | General Purpose | 200 VDC | 90 mOhm | 1.26 in | 32 mm | Through Hole | 2.3 A | 0.394 in | 10 mm | 105 ░C | -25 °C | 2000 Hrs | Polar | 20 % | 3.45 A | 1000 µF | |

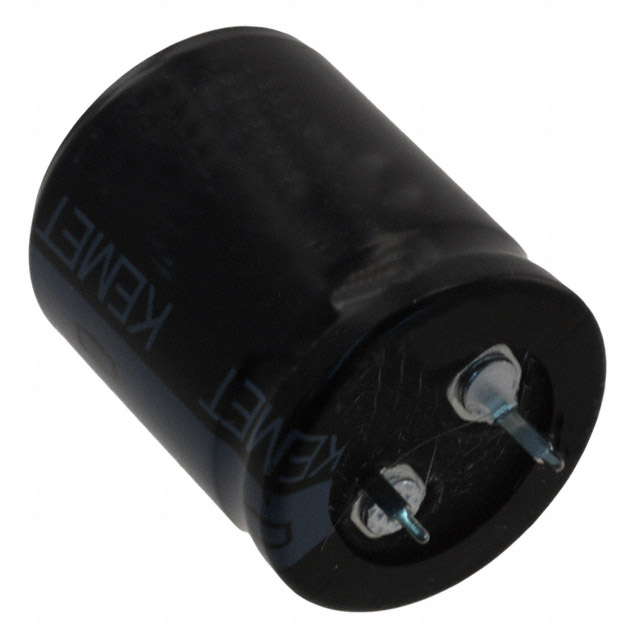

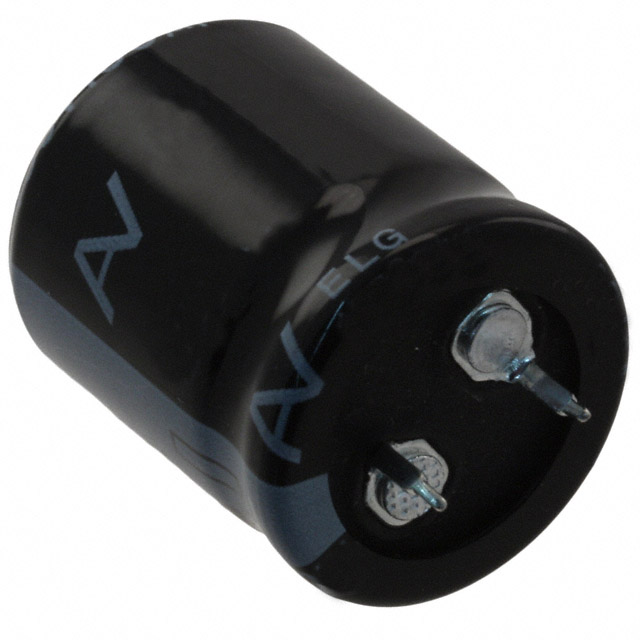

 KEMET | Radial Can - Snap-In | 0.984 " | 25 mm | General Purpose | 100 V | 1.26 in | 32 mm | Through Hole | 0.394 in | 10 mm | 105 ░C | -40 C | 2000 Hrs | Polar | 20 % | 1000 µF | ||||
 KEMET | Radial Can - Snap-In | 0.984 " | 25 mm | General Purpose | 100 V | 1.26 in | 32 mm | Through Hole | 1.5 A | 0.394 in | 10 mm | 105 ░C | -40 C | 2000 Hrs | Polar | 20 % | 1.74 A | 1000 µF | ||
 KEMET | Radial Can - Snap-In | 1.181 " | General Purpose | 200 VDC | 90 mOhm | 1.654 in | 42 mm | Through Hole | 2.3 A | 0.394 in | 10 mm | 105 ░C | -25 °C | 2000 Hrs | Polar | 20 % | 3.45 A | 1000 µF | 30 mm |
