ASP046 Series

Catalog

SPRING CLAMP TERMINAL BLOCK, PLU

Part	Ingress Protection	Housing Material	Insulation Height	Insulation Height	Material Flammability Rating	Color	Positions Per Level	Plug Wire Entry	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Current - UL	Voltage - UL	Features	Mounting Type	Type	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Pitch	Pitch	Positions Per Level [custom]	Number of Positions

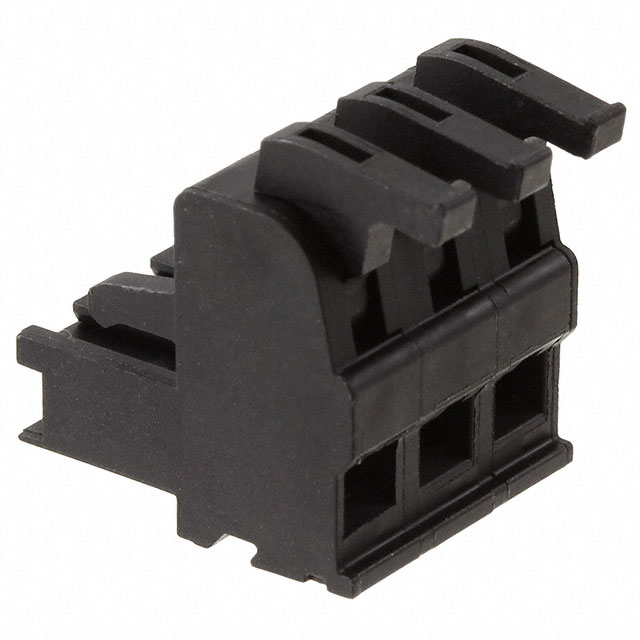

METZ CONNECT USA Inc. ASP0460322	IP20	Polyamide (PA46) Nylon 4/6	0.61 in	15.49 mm	UL94 V-0	Black	3	180 °	28 AWG	16 AWG	1 mm²	0.08 mm²	10 A	300 V	Lever Actuated Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Plug Female Sockets	1	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	5.08 mm	0.2 in
METZ CONNECT USA Inc. ASP0460722	IP20	Polyamide (PA46) Nylon 4/6	0.61 in	15.49 mm	UL94 V-0	Black		180 °	28 AWG	16 AWG	1 mm²	0.08 mm²	10 A	300 V	Lever Actuated Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Plug Female Sockets	1	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	5.08 mm	0.2 in	7	7

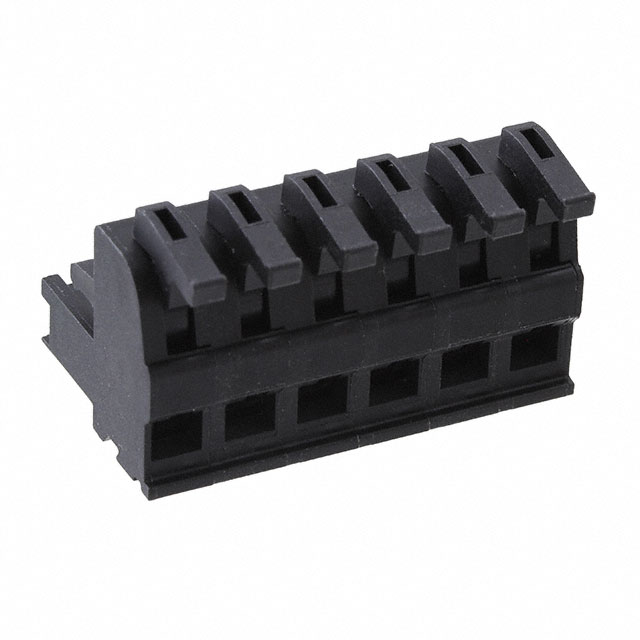

METZ CONNECT USA Inc. ASP0460622	IP20	Polyamide (PA46) Nylon 4/6	0.61 in	15.49 mm	UL94 V-0	Black	6	180 °	28 AWG	16 AWG	1 mm²	0.08 mm²	10 A	300 V	Lever Actuated Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Plug Female Sockets	1	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	5.08 mm	0.2 in		6
METZ CONNECT USA Inc. ASP0461022	IP20	Polyamide (PA46) Nylon 4/6	0.61 in	15.49 mm	UL94 V-0	Black	10	180 °	28 AWG	16 AWG	1 mm²	0.08 mm²	10 A	300 V	Lever Actuated Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Plug Female Sockets	1	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	5.08 mm	0.2 in		10

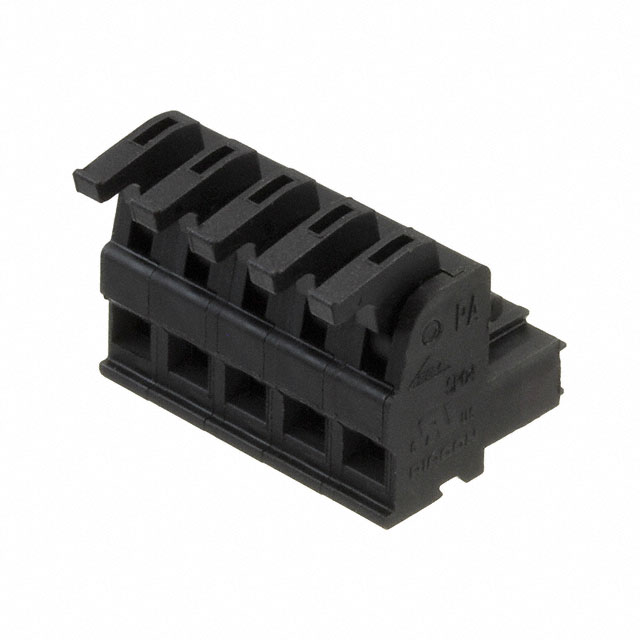

METZ CONNECT USA Inc. ASP0460522	IP20	Polyamide (PA46) Nylon 4/6	0.61 in	15.49 mm	UL94 V-0	Black	5	180 °	28 AWG	16 AWG	1 mm²	0.08 mm²	10 A	300 V	Lever Actuated Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Plug Female Sockets	1	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	5.08 mm	0.2 in		5
METZ CONNECT USA Inc. ASP0461222	IP20	Polyamide (PA46) Nylon 4/6	0.61 in	15.49 mm	UL94 V-0	Black	12	180 °	28 AWG	16 AWG	1 mm²	0.08 mm²	10 A	300 V	Lever Actuated Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Plug Female Sockets	1	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	5.08 mm	0.2 in		12

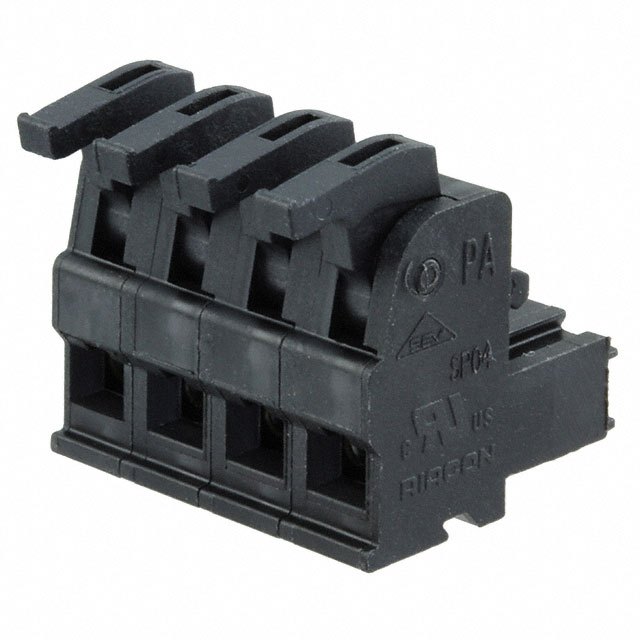

METZ CONNECT USA Inc. ASP0460422	IP20	Polyamide (PA46) Nylon 4/6	0.61 in	15.49 mm	UL94 V-0	Black	4	180 °	28 AWG	16 AWG	1 mm²	0.08 mm²	10 A	300 V	Lever Actuated Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Plug Female Sockets	1	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	5.08 mm	0.2 in		4

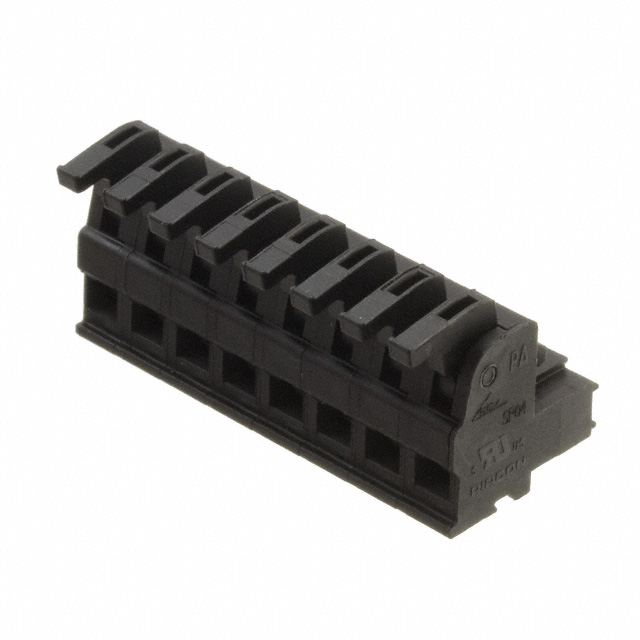

METZ CONNECT USA Inc. ASP0460822	IP20	Polyamide (PA46) Nylon 4/6	0.61 in	15.49 mm	UL94 V-0	Black	8	180 °	28 AWG	16 AWG	1 mm²	0.08 mm²	10 A	300 V	Lever Actuated Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Plug Female Sockets	1	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	5.08 mm	0.2 in		8
METZ CONNECT USA Inc. ASP0461122	IP20	Polyamide (PA46) Nylon 4/6	0.61 in	15.49 mm	UL94 V-0	Black	11	180 °	28 AWG	16 AWG	1 mm²	0.08 mm²	10 A	300 V	Lever Actuated Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Plug Female Sockets	1	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	5.08 mm	0.2 in		11

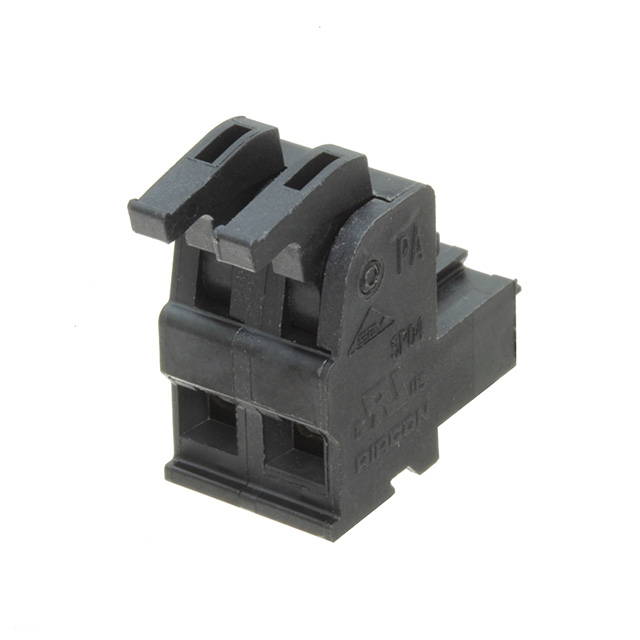

METZ CONNECT USA Inc. ASP0460222	IP20	Polyamide (PA46) Nylon 4/6	0.61 in	15.49 mm	UL94 V-0	Black	2	180 °	28 AWG	16 AWG	1 mm²	0.08 mm²	10 A	300 V	Lever Actuated Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Plug Female Sockets	1	-40 C	105 ░C	Screwless - Spring Cage Tension Clamp	5.08 mm	0.2 in		2
