R14172 Series

Catalog

BNC / BULKHEAD FEMALE-FEMALE ADA

Part	Body Finish	Dielectric Material	Mating Cycles	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Mounting Feature	Adapter Series	Frequency - Max [Max]	Fastening Type	Convert To (Adapter End)	Convert From (Adapter End)	Adapter Type	Mounting Type	Conversion Type	Center Gender	Style	Center Contact Plating	Impedance
Radiall USA, Inc. R141720000W	Nickel	Polytetrafluoroethylene (PTFE)	500	Beryllium Copper	-65 ░C	165 °C	Brass	Bulkhead	BNC to BNC	4 GHz	Bayonet Lock	BNC Jack Female Socket	BNC Jack Female Socket	Jack to Jack	Panel Mount	Same Series	Female to Female	Straight	Gold	50 Ohms
Radiall USA, Inc. R141723161W	Nickel	Nylon 6/6 Polyamide (PA66)		Brass	-35 °C	70 °C	Brass	Bulkhead	BNC to BNC	1.5 GHz	Bayonet Lock	BNC Jack Female Socket	BNC Jack Female Socket	Jack to Jack	Panel Mount	Same Series	Female to Female	Straight	Gold	50 Ohms

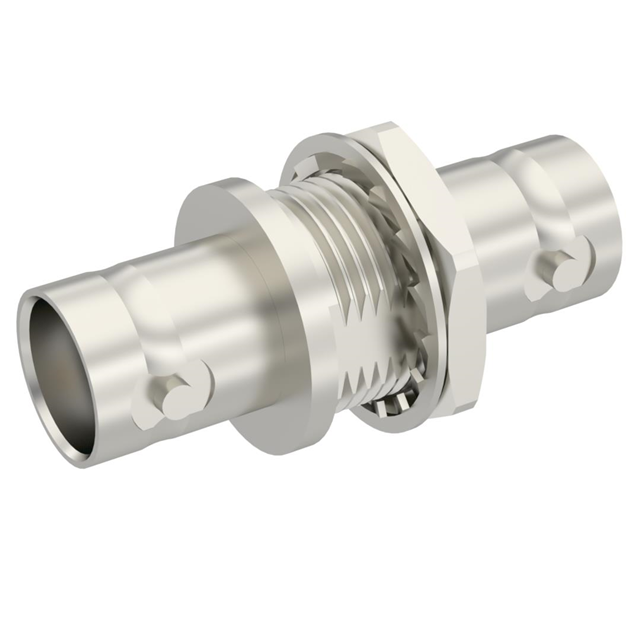

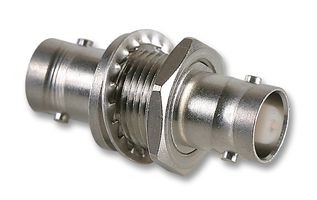

Radiall USA, Inc. R141720000	Nickel	Polytetrafluoroethylene (PTFE)	500	Beryllium Copper	-65 ░C	165 °C	Brass	Bulkhead	BNC to BNC	4 GHz	Bayonet Lock	BNC Jack Female Socket	BNC Jack Female Socket	Jack to Jack	Panel Mount	Same Series	Female to Female	Straight	Gold	50 Ohms
Radiall USA, Inc. R141723000	Nickel	Polytetrafluoroethylene (PTFE)	500	Beryllium Copper	-65 ░C	165 °C	Brass	Bulkhead	BNC to BNC	4 GHz	Bayonet Lock	BNC Jack Female Socket	BNC Jack Female Socket	Jack to Jack	Panel Mount	Same Series	Female to Female	Straight	Gold	50 Ohms

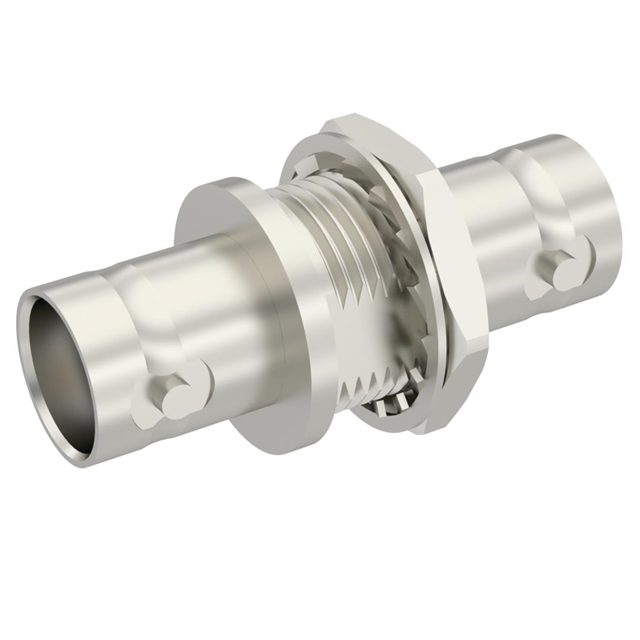

Radiall USA, Inc. R141723161	Nickel	Nylon 6/6 Polyamide (PA66)		Brass	-35 °C	70 °C	Brass	Bulkhead	BNC to BNC	1.5 GHz	Bayonet Lock	BNC Jack Female Socket	BNC Jack Female Socket	Jack to Jack	Panel Mount	Same Series	Female to Female	Straight	Gold	50 Ohms
