2141-7521 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

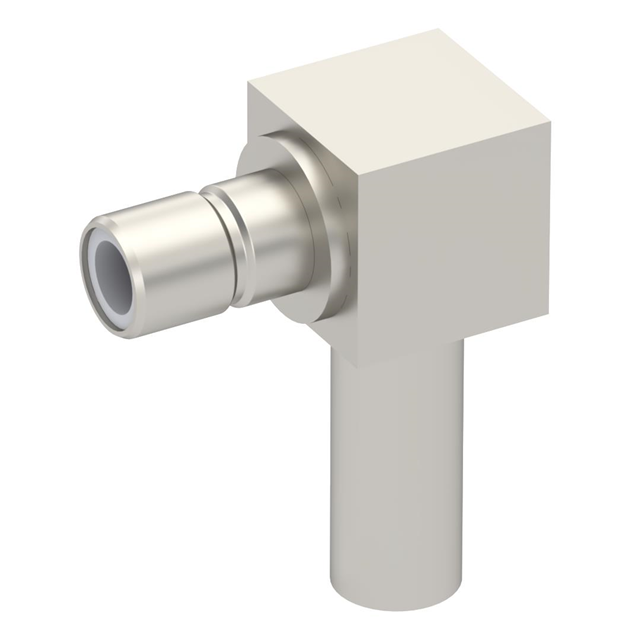

SMB / RIGHT ANGLE JACK MALE CRIM
| Part | Dielectric Material | Body Finish | Insertion Loss | Body Material | Voltage Rating | Center Contact Plating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Shield Termination | Frequency - Max [Max] | Contact Termination | Number of Ports | Center Contact Material | Impedance | Housing Color | Fastening Type | Mounting Type | Cable Group | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Nickel | 0.6 dB | Brass | 335 V | Gold | 500 | -65 ░C | 165 °C | SMB | Crimp | 4 GHz | Crimp | 1 | Brass | 50 Ohms | Silver | Snap-On | Free Hanging (In-Line) Right Angle | RG-316 Double Braid | Jack Male Pin |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Nickel | 0.6 dB | Brass | 335 V | Gold | 500 | -65 ░C | 165 °C | SMB | Crimp | 4 GHz | Crimp | 1 | Brass | 50 Ohms | Silver | Snap-On | Free Hanging (In-Line) Right Angle | 188 316 RG-174 | Jack Male Pin |
