ECW-F2225 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 2.2UF 3% 250VDC RADIAL

Part	Capacitance	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Termination	Lead Spacing	Lead Spacing	Applications	Tolerance	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Dielectric Material	Mounting Type	Voltage Rating - AC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

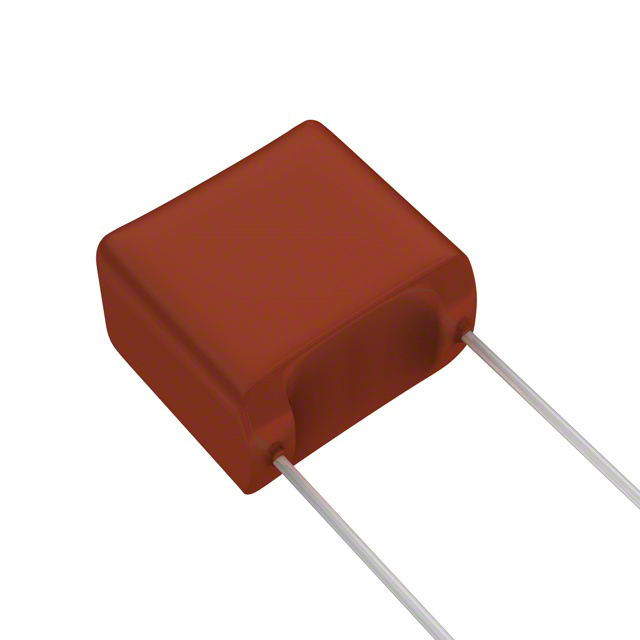

Panasonic Electronic Components ECW-F2225RHA	2.2 µF	Radial	0.74 "	18.8 mm	12.6 mm	0.496 in	PC Pins	15 mm	0.591 in	High Frequency Switching	3 %	250 V	-40 C	105 ░C	19.1 mm	0.752 "	Polypropylene (PP) Metallized	Through Hole
Panasonic Electronic Components ECW-F2225JA	2.2 µF	Radial	0.74 "	18.8 mm	12.6 mm	0.496 in	PC Pins	15 mm	0.591 in	High Frequency Switching	5 %	250 V	-40 C	105 ░C	19.1 mm	0.752 "	Polypropylene (PP) Metallized	Through Hole	125 V

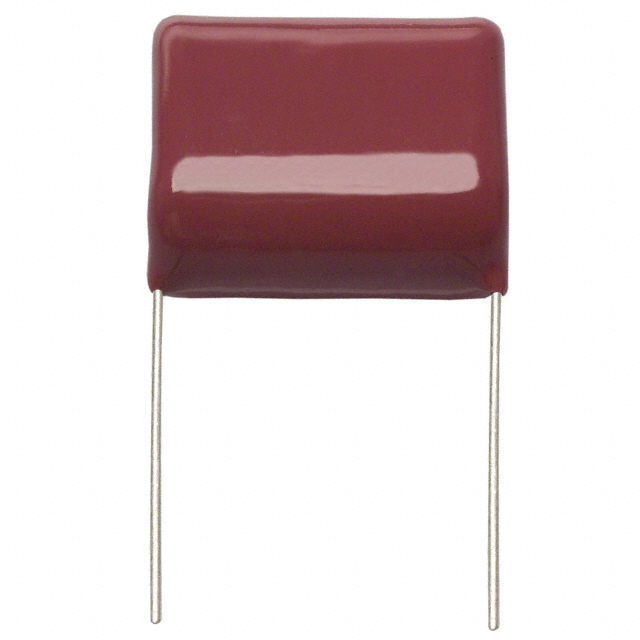

Panasonic Electronic Components ECW-F2225JB	2.2 µF	Radial	1.102 "	28 mm	14 mm	0.551 in	PC Pins	25 mm	0.984 in	High Frequency Switching	5 %	250 V	-25 °C	85 °C		0.945 "	Polypropylene (PP) Metallized	Through Hole		24 mm

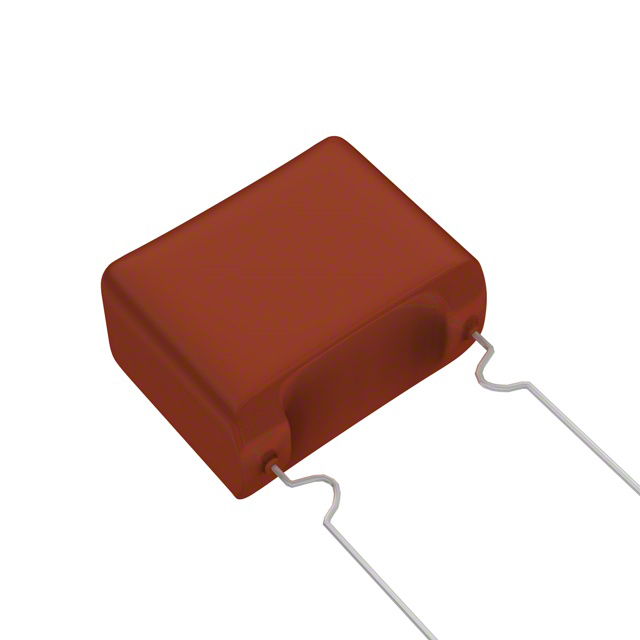

Panasonic Electronic Components ECW-F2225JAB	2.2 µF	Radial	0.74 "	18.8 mm	12.6 mm	0.496 in	PC Pins	7.5 mm	0.295 in	High Frequency Switching	5 %	250 V	-40 C	105 ░C		0.949 in	Polypropylene (PP) Metallized	Through Hole		24.1 mm

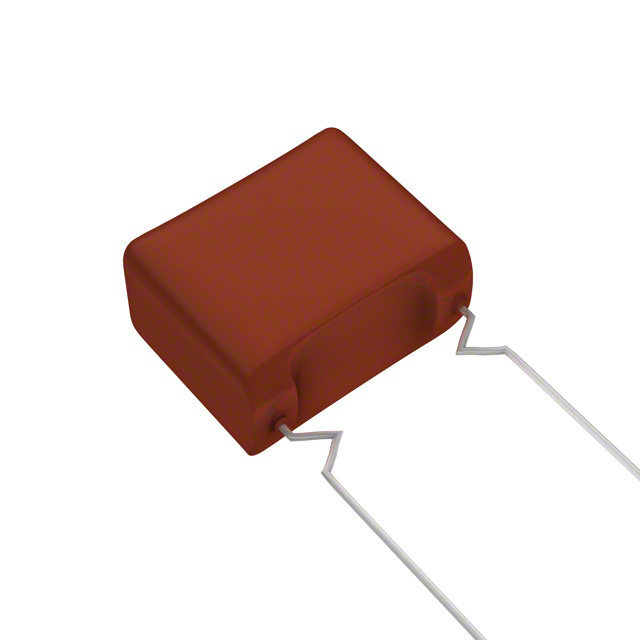

Panasonic Electronic Components ECW-F2225JAQ	2.2 µF	Radial	0.74 "	18.8 mm	12.6 mm	0.496 in	PC Pins	15 mm	0.591 in	High Frequency Switching	5 %	250 V	-40 C	105 ░C			Polypropylene (PP) Metallized	Through Hole			1.028 in	26.1 mm
Panasonic Electronic Components ECW-F2225HA	2.2 µF	Radial	0.74 "	18.8 mm	12.6 mm	0.496 in	PC Pins	15 mm	0.591 in	High Frequency Switching	3 %	250 V	-40 C	105 ░C	19.1 mm	0.752 "	Polypropylene (PP) Metallized	Through Hole
Panasonic Electronic Components ECW-F2225RJA	2.2 µF	Radial	0.74 "	18.8 mm	12.6 mm	0.496 in	PC Pins	15 mm	0.591 in	High Frequency Switching	5 %	250 V	-40 C	105 ░C	19.1 mm	0.752 "	Polypropylene (PP) Metallized	Through Hole
Panasonic Electronic Components ECW-F2225HAB	2.2 µF	Radial	0.74 "	18.8 mm	12.6 mm	0.496 in	PC Pins	7.5 mm	0.295 in	High Frequency Switching	3 %	250 V	-40 C	105 ░C		0.949 in	Polypropylene (PP) Metallized	Through Hole		24.1 mm
