892-038 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SINGLE FML 38POS 0.100

...

Part	Material - Insulation	Termination Rows	Card Thickness [Max]	Card Thickness [Min]	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Material	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Color	Mounting Type	Read Out	Pitch	Pitch	Number of Rows	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Card Type	Number of Positions/Bay/Row [custom]	Number of Positions	Termination Rows [custom]	Number of Rows [custom]	Number of Positions/Bay/Row	Features
EDAC Inc. 892-038-523-112	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	125 °C	-40 C	Gold	Copper Alloy	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Black	Through Hole	Single	0.1 "	2.54 mm	1	Solder	0.25 Ám	10 Áin	Cantilever	Non Specified - Single Edge	38	38

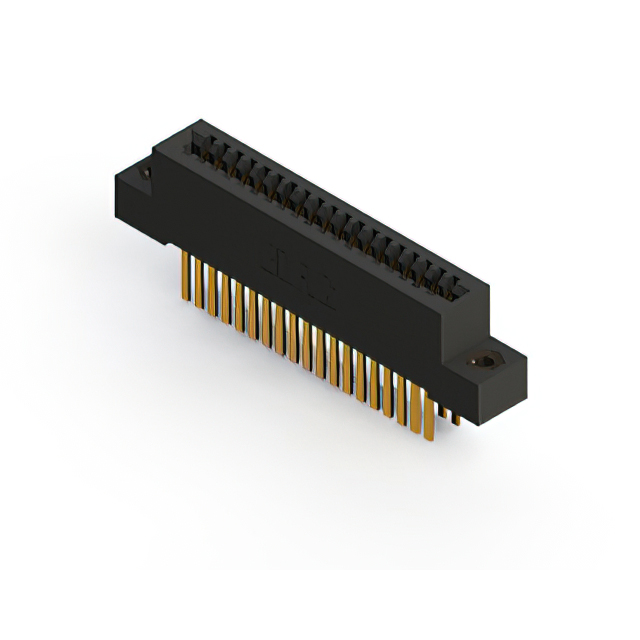

EDAC Inc. 892-038-544-207	Polyphenylene Sulfide (PPS)		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	125 °C	-40 C	Gold	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening			Black	Through Hole	Dual	0.1 "	2.54 mm		Wire Wrap	0.25 Ám	10 Áin	Cantilever	Non Specified - Dual Edge		38	2	2	19
EDAC Inc. 892-038-544-208	Polyphenylene Sulfide (PPS)		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	125 °C	-40 C	Gold	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening			Black	Through Hole	Dual	0.1 "	2.54 mm		Wire Wrap	0.25 Ám	10 Áin	Cantilever	Non Specified - Dual Edge		38	2	2	19
EDAC Inc. 892-038-544-104	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	125 °C	-40 C	Gold	Copper Alloy	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Black	Through Hole	Single	0.1 "	2.54 mm	1	Wire Wrap	0.25 Ám	10 Áin	Cantilever	Non Specified - Single Edge	38	38

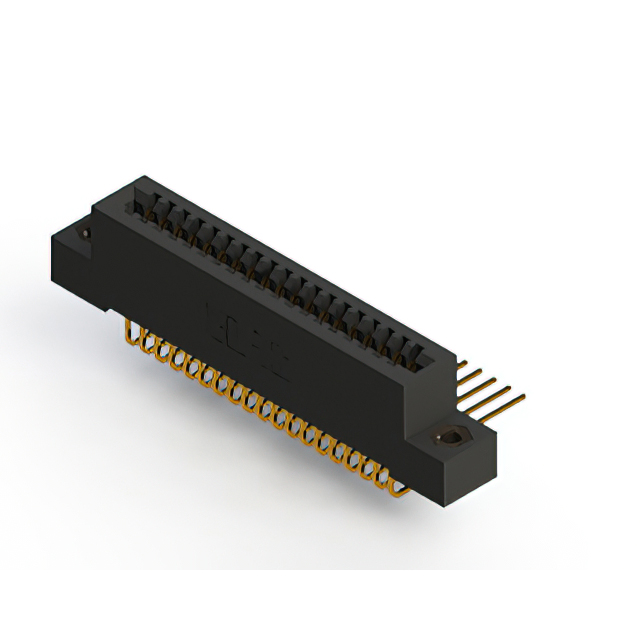

EDAC Inc. 892-038-559-207	Polyphenylene Sulfide (PPS)		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	125 °C	-40 C	Gold	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening			Black	Right Angle Through Hole	Dual	0.1 "	2.54 mm		Solder	0.25 Ám	10 Áin	Cantilever	Non Specified - Dual Edge		38	2	2	19

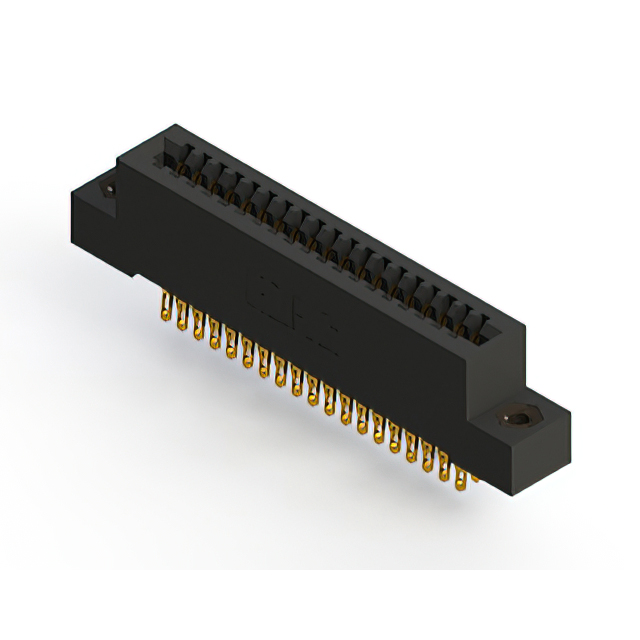

EDAC Inc. 892-038-555-208	Polyphenylene Sulfide (PPS)		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	125 °C	-40 C	Gold	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening			Black	Board Edge Straddle Mount	Dual	0.1 "	2.54 mm		Solder	0.25 Ám	10 Áin	Cantilever	Non Specified - Dual Edge		38	2	2	19	Card Extender

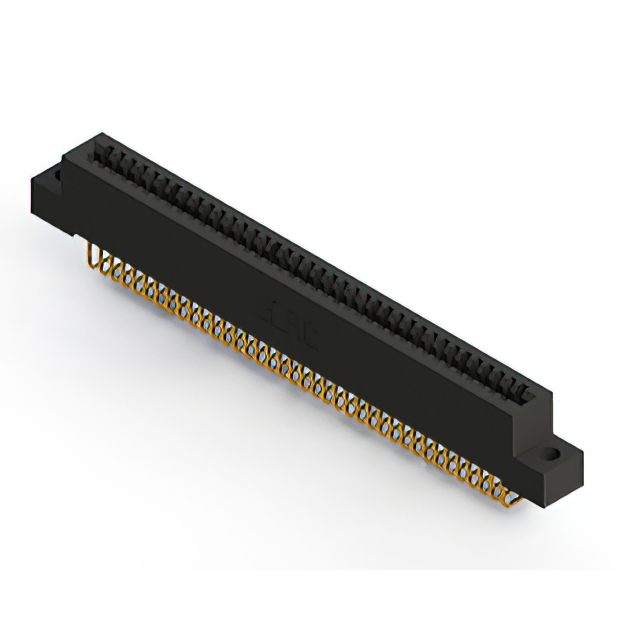

EDAC Inc. 892-038-558-104	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	125 °C	-40 C	Gold	Copper Alloy	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Black	Right Angle Through Hole	Single	0.1 "	2.54 mm	1	Solder	0.25 Ám	10 Áin	Cantilever	Non Specified - Single Edge	38	38

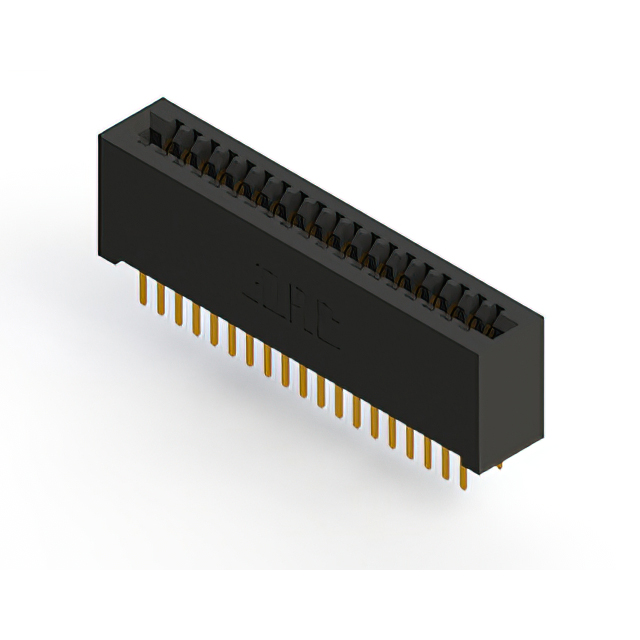

EDAC Inc. 892-038-520-201	Polyphenylene Sulfide (PPS)		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	125 °C	-40 C	Gold	Copper Alloy				Black	Through Hole	Dual	0.1 "	2.54 mm		Solder	0.25 Ám	10 Áin	Cantilever	Non Specified - Dual Edge		38	2	2	19

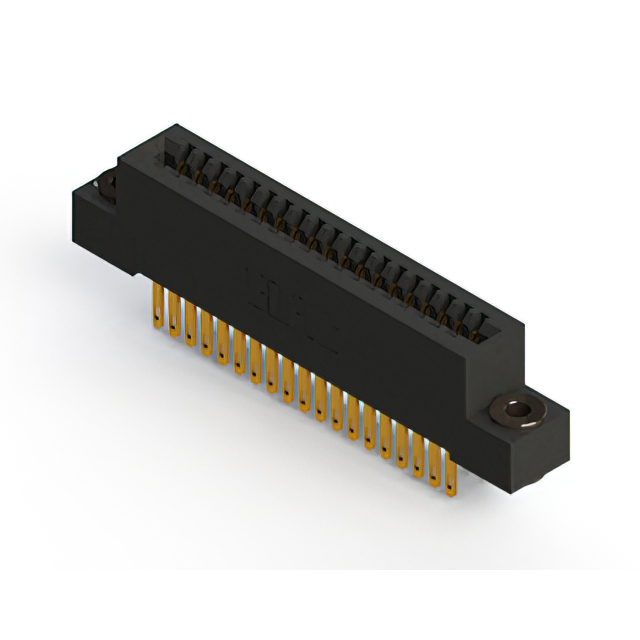

EDAC Inc. 892-038-500-203	Polyphenylene Sulfide (PPS)		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	125 °C	-40 C	Gold	Copper Alloy	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Black	Through Hole	Dual	0.1 "	2.54 mm		Solder Eyelet(s)	0.25 Ám	10 Áin	Cantilever	Non Specified - Dual Edge		38	2	2	19
EDAC Inc. 892-038-520-103	Polyphenylene Sulfide (PPS)	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	125 °C	-40 C	Gold	Copper Alloy	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Black	Through Hole	Single	0.1 "	2.54 mm	1	Solder	0.25 Ám	10 Áin	Cantilever	Non Specified - Single Edge	38	38
