1N5406 Series

NRND = Not Recommended for New Design

Catalog

NRND = Not Recommended for New Design

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Technology	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Capacitance @ Vr, F	Speed [Min]	Current - Average Rectified (Io)	Mounting Type	Package / Case

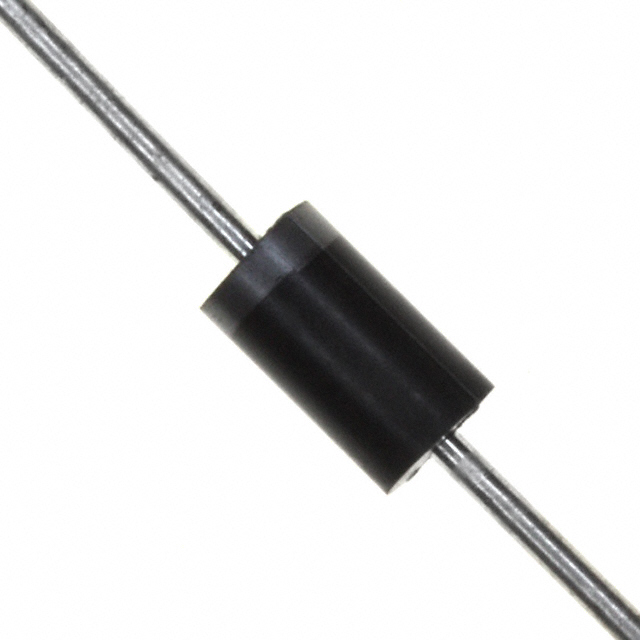

Vishay General Semiconductor - Diodes Division 1N5406-E3/73	600 V	DO-201AD	Standard	5 µA	1.2 V	150 °C	-50 °C	30 pF	200 mA 500 ns	3 A	Through Hole	DO-201AD Axial
Vishay General Semiconductor - Diodes Division 1N5406-E3/54	600 V	DO-201AD	Standard	5 µA	1.2 V	150 °C	-50 °C	30 pF	200 mA 500 ns	3 A	Through Hole	DO-201AD Axial

NRND = Not Recommended for New Design
