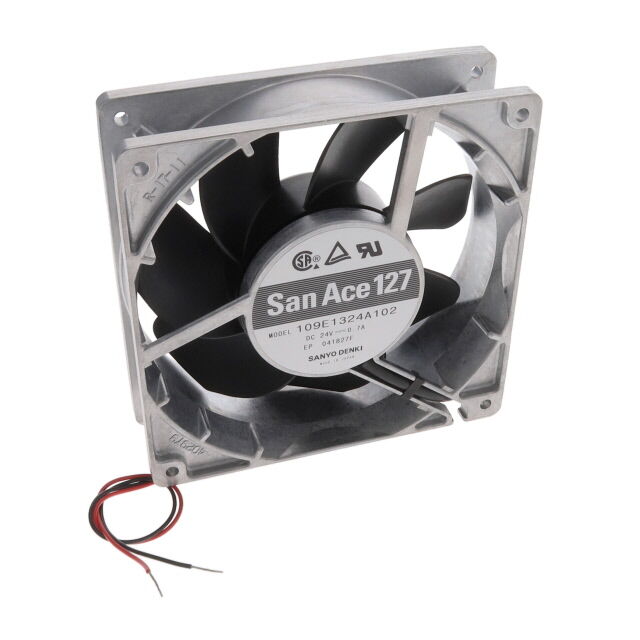

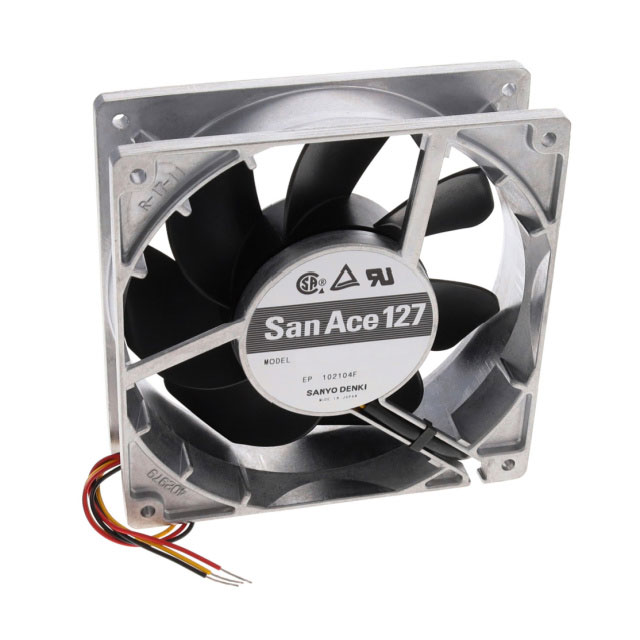

109E1324 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K
FAN AXIAL 127X38MM 24VDC WIRE
| Part | Current Rating (Amps) | Material - Frame | Lifetime @ Temp. | Material - Blade | Bearing Type | Noise | Air Flow | Air Flow | Width [y] | Approval Agency | Features | Weight [custom] | Weight [custom] | Size / Dimension [z] | Size / Dimension [x] | Fan Type | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Termination | Static Pressure | Static Pressure | Voltage - Rated | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 1.1 A | Aluminum | 40000 Hrs | Plastic | Ball | 57 dB | 200 CFM | 5.6 mł/min | 38 mm | CSA TUV UL | Locked Rotor Sensor | 0.882 lb | 400.07 g | 5 in | 5 " | Tubeaxial | 26.4 W | 60 °C | 60 °C | -4 °F | -20 ░C | 3 Wire Leads | 0.867 in H2O | 216 Pa | 24 VDC | 4550 RPM |
Sanyo Denki America Inc. | 0.7 A | Aluminum | Plastic | Ball | 52 dB | 170 CFM | 4.76 m³/min | 38 mm | CSA TUV UL | Locked Rotor Sensor | 0.882 lb | 400.07 g | 5 in | 5 " | Tubeaxial | 16.8 W | 70 °C | -20 ░C | 3 Wire Leads | 0.622 in H2O | 155 Pa | 24 VDC | 3850 RPM |
