AFB1548 Series
Manufacturer: Delta Electronics
Beta
⌘K

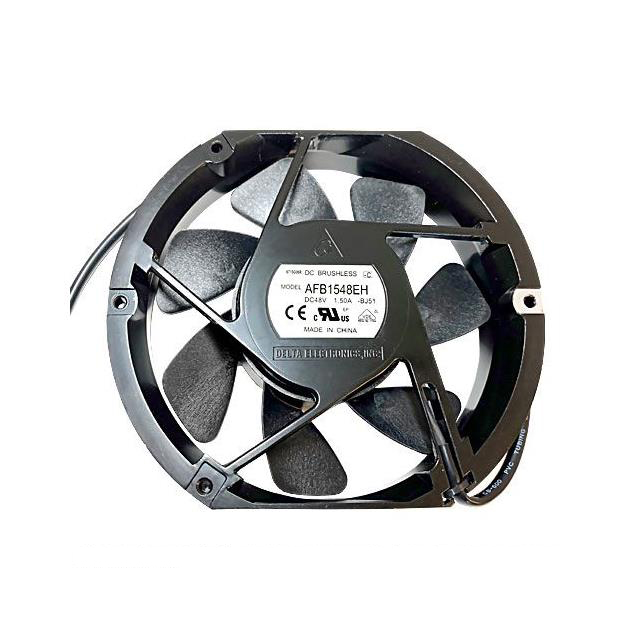

FAN AXIAL 172X25.4MM 48VDC WIRE
| Part | Material - Blade | Material - Frame | Current Rating (Amps) | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Width [y] | Termination | Bearing Type | Weight | Weight | Fan Type | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Power (Watts) | Voltage - Rated | Noise | Static Pressure | Static Pressure | Size / Dimension | Size / Dimension [y] | Size / Dimension [x] | RPM | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | Aluminum | 650 mA | 60 V | 42 VDC | 70000 Hrs | 25.4 mm | 4 Wire Leads | Ball | 499 g | 1.1 lbs | Tubeaxial | CE cURus VDE | -40 C | 70 °C | 70 °C | -40 °C | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 31.2 W | 48 VDC | 65 dB | 298.4 Pa | 1.198 in H2O | Rectangular/Rounded | 150 mm | 172 mm | 5000 RPM | 305 CFM | 8.54 m³/min |
