073412 Series
Manufacturer: Molex
Beta
⌘K
COAX CBL U.FL TO U.FL 2.5"
| Part | Style | Cable Type | Cable Type [diameter] | Length [x] | Length [x] | Overall Impedance | 1st Contact Gender | 1st Connector | 2nd Connector | 1st Connector Mounting Type | 2nd Contact Gender | 2nd Connector Mounting Type | Color | Length | Length | Center Contact Plating | Body Finish | Connector Type | Number of Ports | Connector Style | Housing Color | Impedance | Contact Termination | Voltage Rating | Mating Cycles | Shield Termination | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Frequency - Max [Max] | Dielectric Material | Mounting Type | Fastening Type | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | U.FL (UMCC) to U.FL (UMCC) | Coaxial Cable | 0.81 mm | 2.559 in | 65 mm | 50 Ohms | Female | U.FL (UMCC) Plug Right Angle | U.FL (UMCC) Plug Right Angle | Free Hanging (In-Line) | Female | Free Hanging (In-Line) | ||||||||||||||||||||||

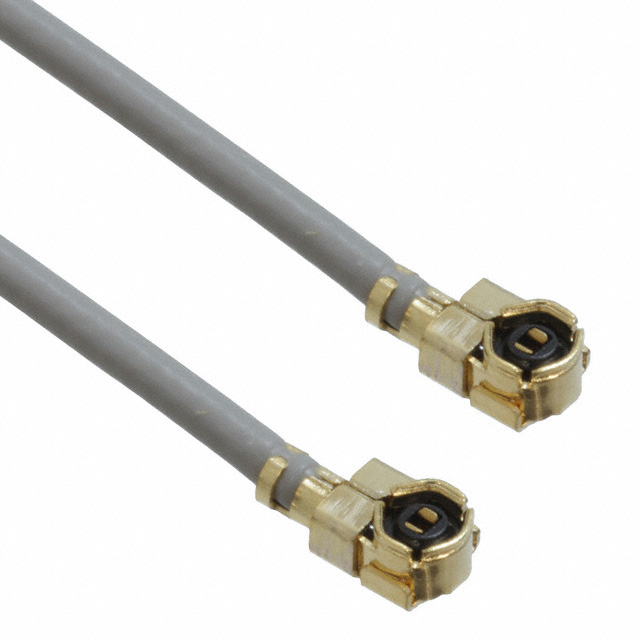

 Molex | U.FL (UMCC) to U.FL (UMCC) | 1.32mm OD Coaxial Cable | 50 Ohms | Female | U.FL (UMCC) Plug Right Angle | U.FL (UMCC) Plug Right Angle | Free Hanging (In-Line) | Female | Free Hanging (In-Line) | Gray | 1.654 " | 42.01 mm | ||||||||||||||||||||||
Molex | ||||||||||||||||||||||||||||||||||

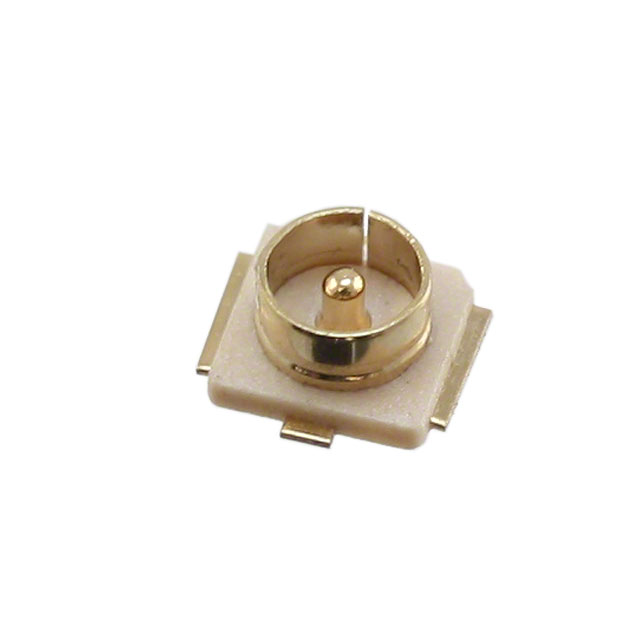

 Molex | Gold | Nickel | Male Pin Receptacle | 1 | U.FL (UMCC) | Silver | 50 Ohms | Solder | 60 VDC | 30 | Solder | 90 °C | -40 °C | Brass | 6000 MHz | Liquid Crystal Polymer (LCP) | Surface Mount | Snap-On | Phosphor Bronze | |||||||||||||||
Molex | ||||||||||||||||||||||||||||||||||
Molex | U.FL (UMCC) to U.FL (UMCC) | 1.32mm OD Coaxial Cable | 4.331 in | 110 mm | 50 Ohms | Female | U.FL (UMCC) Plug Right Angle | U.FL (UMCC) Plug Right Angle | Free Hanging (In-Line) | Female | Free Hanging (In-Line) | Gray | ||||||||||||||||||||||

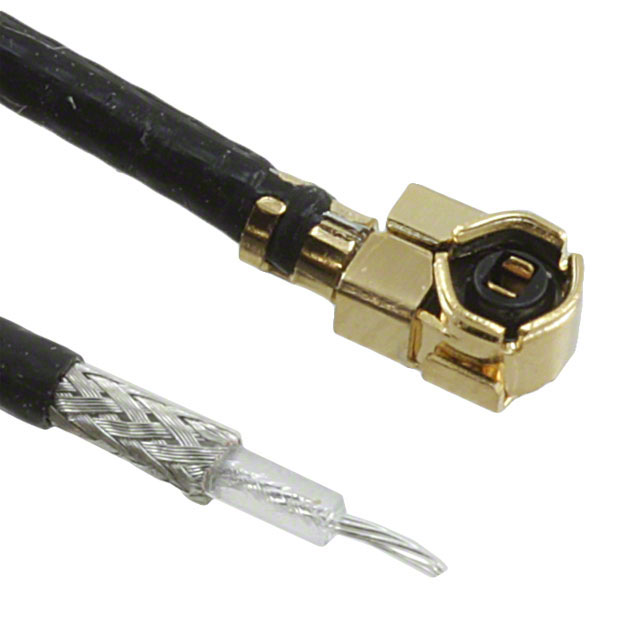

 Molex | U.FL (UMCC) to Cable | 1.13mm OD Coaxial Cable | 6.378 in | 162 mm | 50 Ohms | Female | U.FL (UMCC) Plug Right Angle | Cable (Round) | Free Hanging (In-Line) | Black | ||||||||||||||||||||||||
Molex | U.FL (UMCC) to U.FL (UMCC) | 1.32mm OD Coaxial Cable | 1.969 in | 50 mm | 50 Ohms | Female | U.FL (UMCC) Plug Right Angle | U.FL (UMCC) Plug Right Angle | Free Hanging (In-Line) | Female | Free Hanging (In-Line) | Gray |
