325-013 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 13POS 0.100
| Part | Material - Insulation | Termination Rows | Card Type | Contact Material | Gender | Number of Positions/Bay/Row | Mounting Type | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Card Thickness | Card Thickness | Read Out | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Number of Positions | Flange Feature | Color | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Copper Alloy | Female | 13 | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Cantilever | 3.18 mm | 0.125 in | Single | 1 | -65 ░C | 125 °C | Gold | 13 | Flush Mount M3 Threaded Insert Top Opening | Green | Solder |

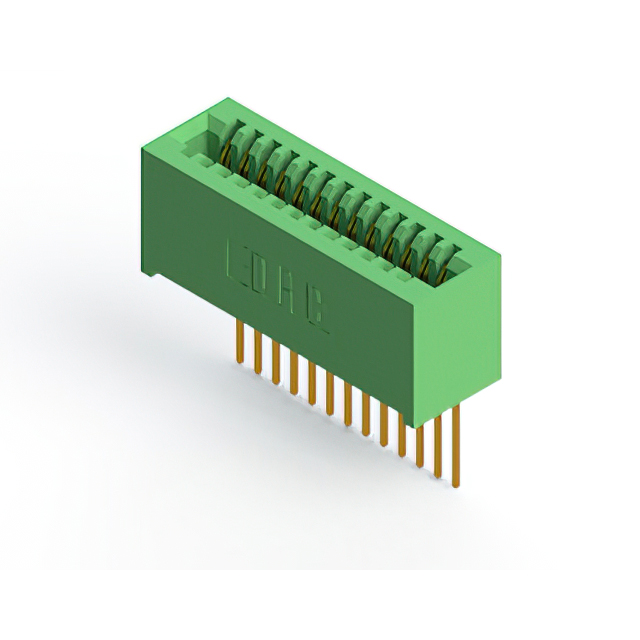

 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Copper Alloy | Female | 13 | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Cantilever | 3.18 mm | 0.125 in | Single | 1 | -65 ░C | 125 °C | Gold | 13 | Green | Wire Wrap | |

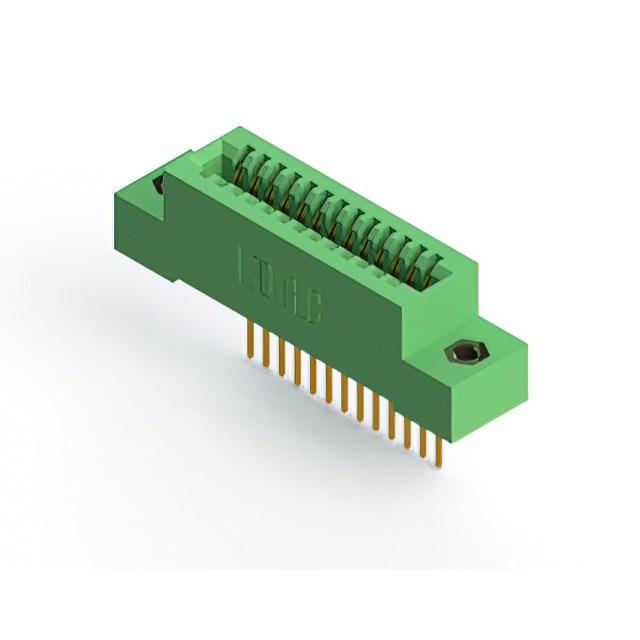

 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Copper Alloy | Female | 13 | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Cantilever | 3.18 mm | 0.125 in | Single | 1 | -65 ░C | 125 °C | Gold | 13 | Flush Mount M3 Threaded Insert Top Opening | Green | Wire Wrap |
