2801-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
TERM TURRET SNG
| Part | Terminal Type | Length - Below Flange [x] | Length - Below Flange [x] | Termination | Staking Side OD [diameter] | Staking Side OD [diameter] | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Length - Overall | Length - Overall | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Number of Turrets | Length - Above Board | Length - Above Board [x] | Staking Side ID | Staking Side ID | Mounting Type | Board Thickness [custom] | Board Thickness [custom] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

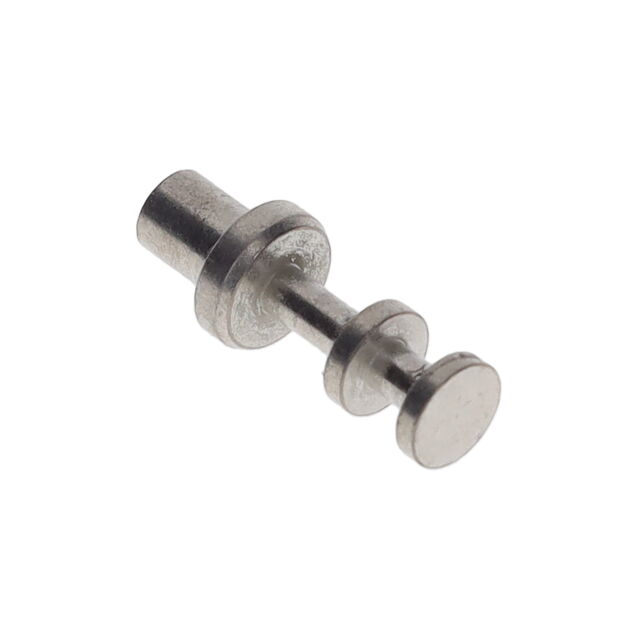

 Mill-Max Manufacturing Corp. | Single End | 3.58 mm | 0.141 " | Swage | 2.84 mm | 0.112 " | Non-Insulated | 0.187 in | 4.75 mm | 200 Áin | 5.08 Ám | 12.73 mm | 0.501 " | 0.116 in | 2.95 mm | Brass Alloy | 3.68 mm | 0.145 " | Single | 9.14 mm | 0.36 in | 0.078 in | 1.98 mm | Through Hole | 0.094 in | 2.39 mm | Tin |

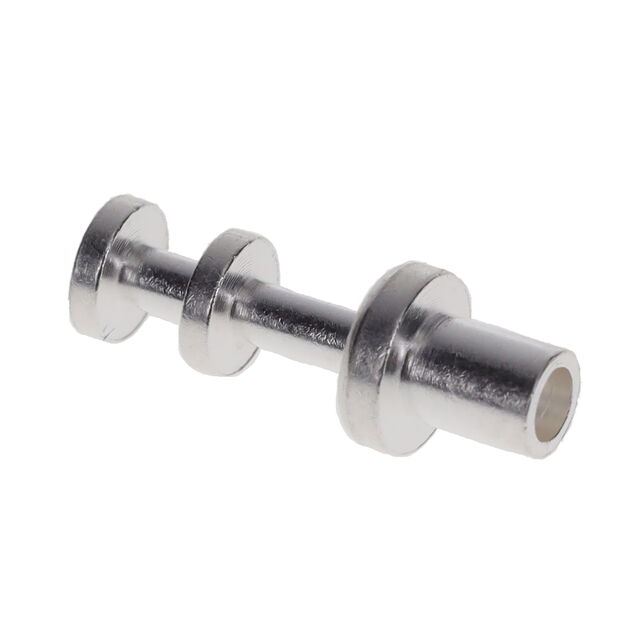

 Mill-Max Manufacturing Corp. | Single End | 3.58 mm | 0.141 " | Swage | 2.84 mm | 0.112 " | Non-Insulated | 0.187 in | 4.75 mm | 300 µin | 7.62 µm | 12.73 mm | 0.501 " | 0.116 in | 2.95 mm | Brass Alloy | 3.68 mm | 0.145 " | Single | 9.14 mm | 0.36 in | 0.078 in | 1.98 mm | Through Hole | 0.094 in | 2.39 mm | Silver |
 Mill-Max Manufacturing Corp. | Single End | 3.58 mm | 0.141 " | Swage | 2.84 mm | 0.112 " | Non-Insulated | 0.187 in | 4.75 mm | 200 Áin | 5.08 Ám | 12.73 mm | 0.501 " | 0.116 in | 2.95 mm | Brass Alloy | 3.68 mm | 0.145 " | Single | 9.14 mm | 0.36 in | 0.078 in | 1.98 mm | Through Hole | 0.094 in | 2.39 mm | Tin-Lead |
