8109 Series

Catalog

CMC 30MH 2.3A 2LN TH

Part	Height (Max) [z]	Height (Max) [z]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance @ Frequency	Mounting Type	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Number of Lines

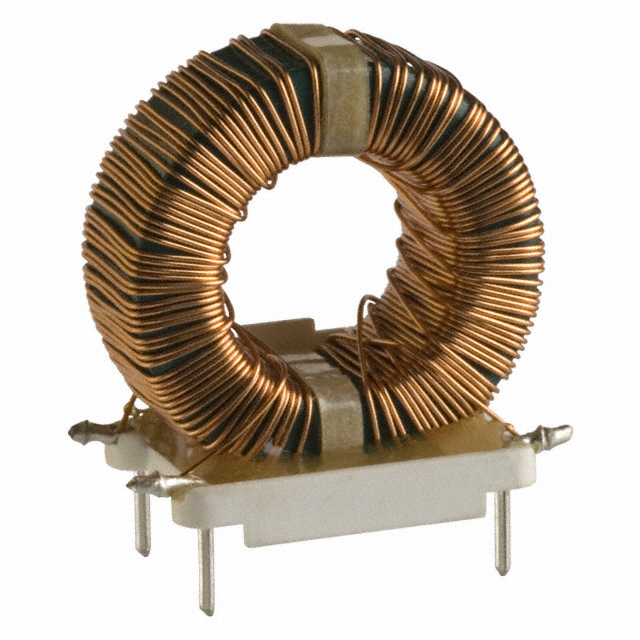

Bourns Inc. 8109-RC	1.45 in	36.83 mm	-55 C	105 ░C	Vertical 4 PC Pin	20.32 mm	1.35 in	0.8 "	34.29 mm	1 kHz 30 mH	Through Hole	2.3 A	330 mOhm	2
