TUHC-V88W Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

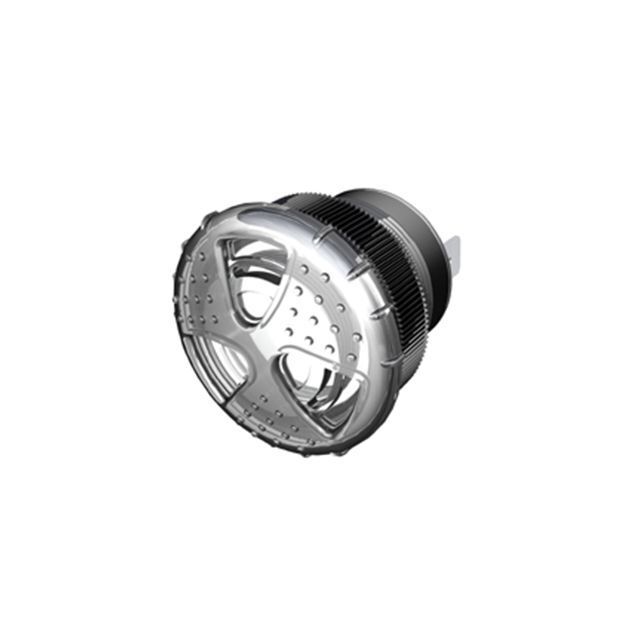

BUZZER 35.8MM PNL MNT
| Part | Termination | Termination | Termination | Ingress Protection | Sound Pressure Level (SPL) | Operating Mode | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type | Port Location | Driver Circuitry | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Frequency | Approval Agency | Voltage Range [Max] | Voltage Range [Min] | Input Type | Current - Supply [Max] | Current - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Quick Connect Tab | 0.25 " | 6.35 mm | IP68 - Dust Tight Waterproof | 103 dB | Single Tone | 35.8 mm | 1.409 in | Panel Mount | Top | Indicator Internally Driven | 1.25 " | 31.75 mm | 3 kHz | UL UR | 30 V | 9 V | DC | 125 mA | 65 mA |
