337-054 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 54POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Number of Rows [custom] | Mounting Type | Flange Feature | Termination | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Color | Contact Material | Read Out | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Gender | Card Type | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

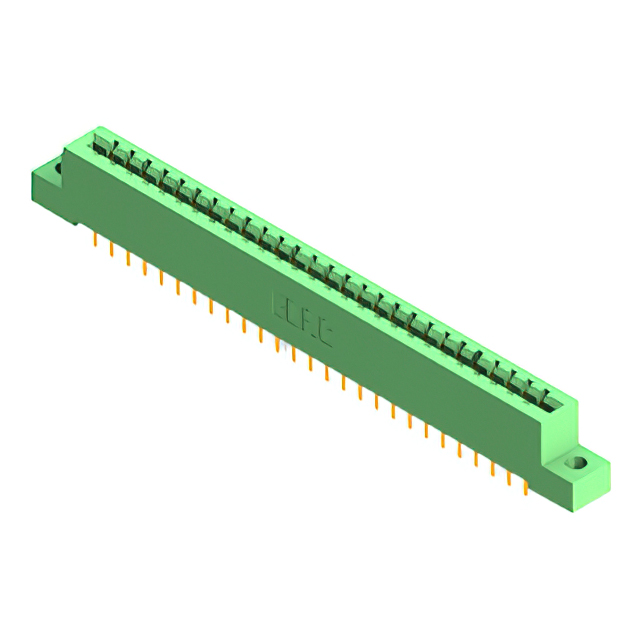

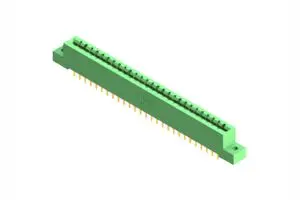

 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Through Hole | M3 Threaded Insert Top Mount Opening | Solder | 54 | -40 C | 105 ░C | 27 | Green | Copper Alloy | Dual | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Female | Non Specified - Dual Edge | Cantilever | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Right Angle Through Hole | Floating Bobbin Top Mount Opening | Wire Wrap | 54 | -40 C | 105 ░C | 27 | Green | Copper Alloy | Dual | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Female | Non Specified - Dual Edge | Cantilever | 0.116 " | 2.95 mm | |

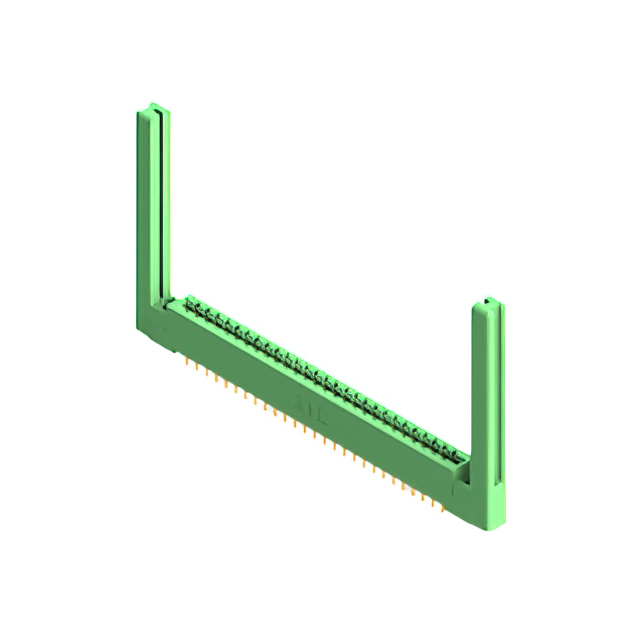

 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Board Edge Straddle Mount | Solder | 54 | -40 C | 105 ░C | 27 | Green | Copper Alloy | Dual | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Female | Non Specified - Dual Edge | Cantilever | Card Extender | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Through Hole | Floating Bobbin Top Mount Opening | Solder | 54 | -40 C | 105 ░C | 27 | Green | Copper Alloy | Dual | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Female | Non Specified - Dual Edge | Cantilever | 0.116 " | 2.95 mm | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Through Hole | Flush Mount Top Opening Unthreaded | Wire Wrap | 54 | -40 C | 105 ░C | 27 | Green | Copper Alloy | Dual | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Female | Non Specified - Dual Edge | Cantilever | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Through Hole | M3 Threaded Insert Top Mount Opening | Solder Eyelet(s) | 54 | -40 C | 105 ░C | 27 | Green | Copper Alloy | Dual | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Female | Non Specified - Dual Edge | Cantilever | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Through Hole | Flush Mount Top Opening Unthreaded | Solder | 54 | -40 C | 105 ░C | 27 | Green | Copper Alloy | Dual | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Female | Non Specified - Dual Edge | Cantilever | 0.156 " | 3.96 mm | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Board Edge Straddle Mount | 4-40 Threaded Insert Top Mount Opening | Solder Eyelet(s) | 54 | -40 C | 105 ░C | 27 | Green | Copper Alloy | Dual | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Female | Non Specified - Dual Edge | Cantilever | Card Extender | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 54 | -40 C | 105 ░C | 27 | Green | Copper Alloy | Dual | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Female | Non Specified - Dual Edge | Cantilever | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Through Hole | M3 Threaded Insert Top Mount Opening | Wire Wrap | 54 | -40 C | 105 ░C | 27 | Green | Copper Alloy | Dual | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Female | Non Specified - Dual Edge | Cantilever |
